All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART ACCESS (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Entry Cancel SW	Entry door lock function cancel / ON or OFF	Mode status displayed	-

   Result

   Result	Proceed to
   Entry function is ON	A
   Entry function is OFF	B

A → See step   7

B: Go to next step

1. Move the electrical key transmitter as described below and perform the operation inspection.

   HINT:

   • When the electrical key transmitter is brought near the door outside handle assembly or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • The transmitting waves of the wireless functions and entry functions are the same, but the wave logic is different. Therefore, it is possible that only the wireless functions or only the entry functions are affected by wave interference.

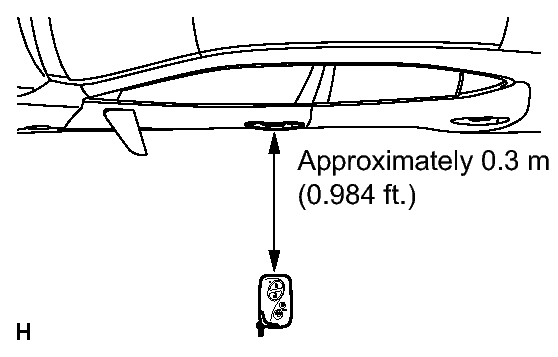

2. Bring the electrical key transmitter near the driver door outside handle assembly, and perform a front driver door entry lock and unlock operation check.
   Fig 1: Identifying Front Door Outside Handle Assembly Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

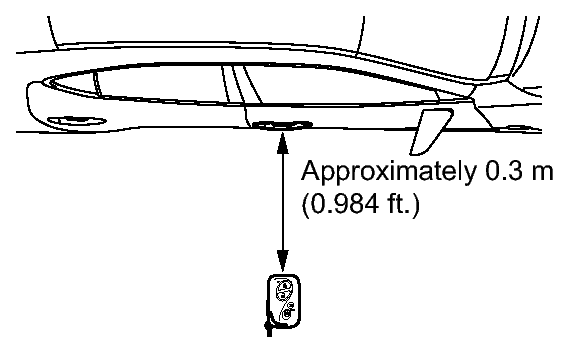

3. Bring the electrical key transmitter near the front passenger door outside handle assembly, and perform a front passenger door entry lock and unlock operation check.
   Fig 2: Identifying Front Passenger Door Entry Lock Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

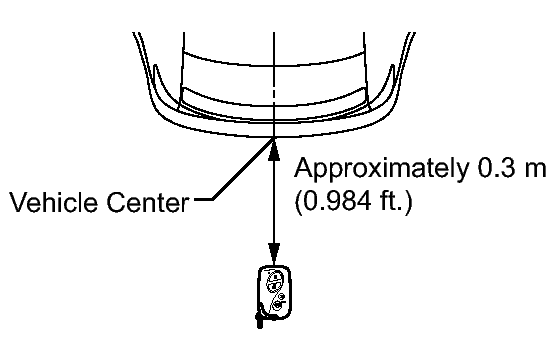

4. Bring the electrical key transmitter near the outside electrical key oscillator (luggage compartment), and perform an entry luggage compartment door open function check.
   Fig 3: Identifying Front Passenger Door Entry Lock Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication is not possible.

   HINT:

   If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   Result	Proceed to
   Some operation checks are normal	A
   All operation checks fail	B

A → AFFECTED BY WAVE INTERFERENCE

B: Go to next step

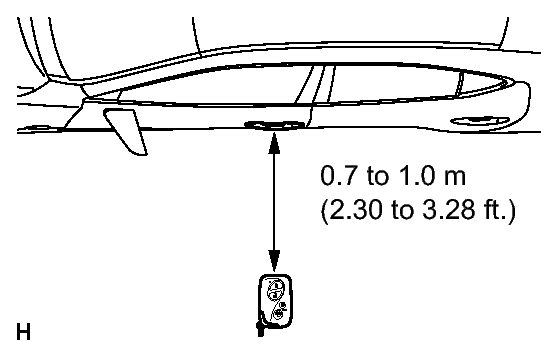

1. Diagnostic mode inspection (door electrical key oscillator (driver side))
   Fig 4: Identifying Door Electrical Key Oscillator Clearance (Driver Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Driver Side.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

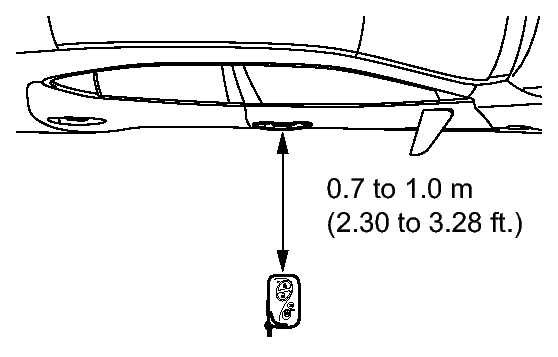

2. Diagnostic mode inspection (door electrical key oscillator (front passenger side))
   Fig 5: Identifying Door Electrical Key Oscillator Clearance (Front Passenger Side Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Passenger Side.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

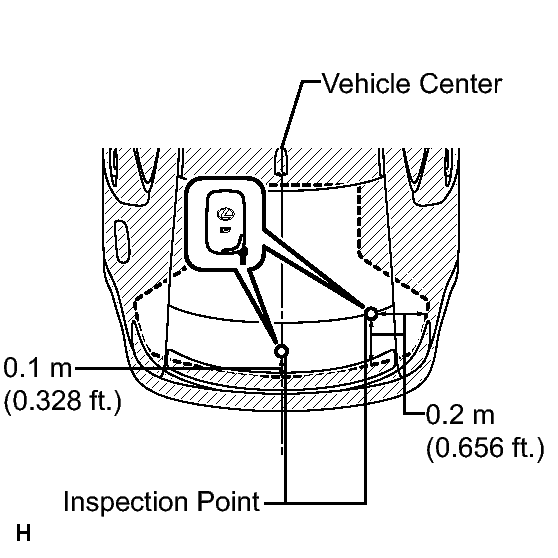

3. Diagnostic mode inspection (indoor electrical key oscillator (front floor))
   Fig 6: Inspecting Ignition Operation Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Front Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

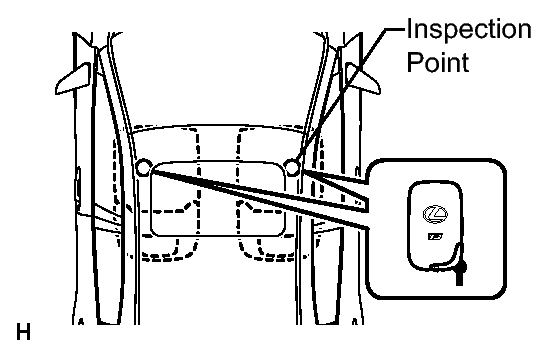

4. Diagnostic mode inspection (indoor electrical key oscillator (rear floor))
   Fig 7: Inspecting Ignition Operation Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Rear Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

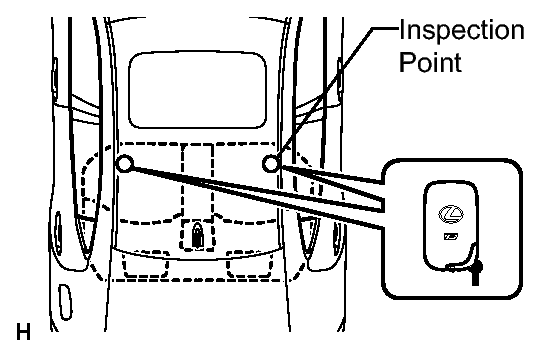

5. Diagnostic mode inspection (indoor electrical key oscillator (luggage compartment))
   Fig 8: Inspecting Key Lock-In Prevention's Detection

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Utility / Smart Access / Communication Check (Key Diag mode) / Overhead + Luggage (inside).
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

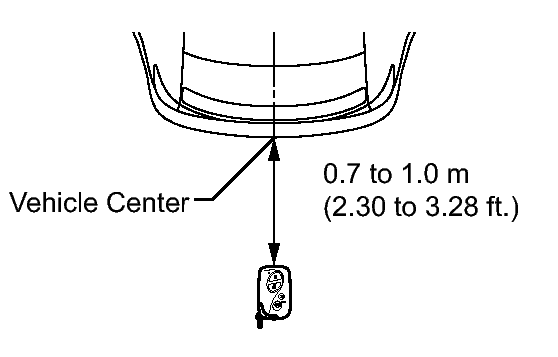

6. Diagnostic mode inspection (outside electrical key oscillator (luggage compartment))
   Fig 9: Identifying Outside Electrical Key Oscillator Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Luggage (outside).
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      Result

      Result	Proceed to
      Some diagnostic mode inspections fail (door)	A
      Some diagnostic mode inspections fail (interior)	B
      Some diagnostic mode inspections fail (luggage compartment)	C
      All diagnostic mode inspections are normal	D
      All diagnostic mode inspections fail	E

D → See step   11

C → See step   10

B → See step   9

A → See step   8

E: Go to next step

1. Replace the electrical key transmitter.

NEXT: Go to next step

1. Register the electrical key transmitter. Refer to REGISTRATION .

NEXT: Go to next step

1. Check that the entry functions operate normally. Refer to OPERATION CHECK .

   OK

   Entry functions operate normally.

NG → See step   12

OK → END (ELECTRICAL KEY TRANSMITTER IS DEFECTIVE)
