Intake Manifold: Components: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

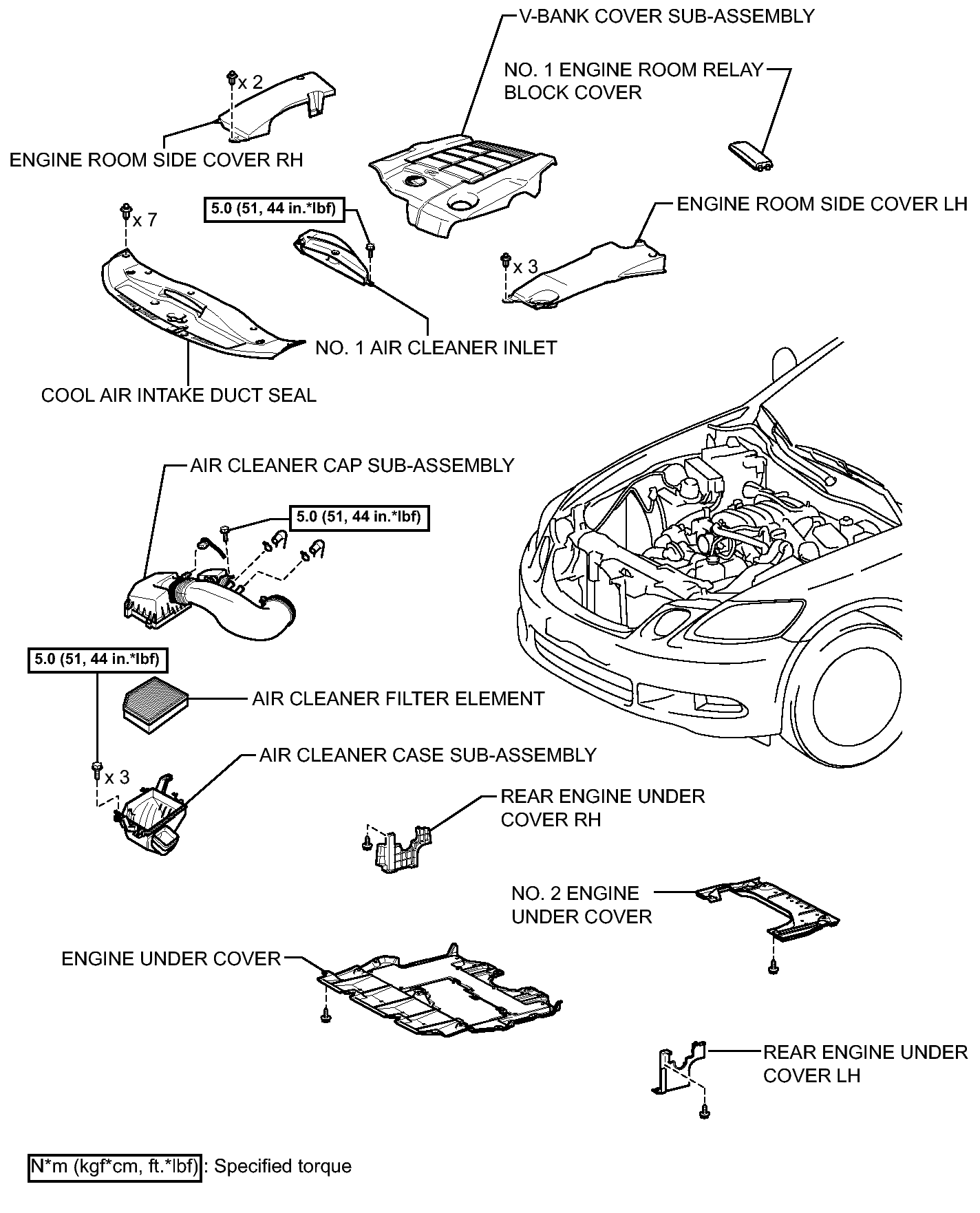

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (4 Of 6)

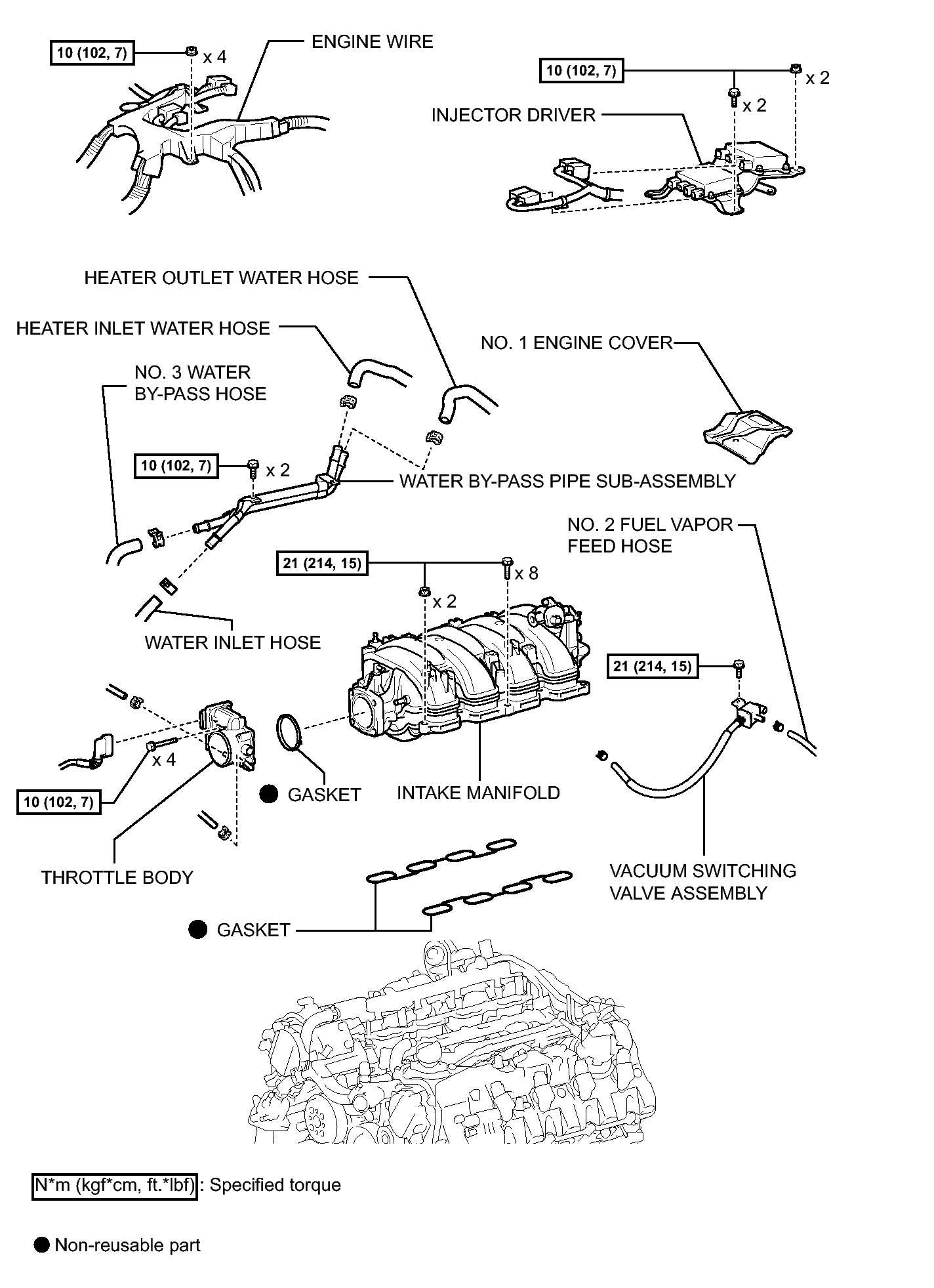

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (5 Of 6)

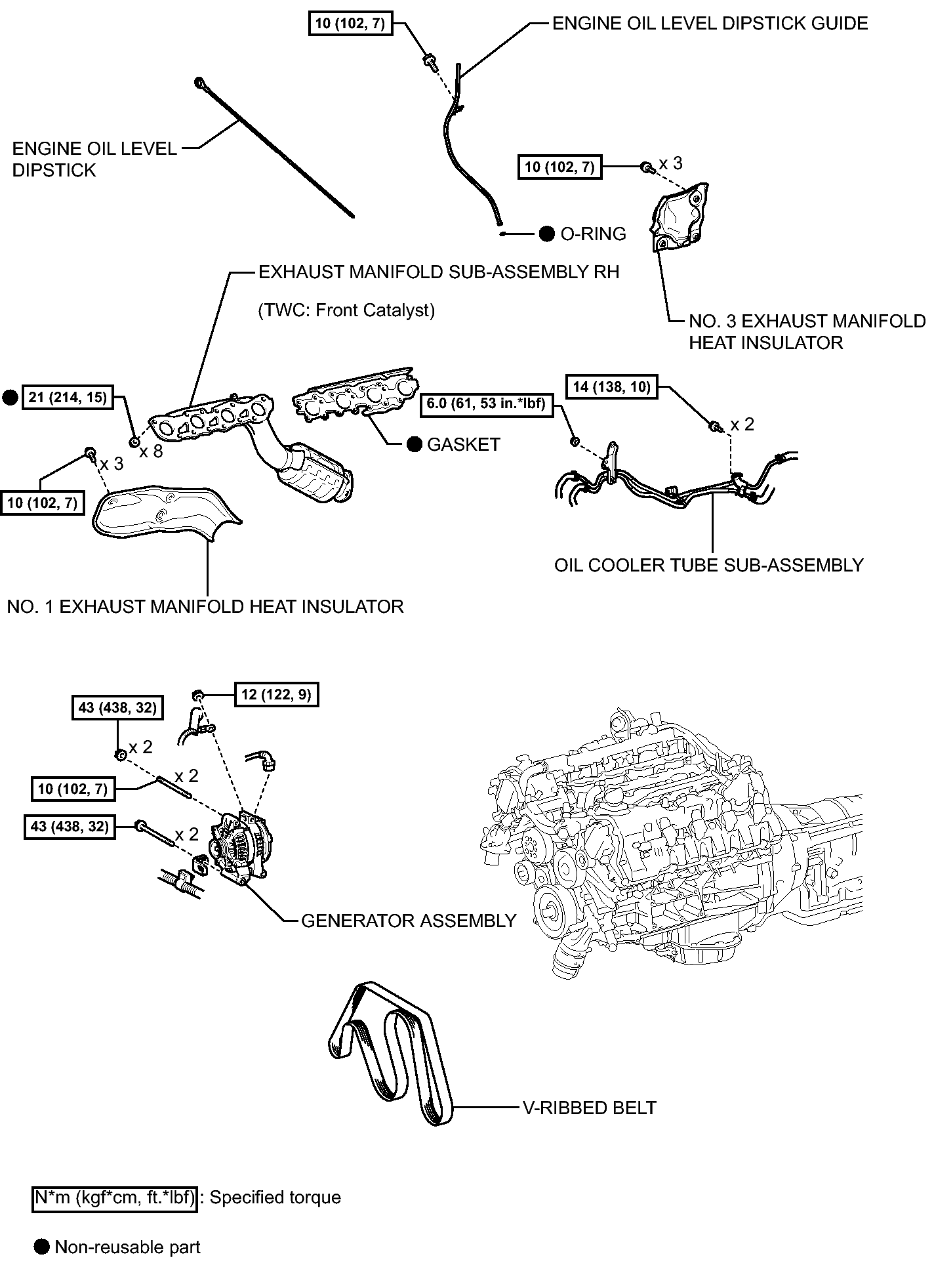

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (6 Of 6)
