Injector Driver: Removal: Removal

REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE NO. 1 INLET AIR CLEANER . Refer to REMOVAL - Step 27
REMOVE NO. 1 ENGINE COVER . Refer to REMOVAL - Step 4
REMOVE INJECTOR DRIVER

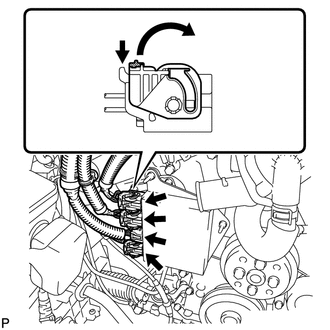

1. Move the lock levers in the direction indicated by the arrow to release the 3 connector locks. Disconnect the 4 connectors from the injector driver.

  Fig 1: Identifying Injector Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, 2 nuts and injector driver.

  Fig 2: Identifying Injector Driver Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to drop or strike the injector driver.
