Fuel Pump: Components: Illustration

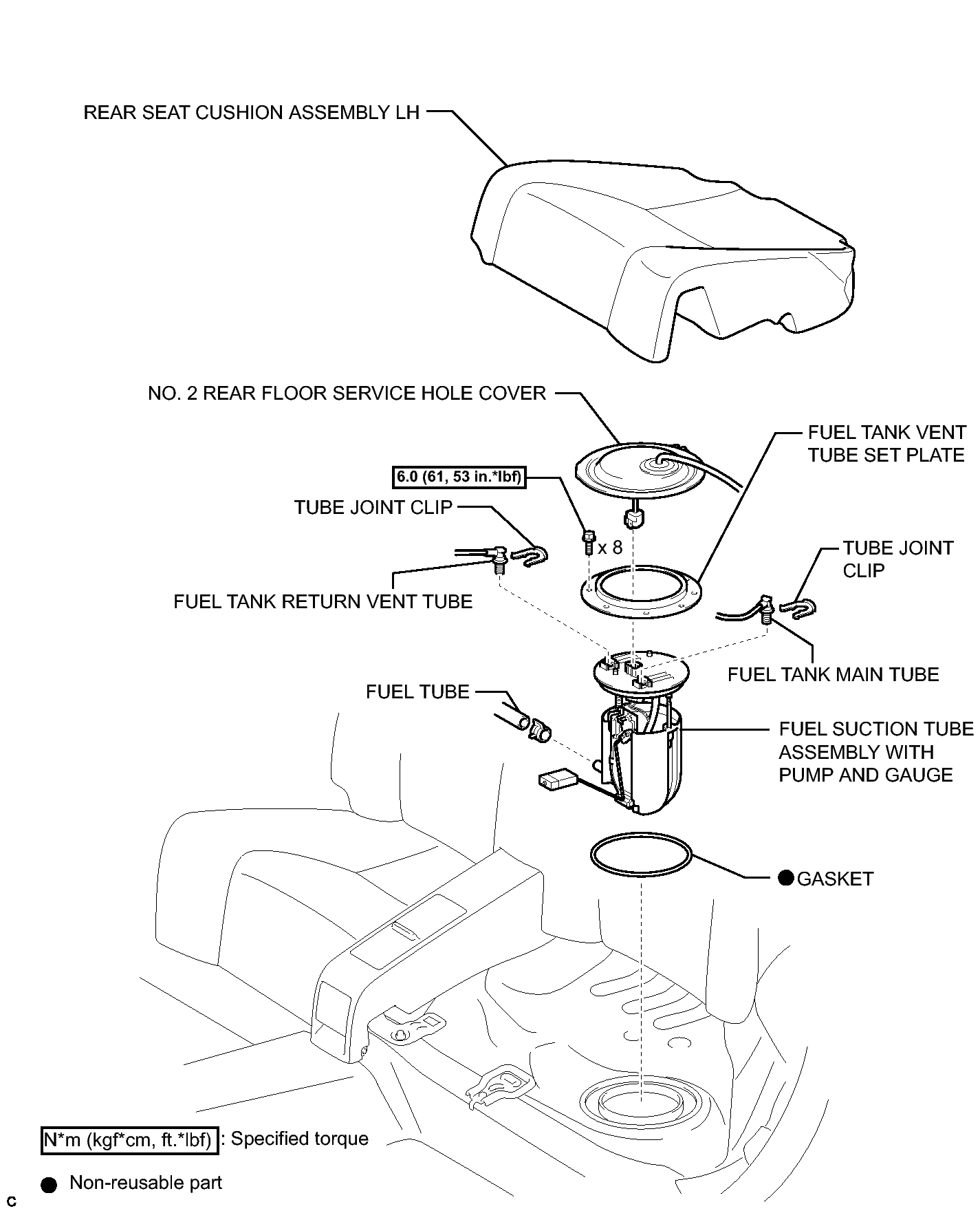

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
GTY254275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

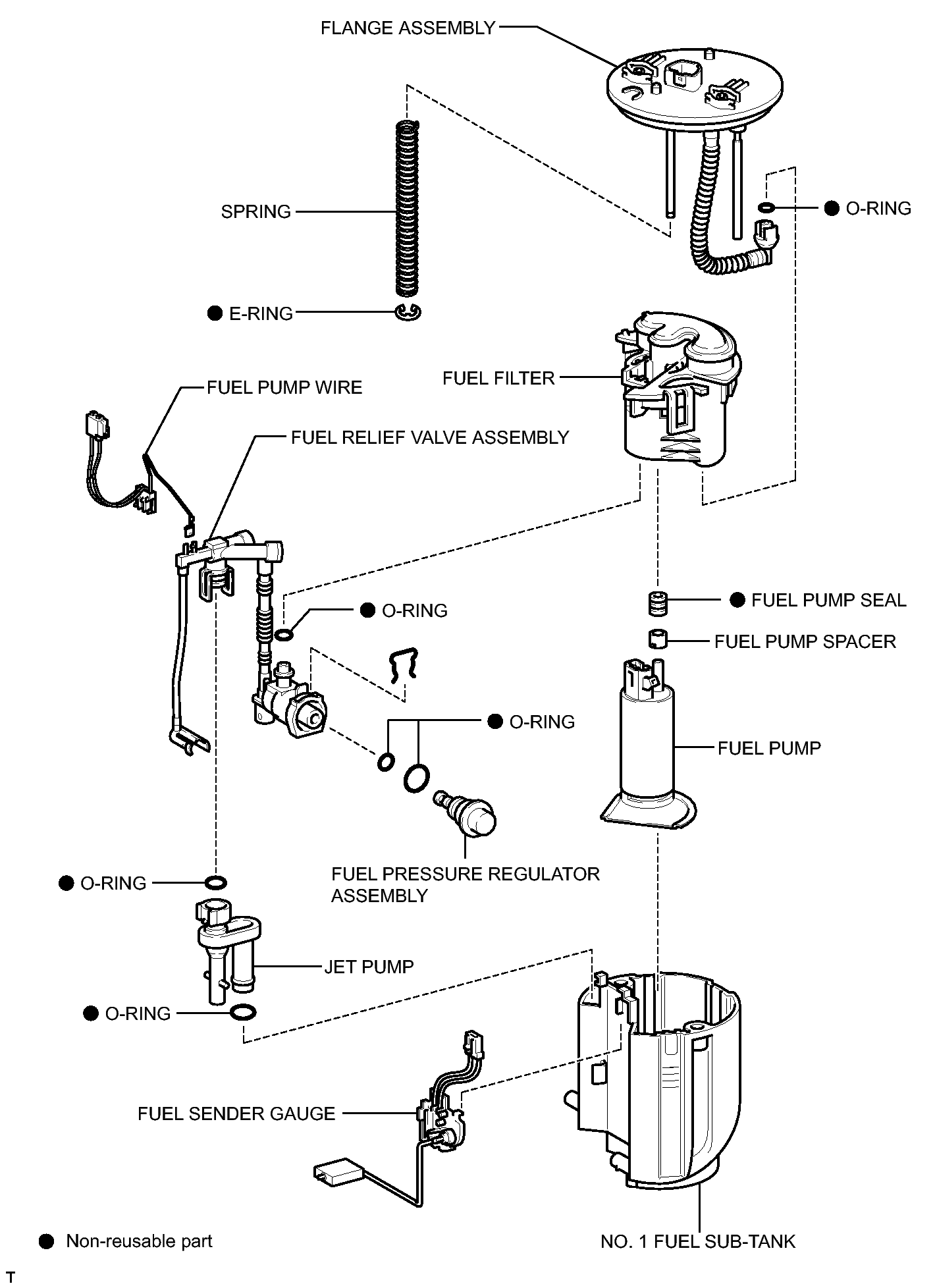

Fig 1: Identifying Fuel Pump Replacement Components (2 Of 2)
GTY269584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
