Fuel Injector (For Direct Injection): Components: Illustration

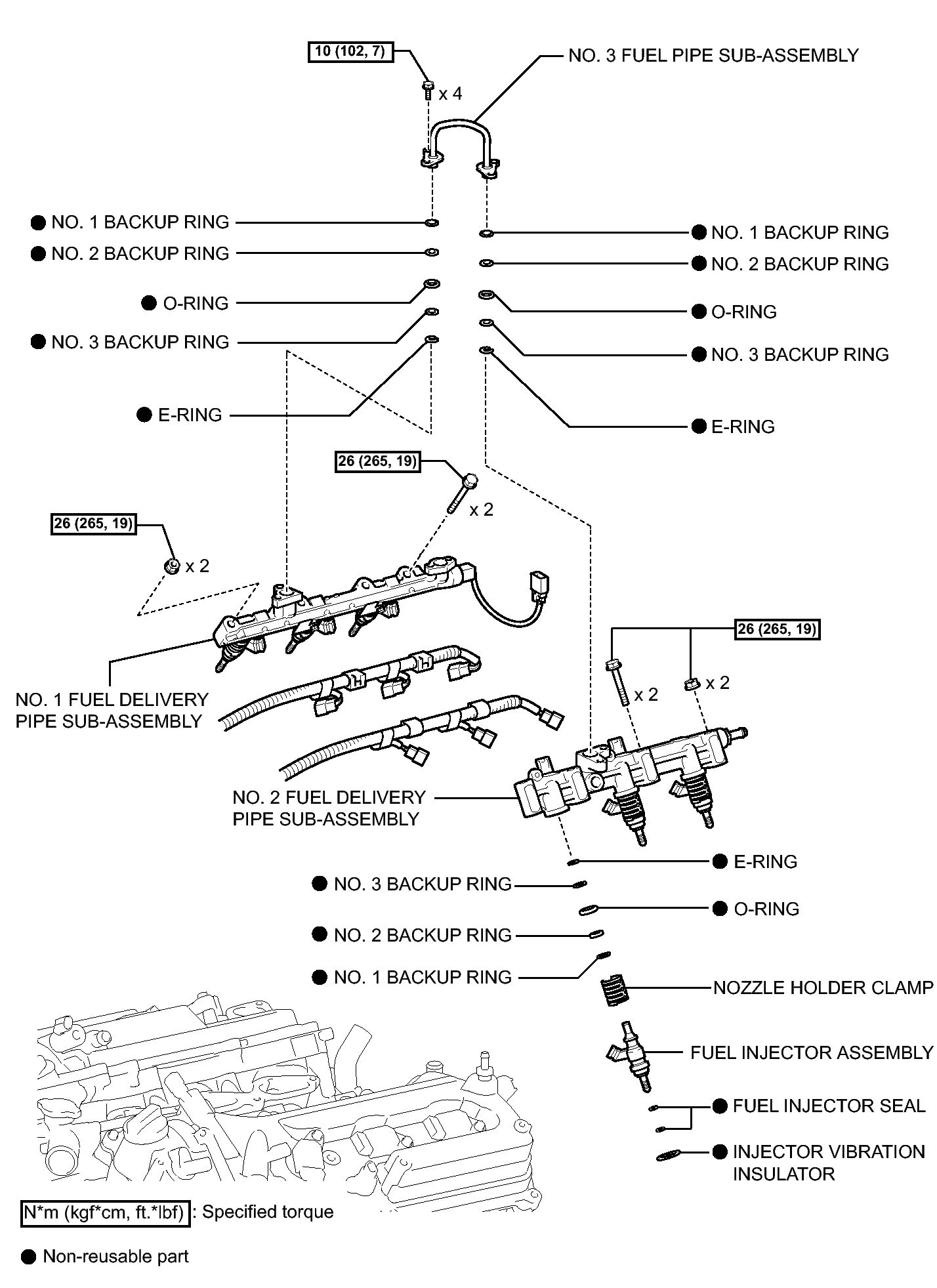

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
