Power Seat (Front RH Seat w/o Seat Position Memory): Notes

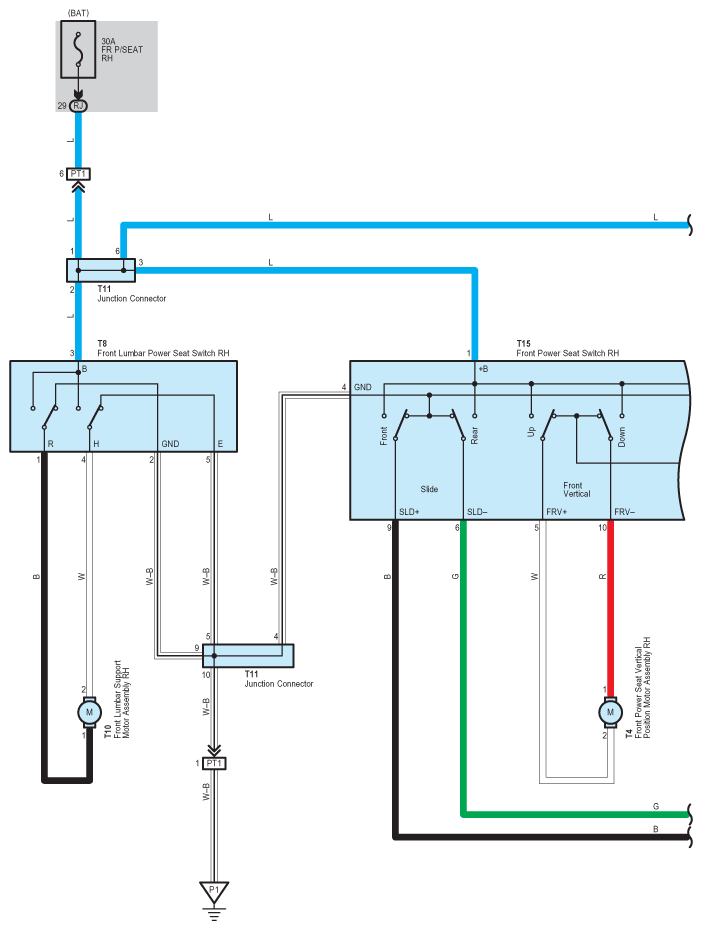

Fig 1: Power Seat (Front Rh Seat W/O Seat Position Memory) - Circuit Diagram (1 Of 2)
G07567337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Seat (Front Rh Seat W/O Seat Position Memory) - Circuit Diagram (2 Of 2)
G07567338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
