Shift Lever Assembly: Components: Illustration

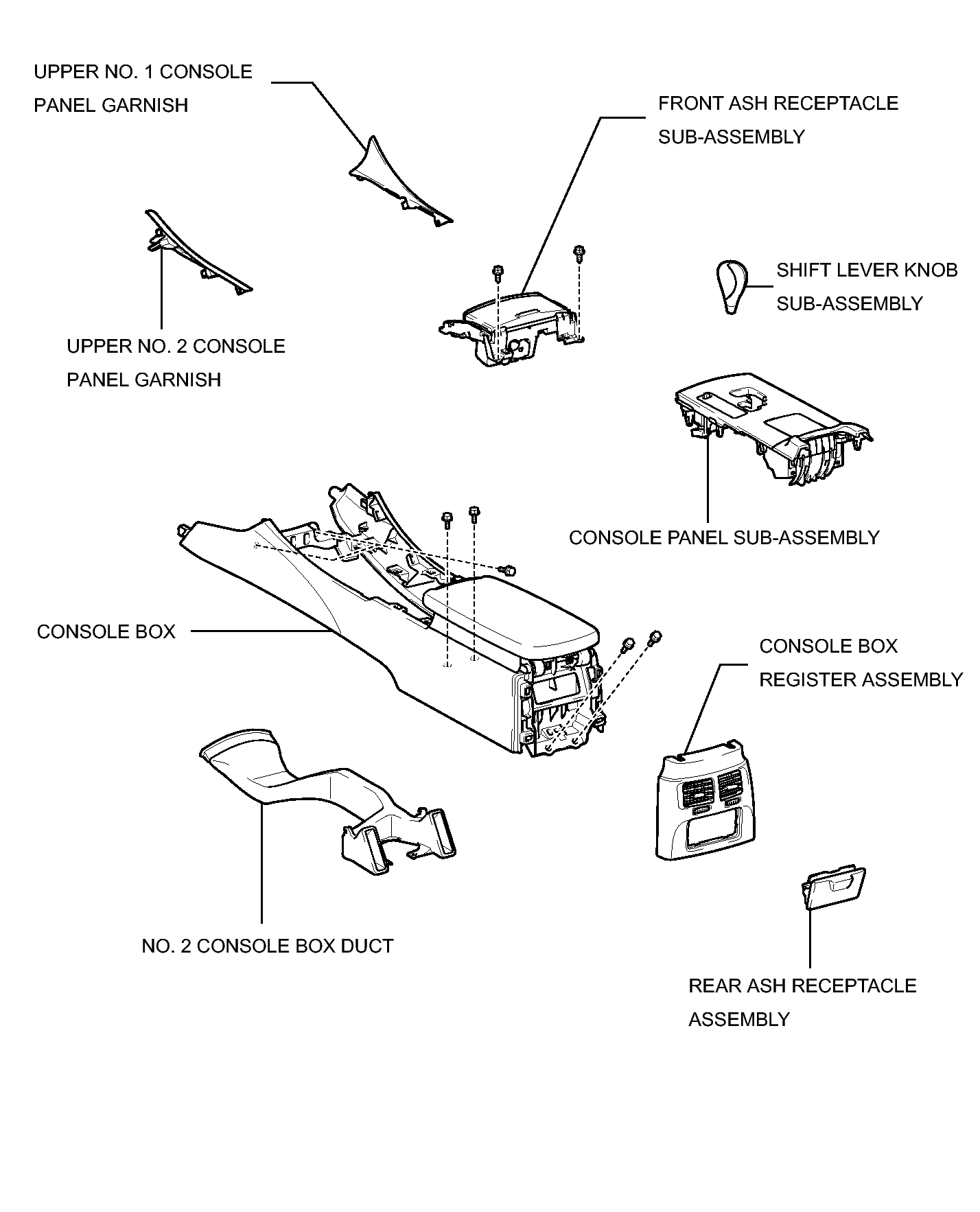

Fig 1: Identifying Shift Lever Assembly Replacement Components (1 Of 4)
GTY132543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Shift Lever Assembly Replacement Components (2 Of 4)
GTY124393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

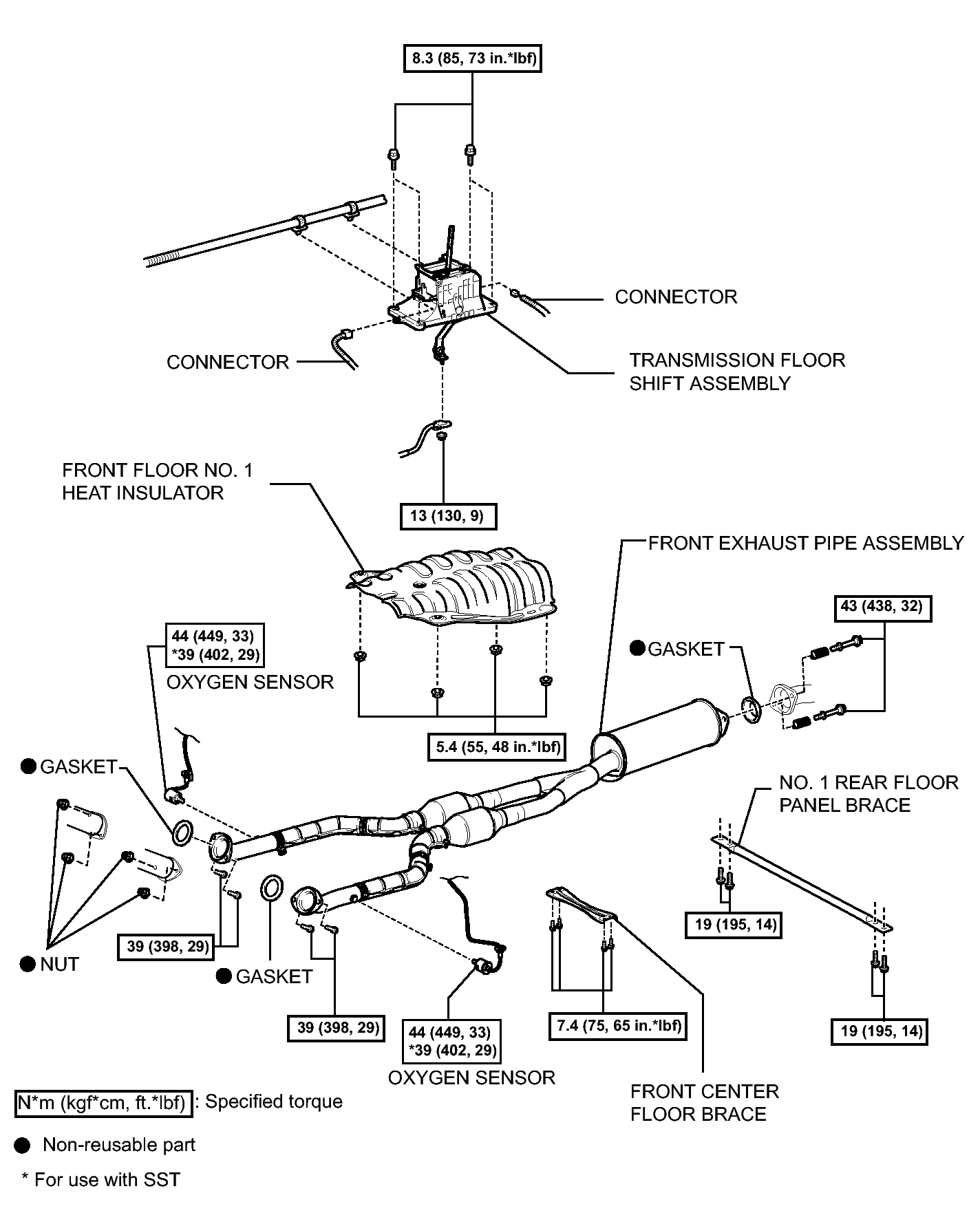

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY112618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

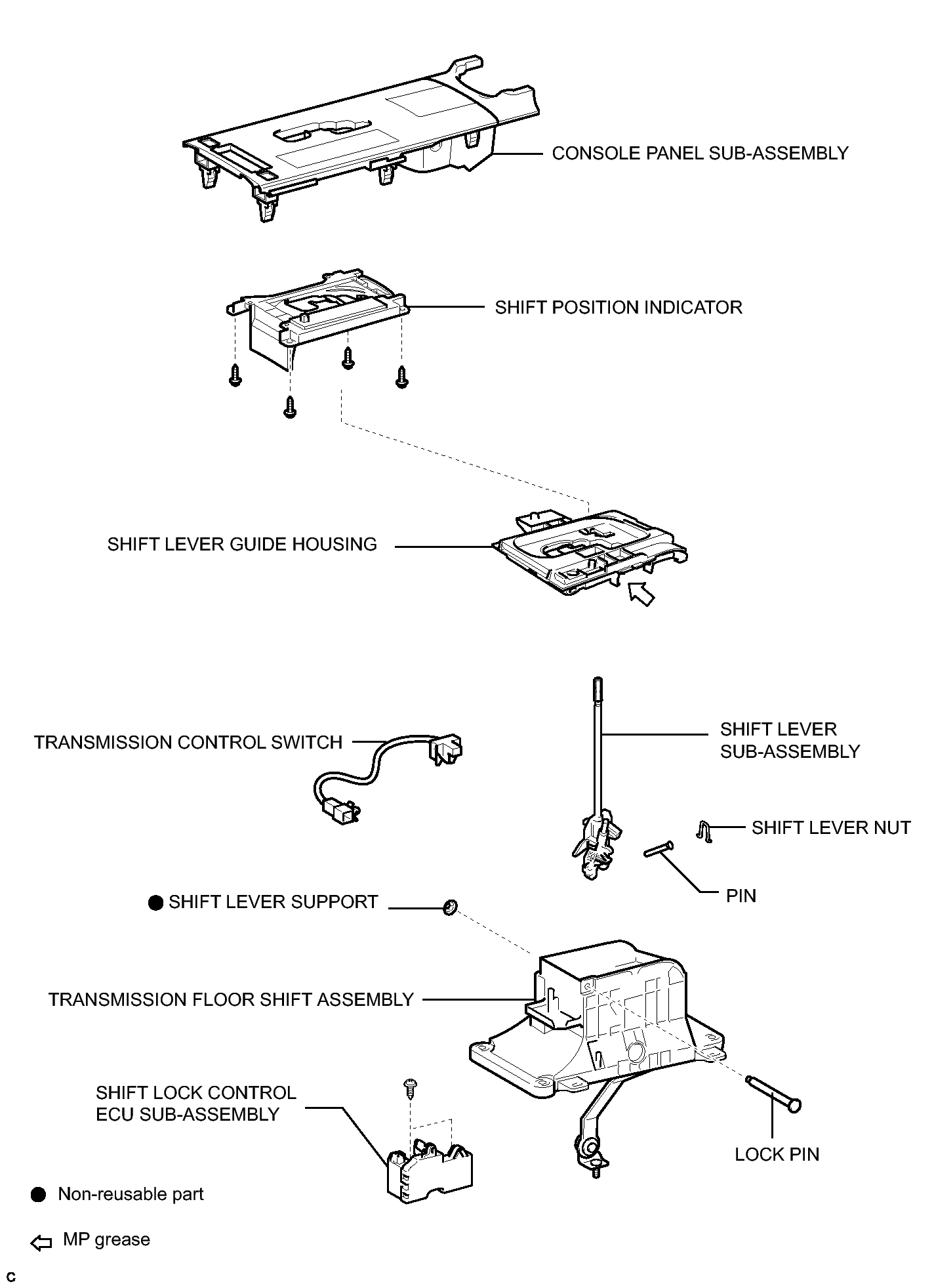

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specifications (4 Of 4)
GTY113077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
