Pattern Select Switch Power Mode Circuit: Wiring Diagram

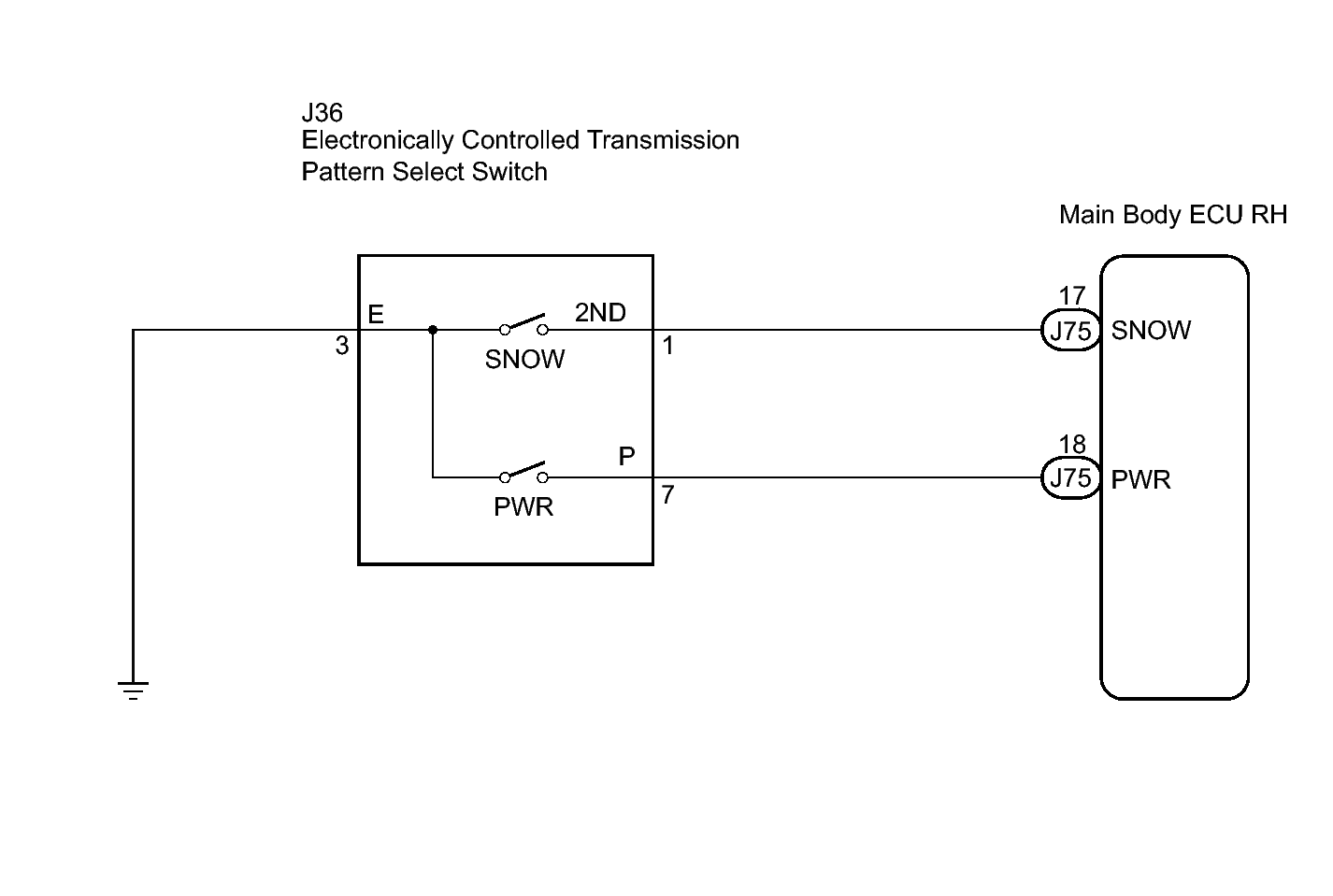

Fig 1: Wiring Diagram - Pattern Select Switch Power Mode Circuit

GTY131215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
