MULTI-DISPLAY (w/ Navigation System): Components: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 460 and 2010 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

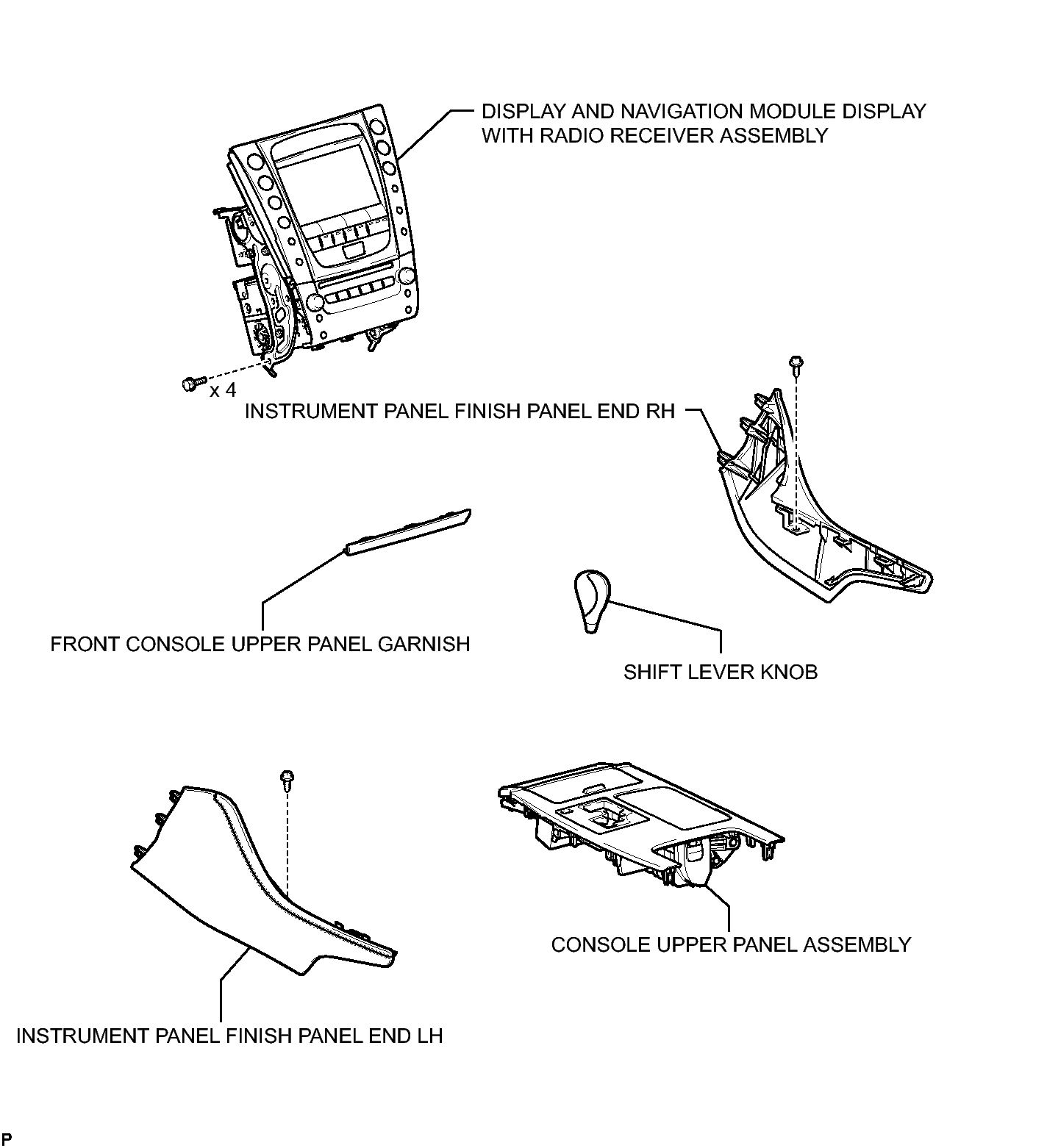

Fig 1: Multi-Display (w/ Navigation System) Replacement Components (1 Of 2)
GTY279992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

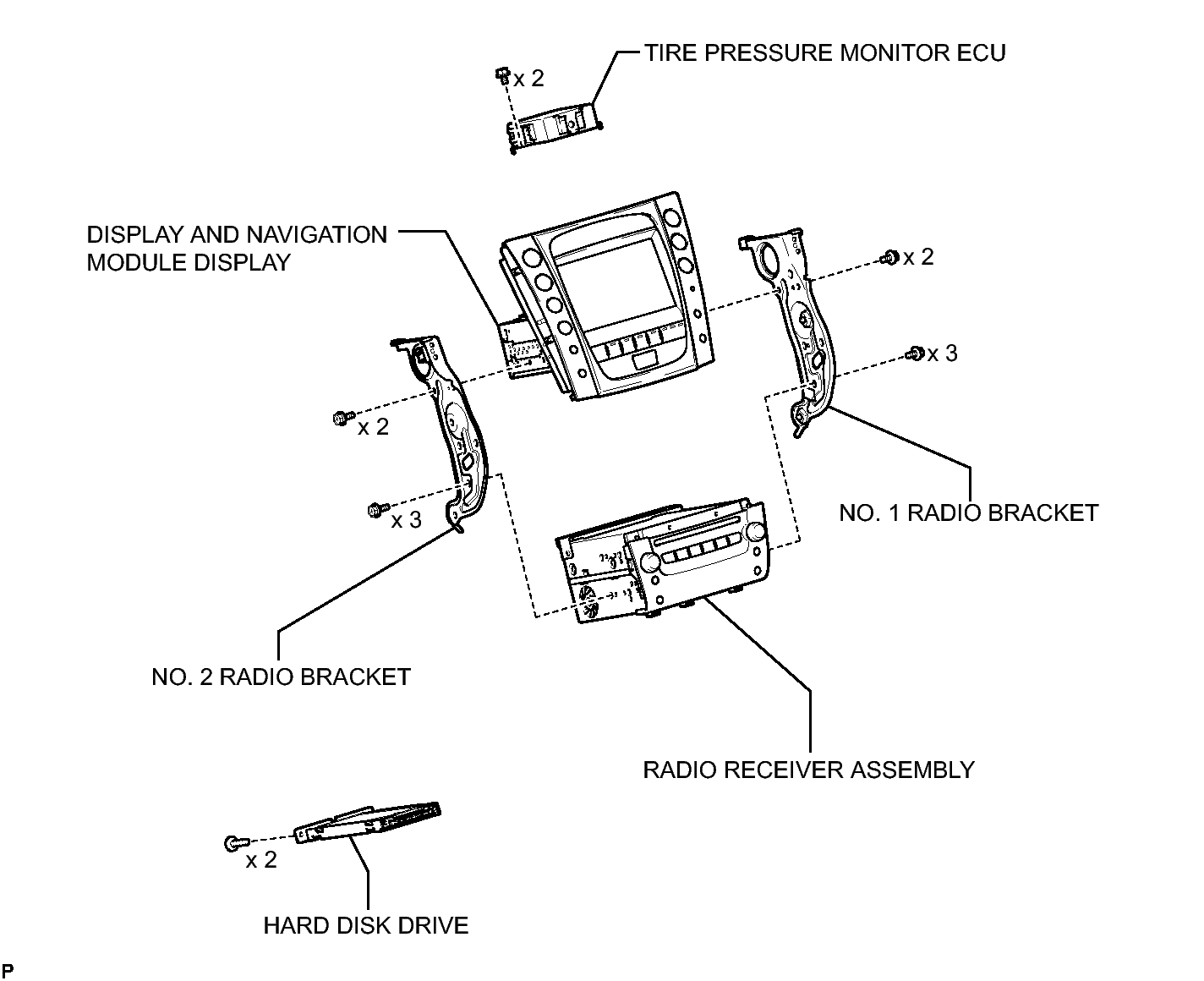

Fig 2: Multi-Display (w/ Navigation System) Replacement Components (2 Of 2)
GTY254042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
