Only Wireless Control Function is Inoperative: Wiring Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 460 and 2010 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

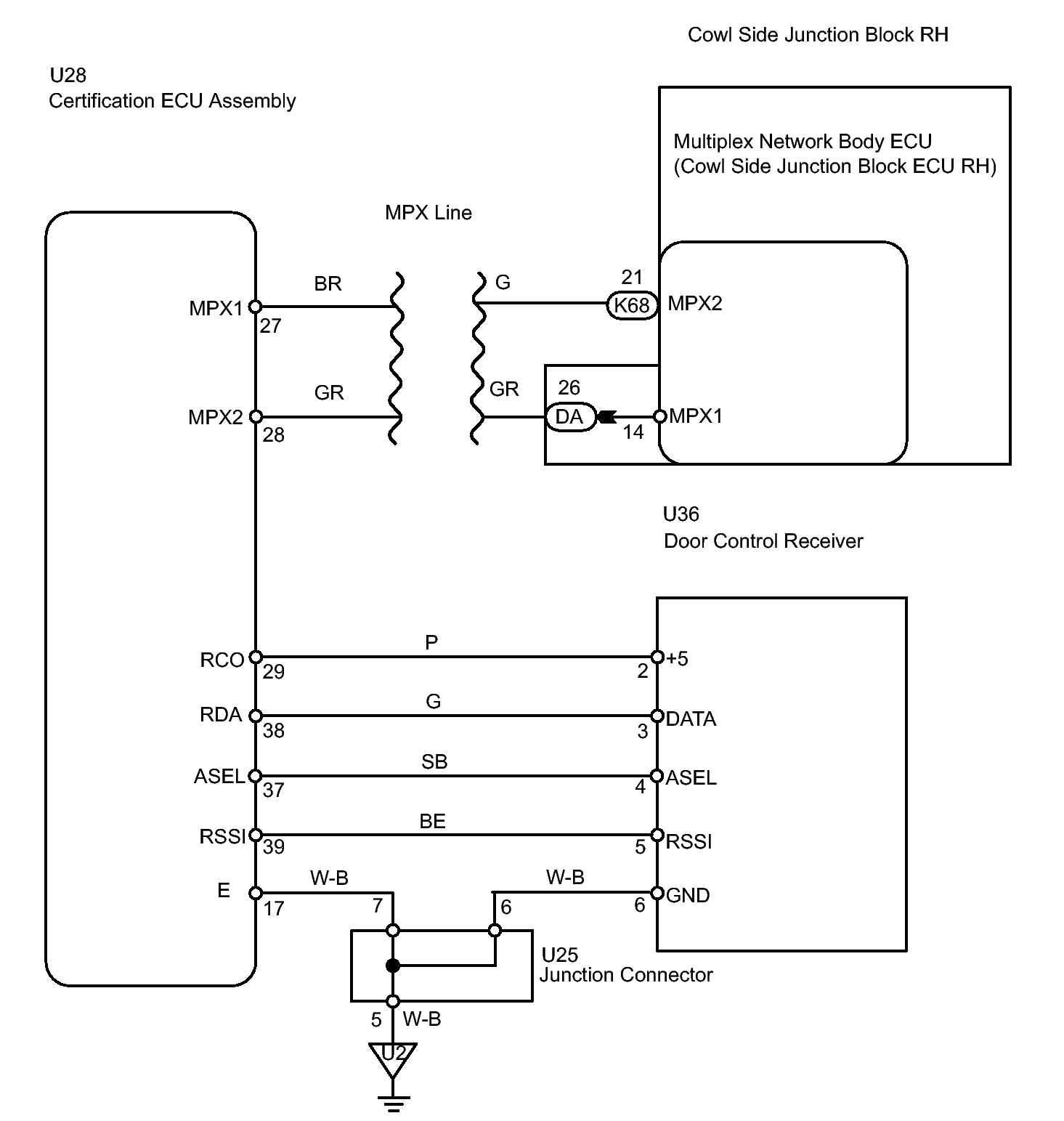

Fig 1: Identifying Door Control Receiver - Wiring Diagram
GTY100517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
