Rear Active Stabilizer Control Ecu: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 460 and 2010 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR ACTIVE STABILIZER CONTROL ECU
1. Using the procedures below, connect the 2 ECU connectors.

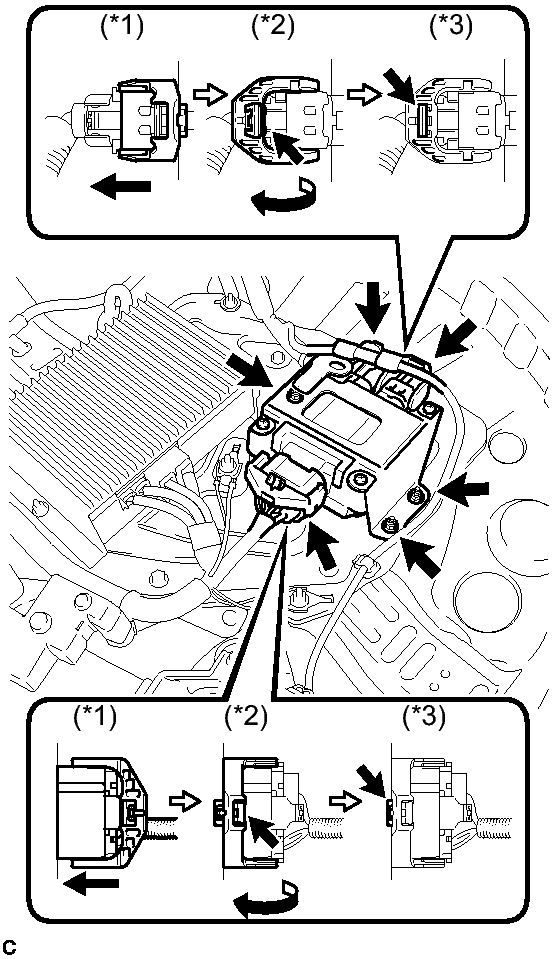

  Fig 1: Locating Rear Active Stabilizer Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the ECU connector. (*1)
  2. Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
  3. Lock the lever's lock. (*3)
2. Install the ECU with the 3 nuts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
3. Connect the harness clamp to the rear active stabilizer control ECU.

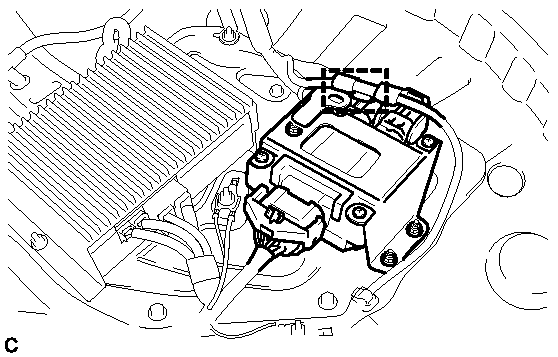

  Fig 2: Identifying Rear Active Stabilizer Control ECU And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACTIVE STABILIZER CONVERTER COVER
INSTALL TOOL BOX . Refer to INSTALLATION - Step 6
INSTALL TOOL BOX BOARD
INSTALL LUGGAGE COMPARTMENT FLOOR MAT . Refer to INSTALLATION - Step 8
INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE LH
INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
