Integration Control And Panel: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

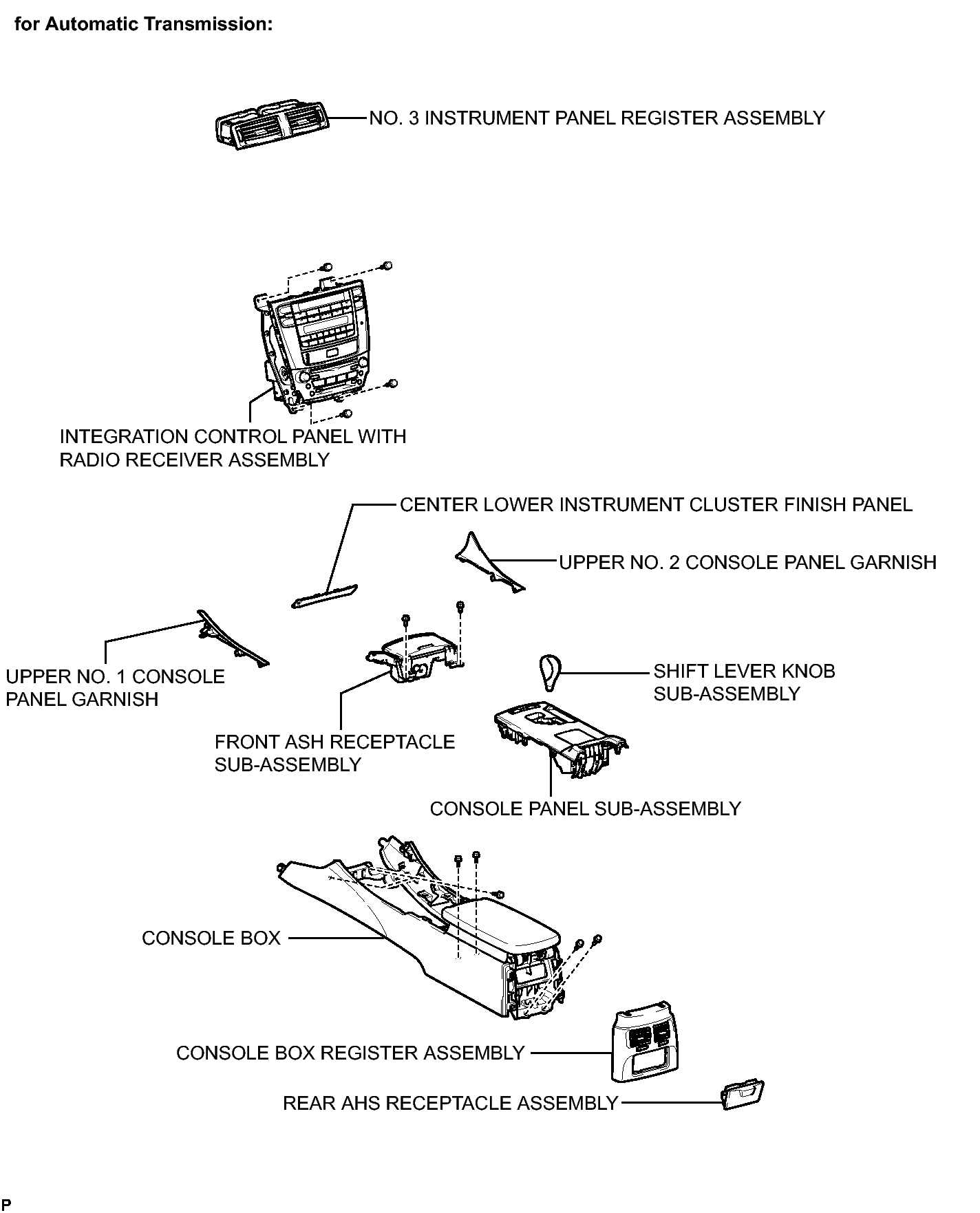

Fig 1: Identifying Integration Control And Panel Replacement Components (1 Of 3)
GTY150845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

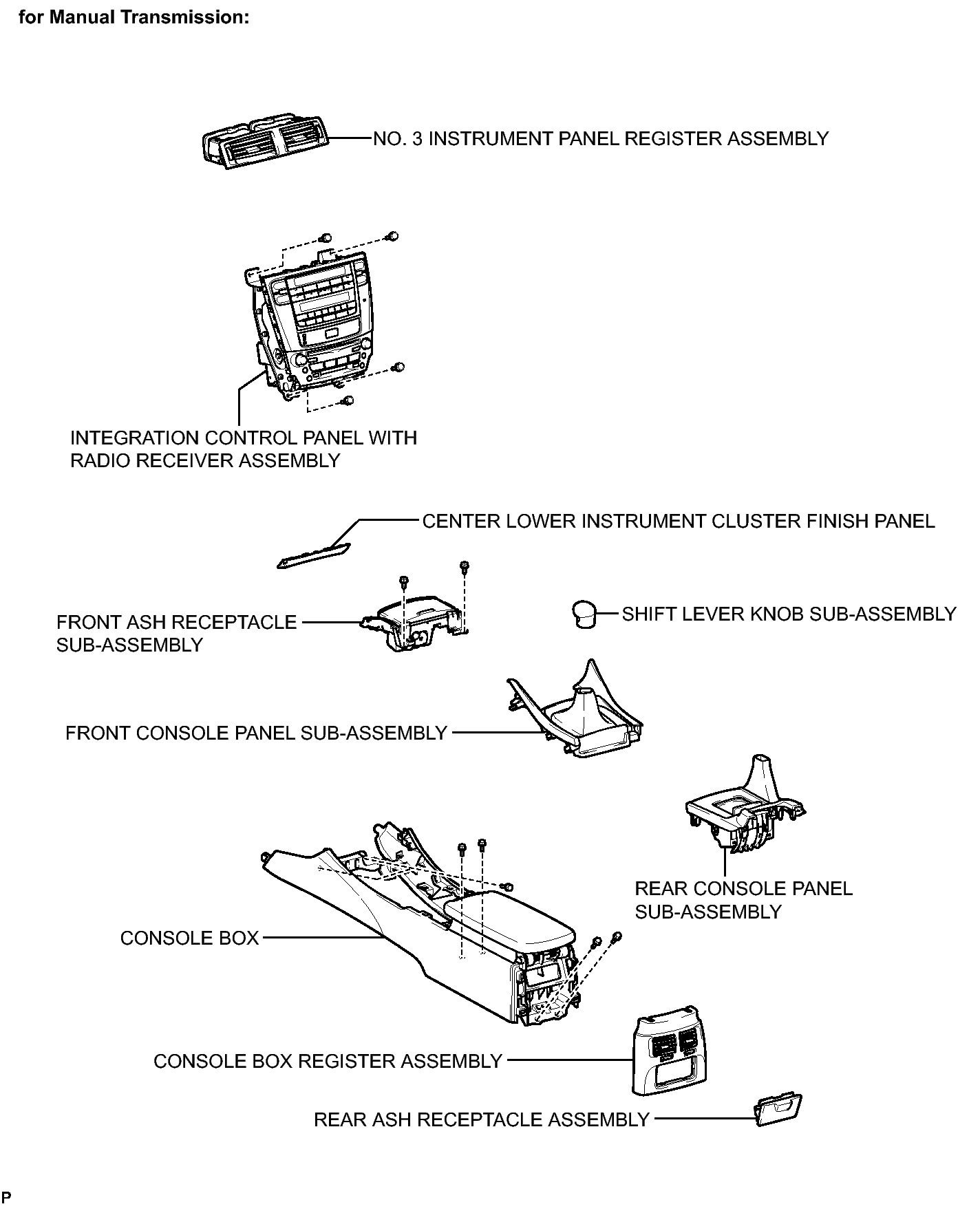

Fig 1: Identifying Integration Control And Panel Replacement Components (2 Of 3)
GTY150844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

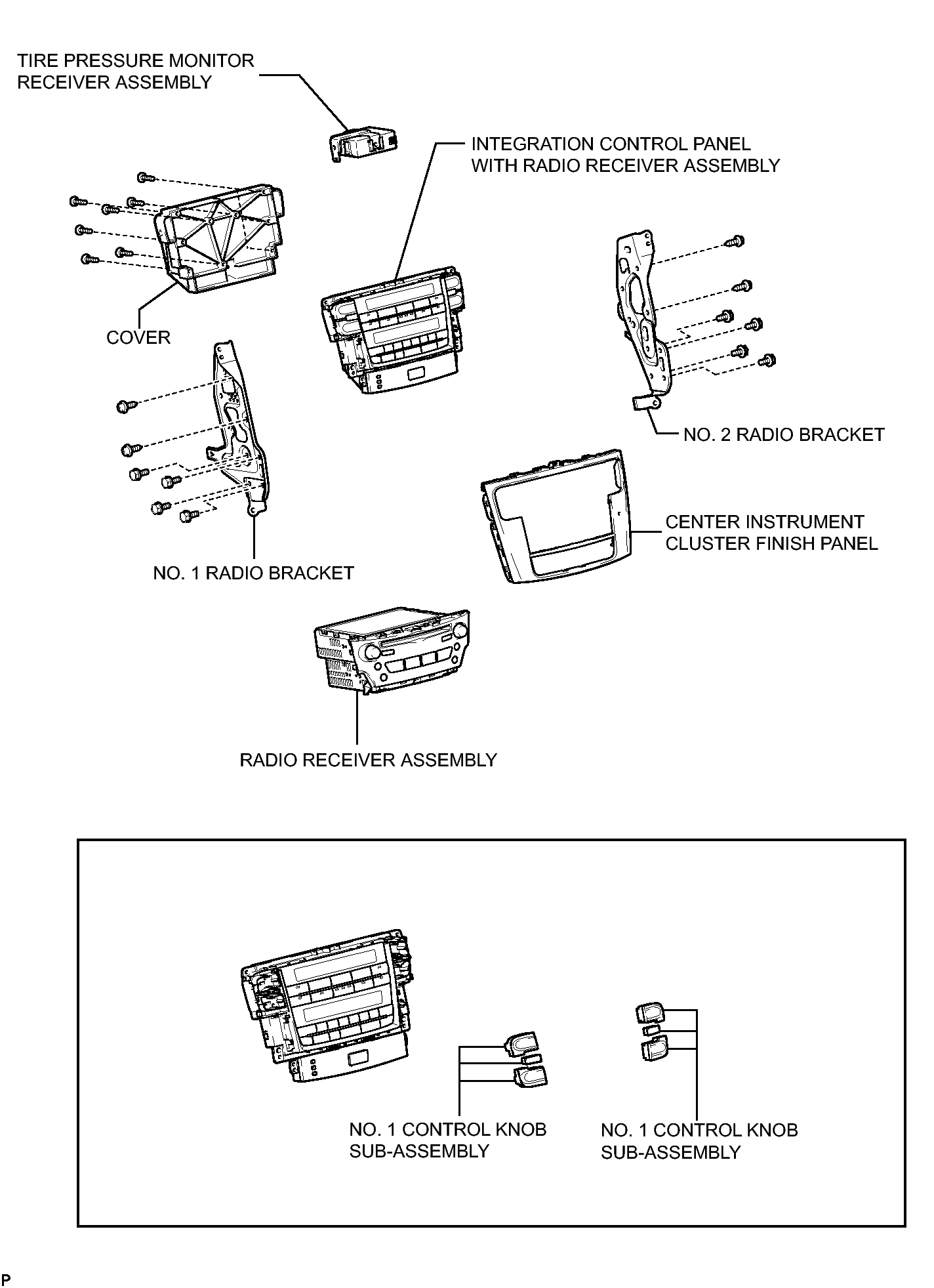

Fig 1: Identifying Integration Control And Panel Replacement Components (3 Of 3)
GTY151240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
