Blower Unit: Disassembly: Disassembly

WARNING: This page is about a different car, the 2009 Lexus IS 350 and 2009 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INLET CONTROL SERVO MOTOR

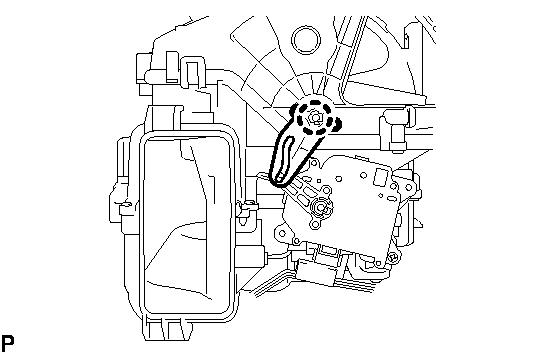

1. Detach the claw and remove the lever.

  Fig 1: Identifying Lever & Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

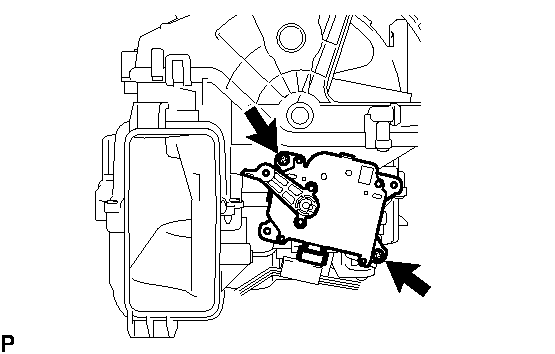

2. Remove the 2 screws and inlet control servo motor.

  Fig 2: Identifying Inlet Control Servo Motor & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEAN AIR FILTER

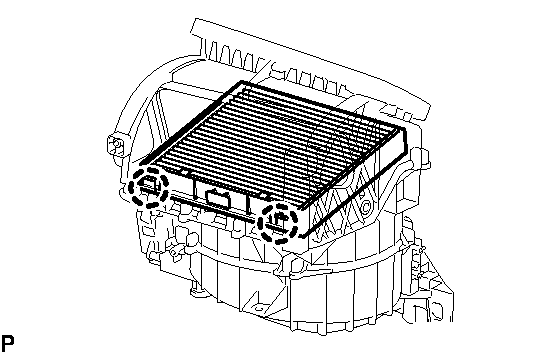

1. Detach the 2 claws and remove the air filter.

  Fig 3: Identifying Air Filter & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.
REMOVE COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

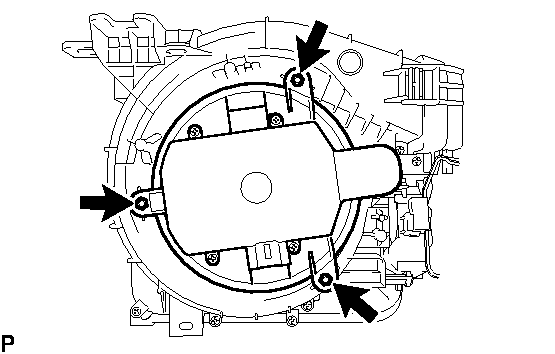

1. Remove the 3 screws and fan motor.

  Fig 4: Identifying Fan Motor & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
