Parts Location: Illustration

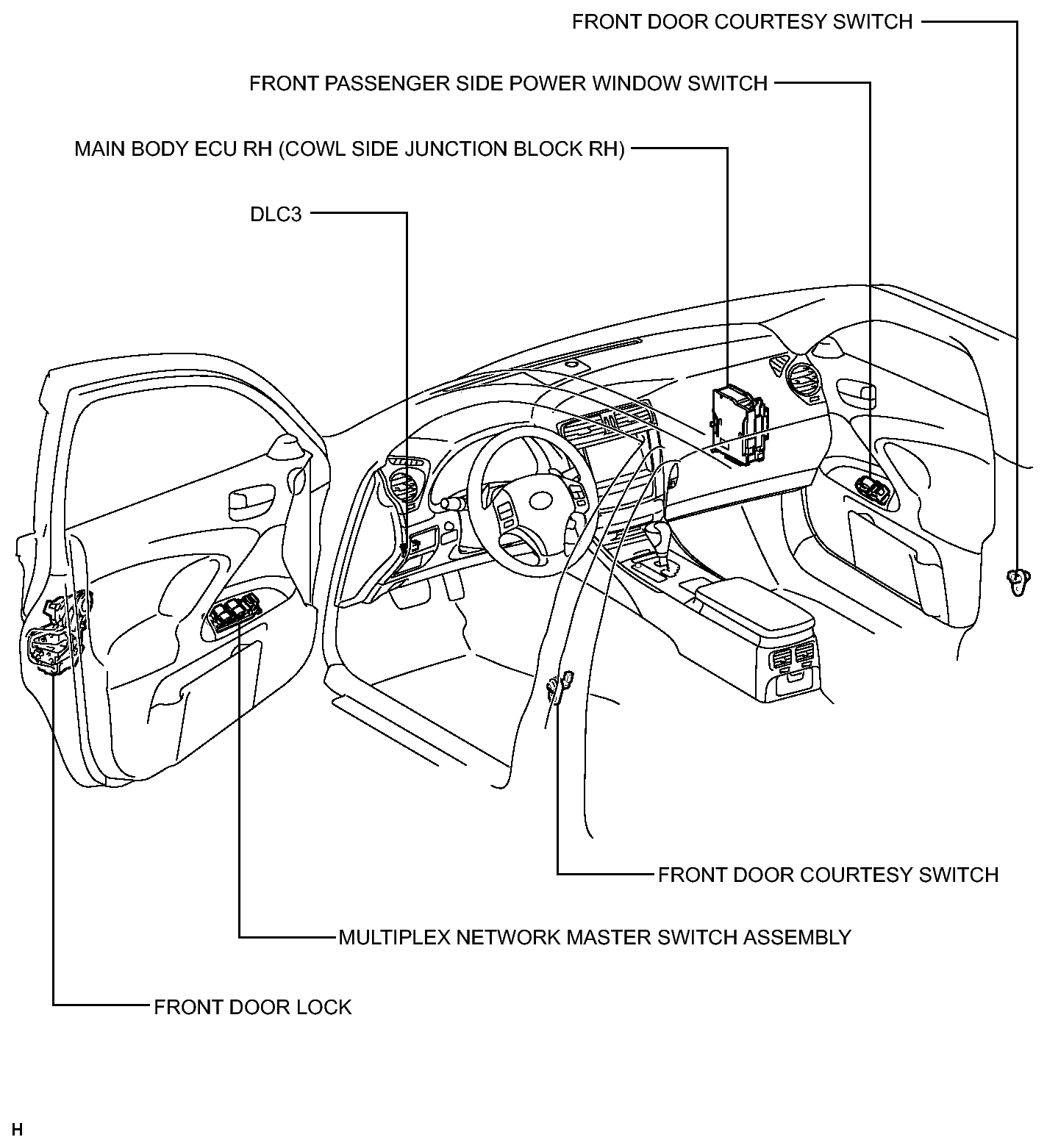

Fig 1: Identifying Power Window Control System Replacement Components (1 Of 2)
GTY132983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

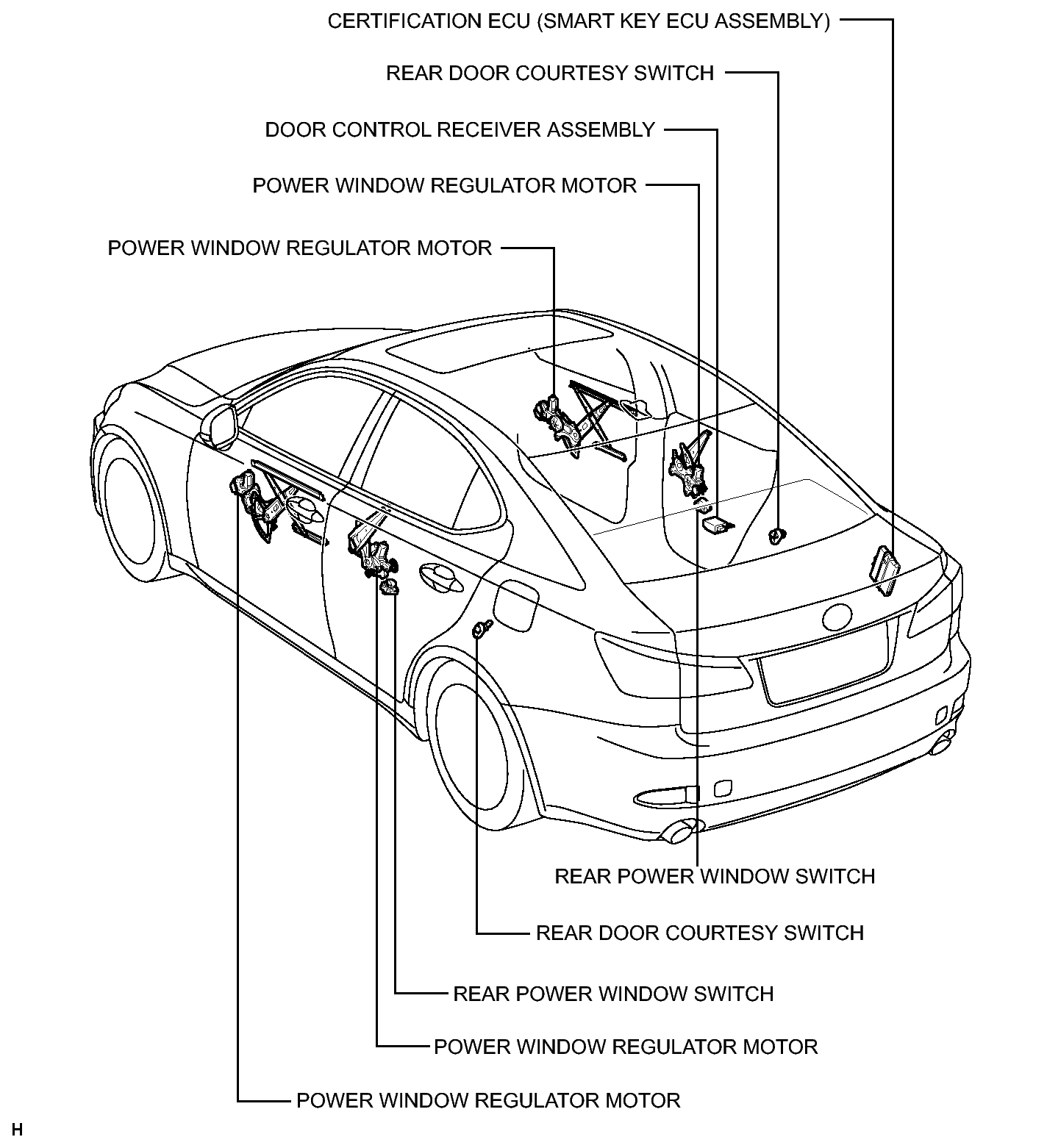

Fig 1: Identifying Power Window Control System Replacement Components (2 Of 2)
GTY134891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
