Shift Lever: Components: Illustration

Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)
GTY273351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

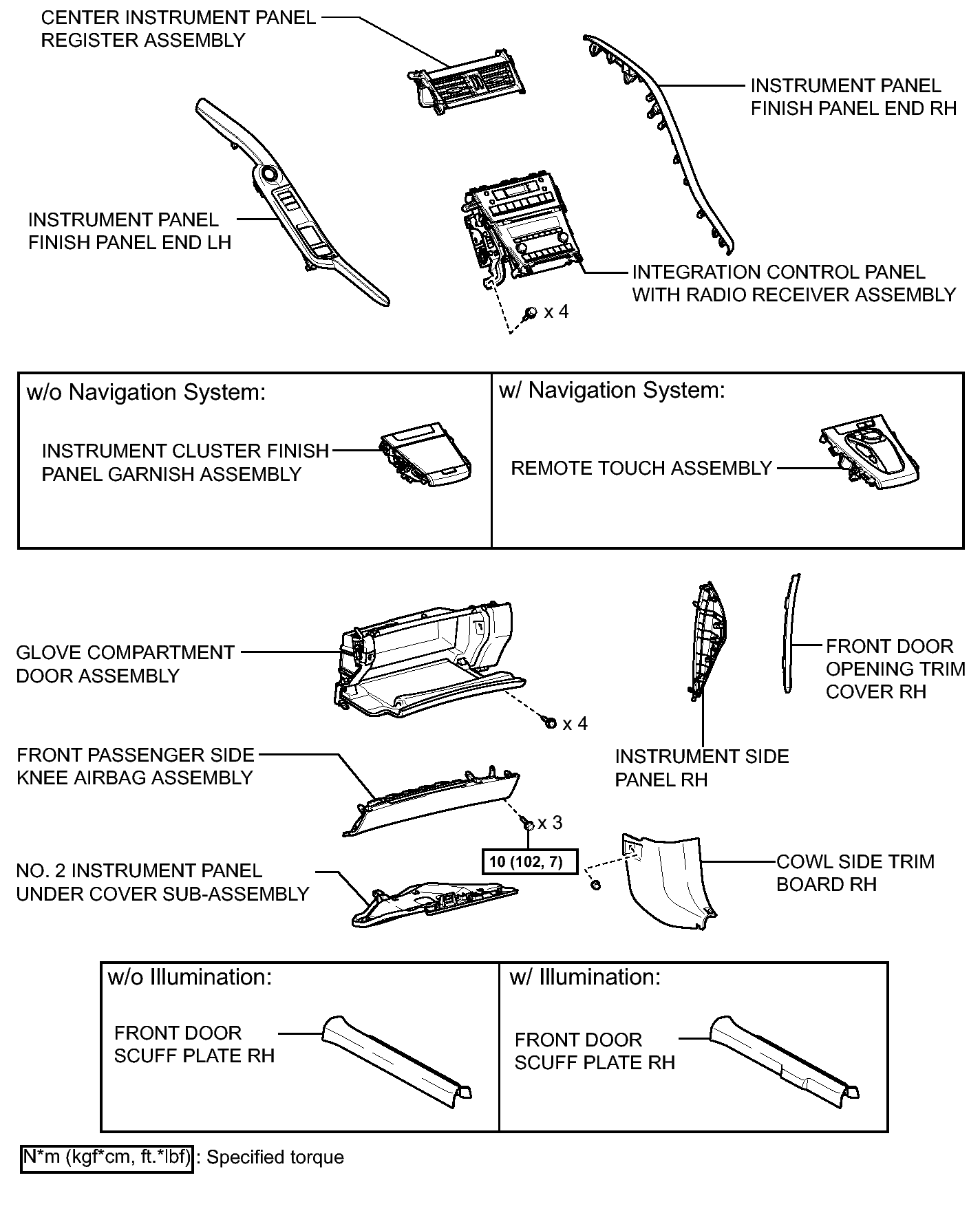

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 4)
GTY257365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


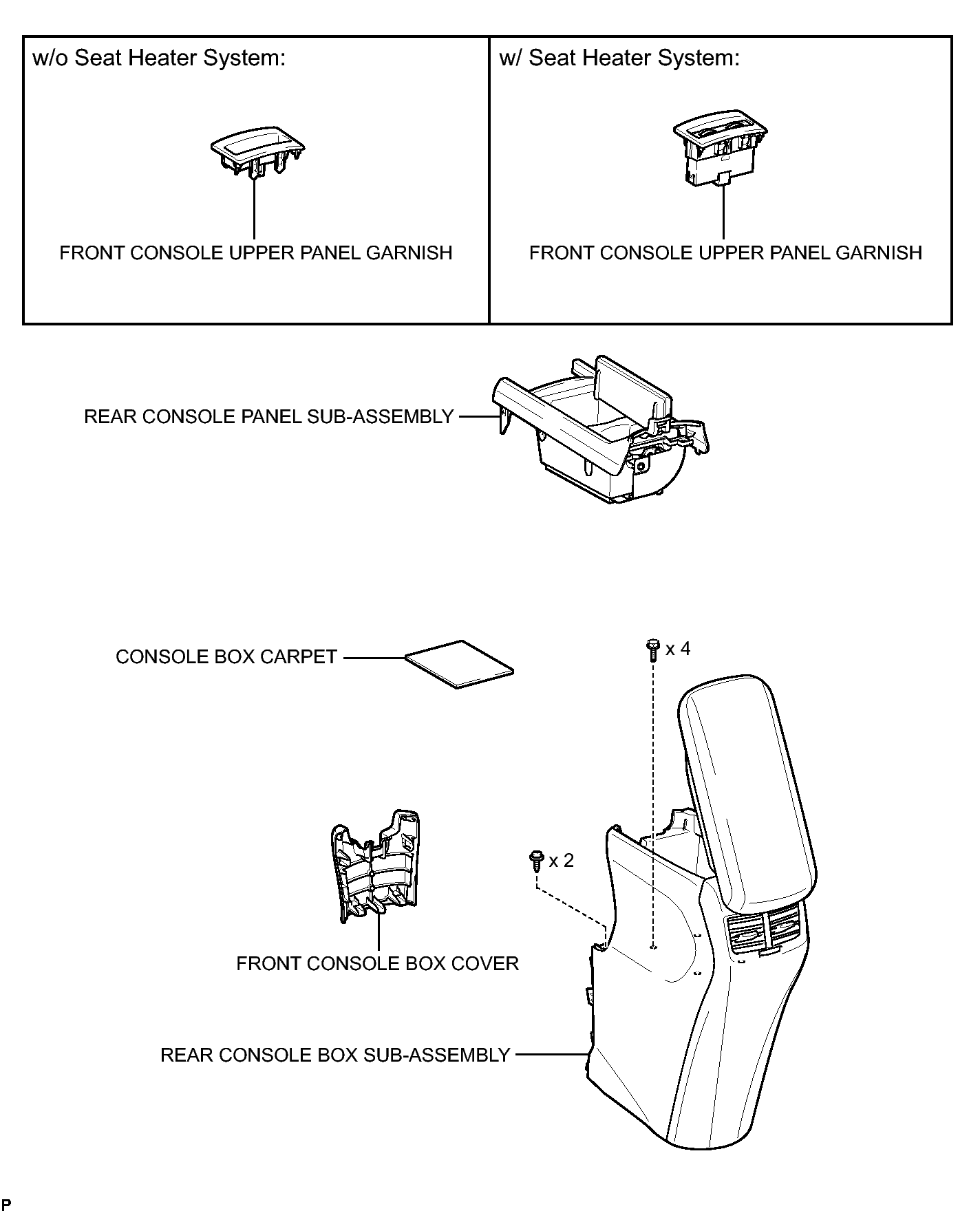

Fig 1: Identifying Shift Lever Replacement Components (3 Of 4)
GTY257635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

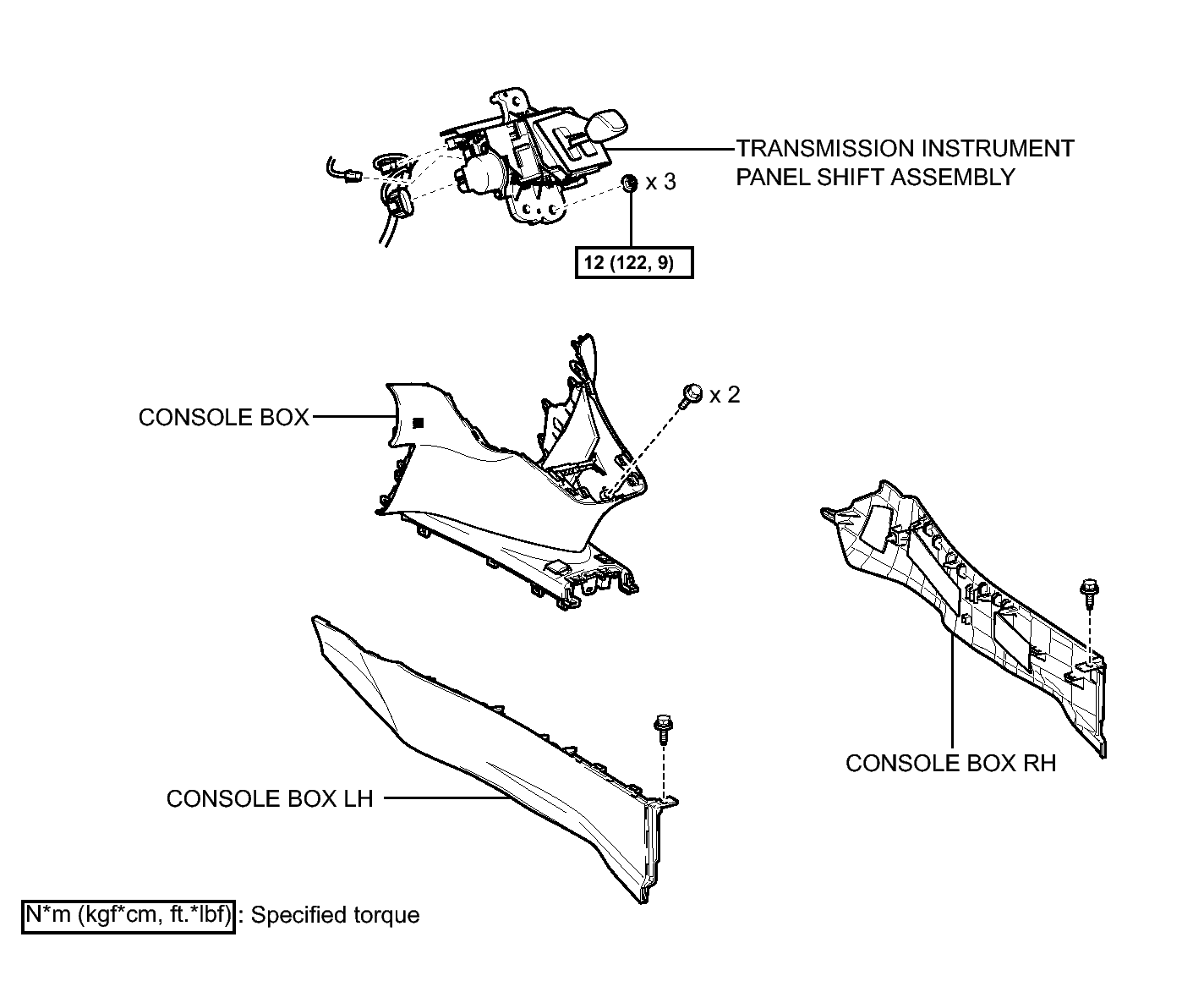

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (4 Of 4)
GTY268042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
