Battery Fuse: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ELECTRIC VEHICLE FUSE

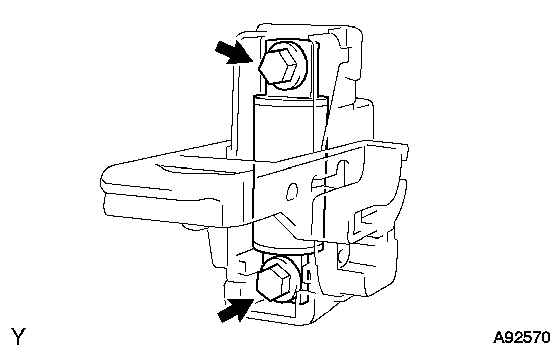

1. Install the electric vehicle fuse with the 2 bolts.

  Fig 1: Identifying Electric Vehicle Fuse & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

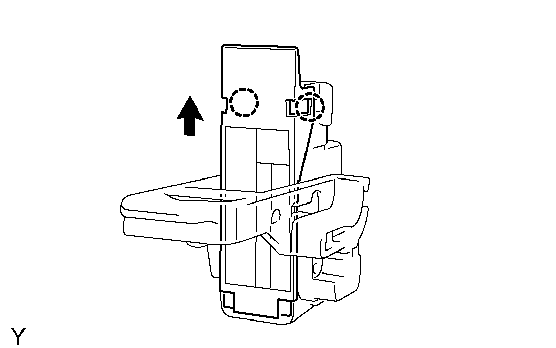

2. Install the service plug grip cover with the 2 craws.

  Fig 2: Identifying Service Plug Grip Cover & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SERVICE PLUG GRIP See step 33
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL BATTERY SERVICE HOLE COVER LH See step 35
PERFORM INITIALIZATION
1. Perform initialization procedure. Refer toINITIALIZATION .
  NOTE:
  Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
