Fuel Lid Opener: Notes

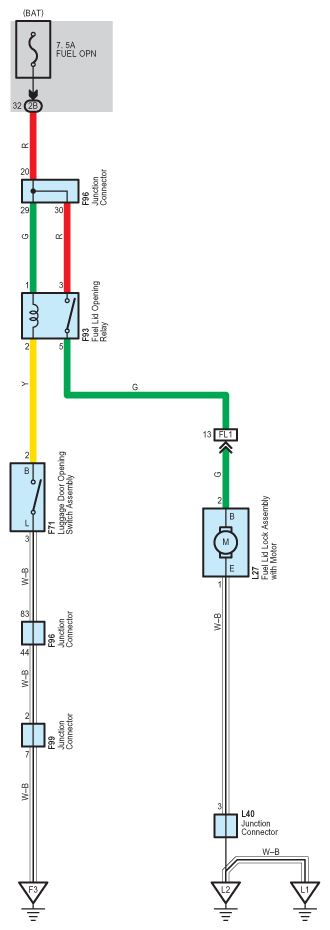

Fig 1: Fuel Lid Opener - Circuit Diagram

G07558619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
