Automatic Glare-Resistant EC Mirror and Compass: Notes

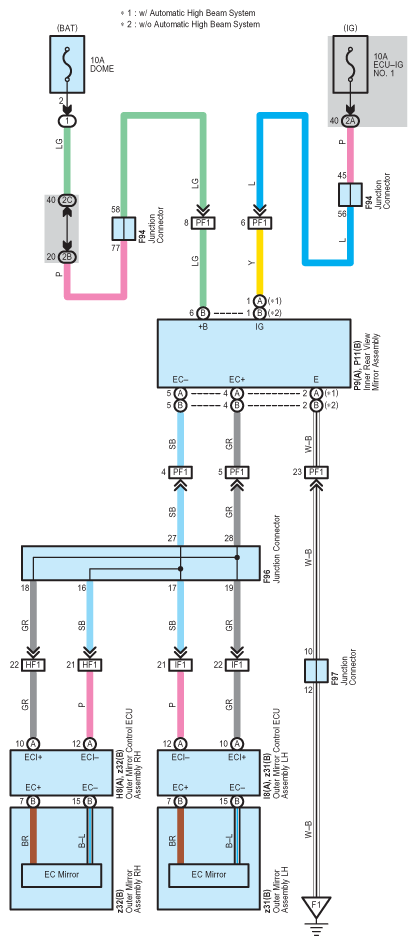

Fig 1: Automatic Glare-Resistant EC Mirror And Compass - Circuit Diagram

G07558600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
