Parts Location: Illustration

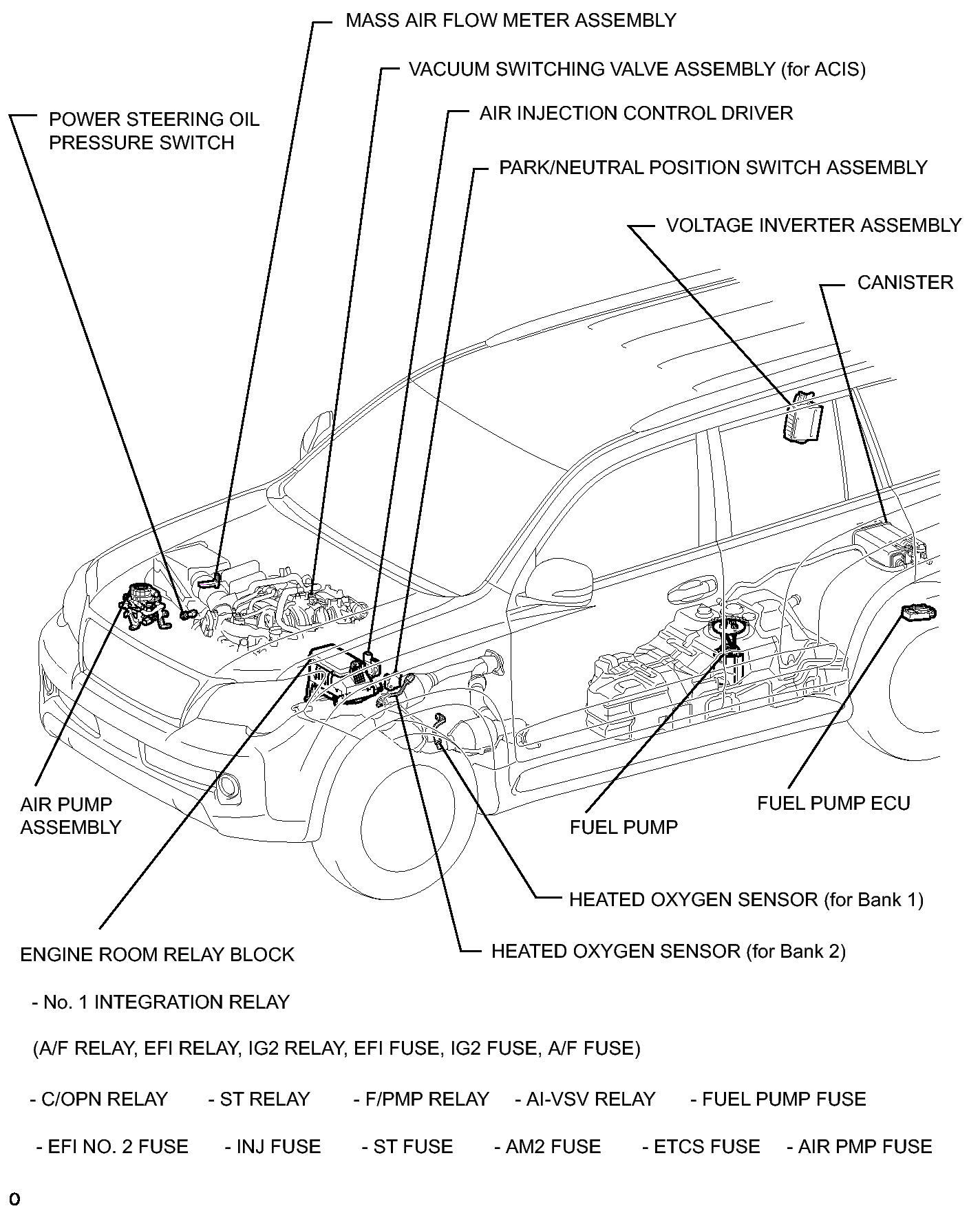

Fig 1: Identifying Engine Control System Parts Location (1 Of 5)
GTY285451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Parts Location (2 Of 5)
GTY284398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Parts Location (3 Of 5)
GTY282582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Parts Location (4 Of 5)
GTY279264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Parts Location (5 Of 5)
GTY271813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
