Parts Location: Illustration

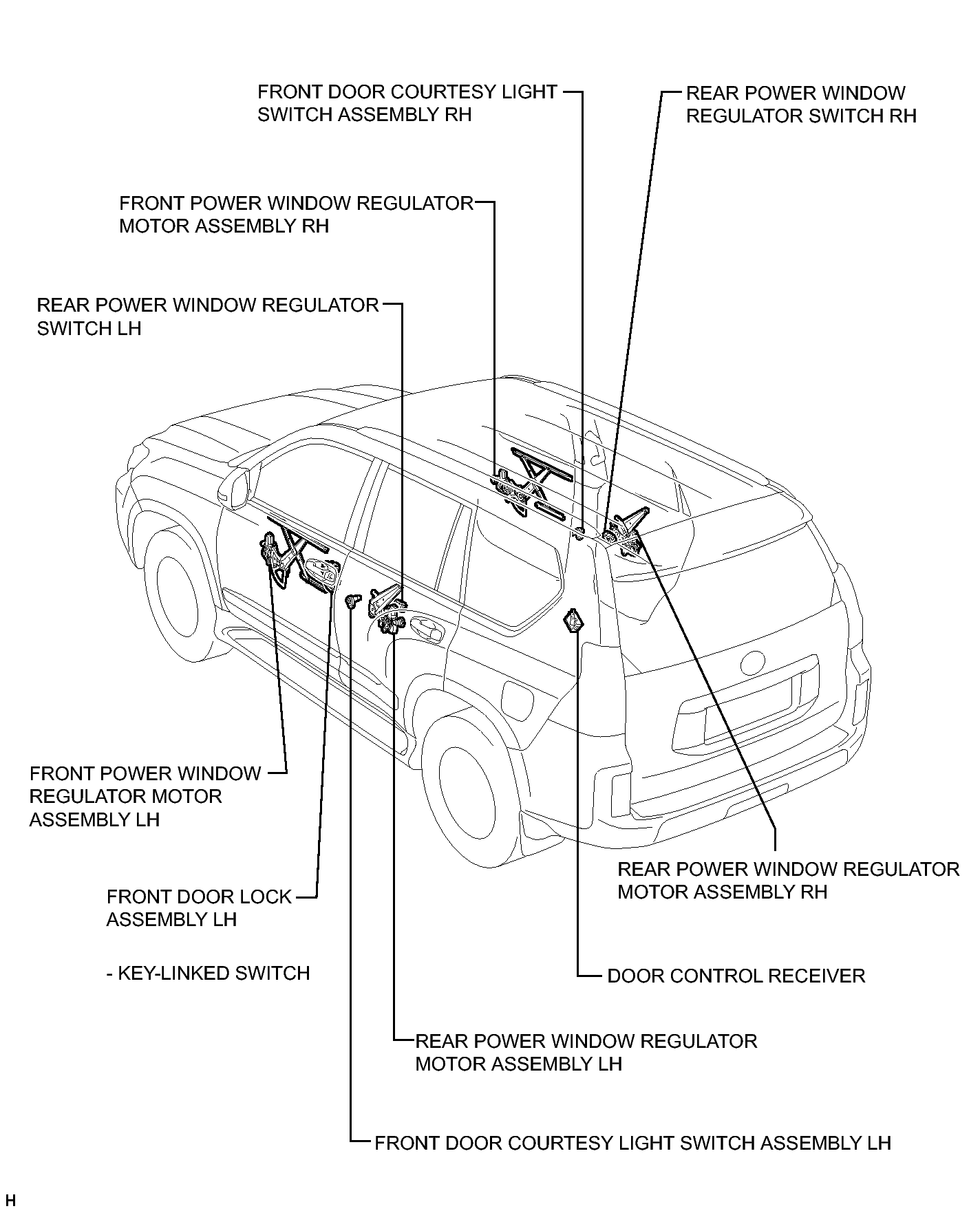

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)
GTY274097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

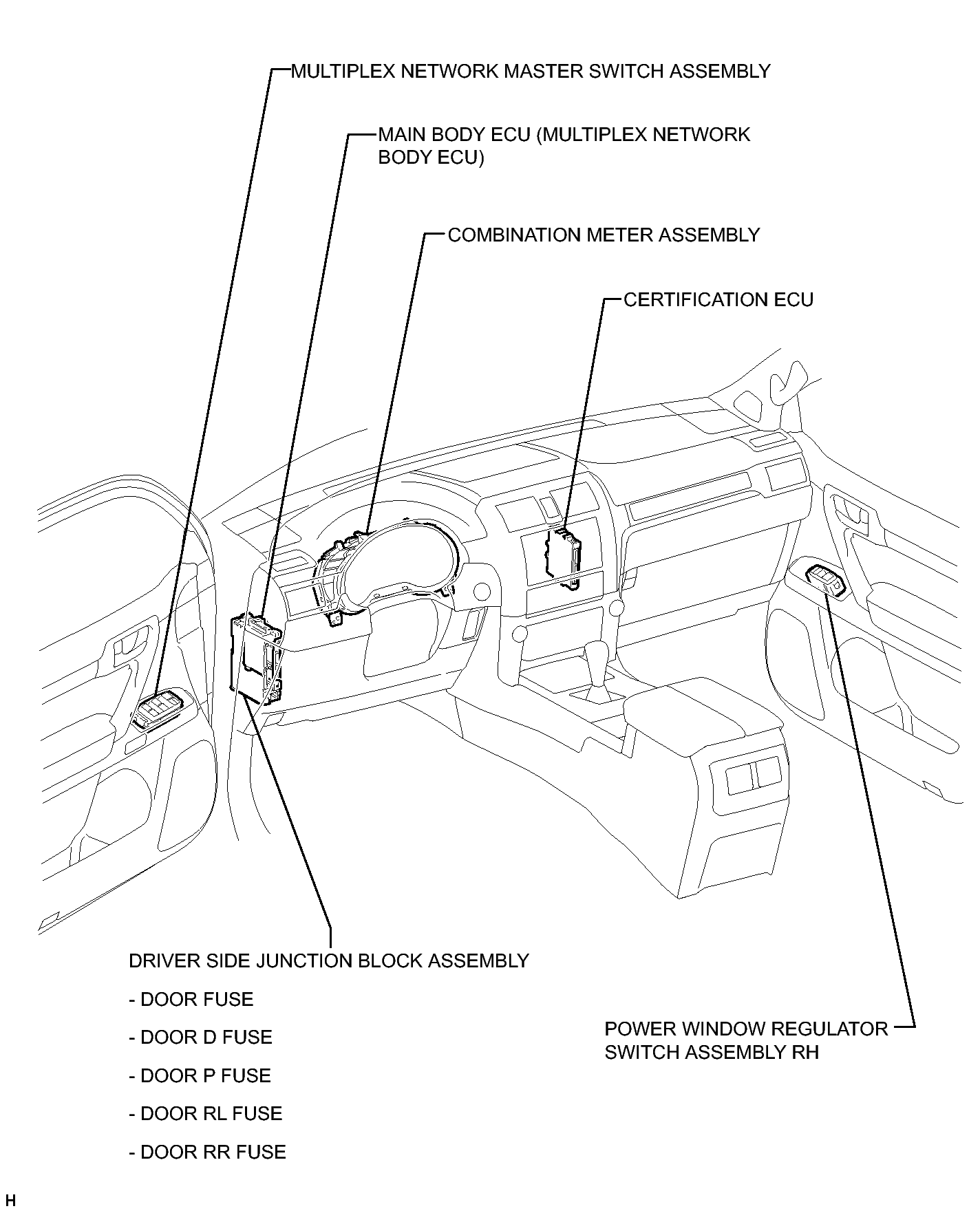

Fig 1: Identifying Power Window Control System Parts Location (2 Of 2)
GTY253810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
