Ignition Coil And Spark Plug: Components: Illustration

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)
GTY105089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

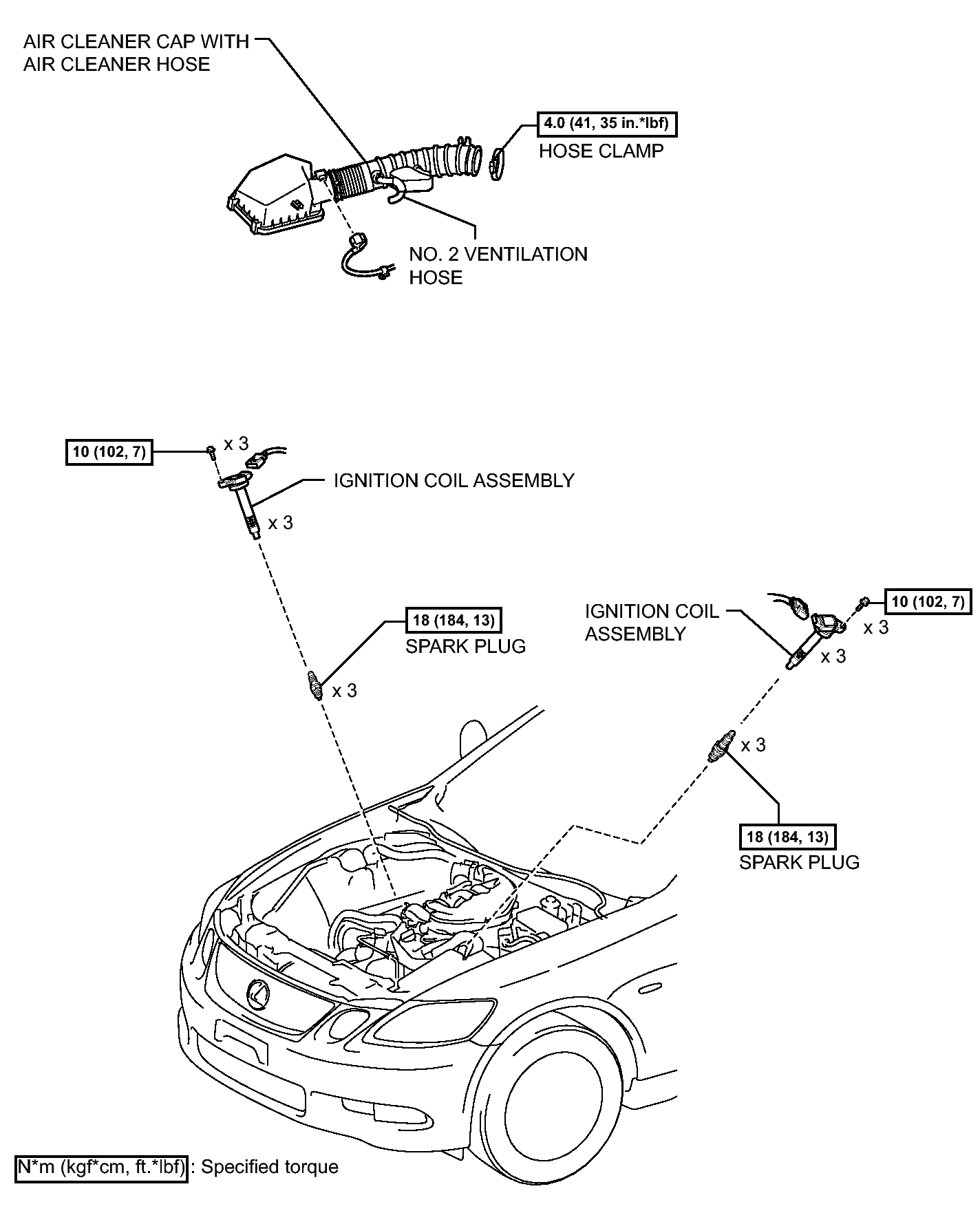

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)
GTY275679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
