Throttle Body: Installation: Installation

  1. INSTALL THROTTLE BODY
    1. Install a new gasket to the intake air surge tank.
      Fig 1: View Of Aligning Protrusion Of Gasket On Intake Air Surge Tank
      GTY104613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Align the protrusion of the gasket on the intake air surge tank.

    2. Connect the 2 water by-pass hoses to the throttle body.
      Fig 2: Identifying Water By-Pass Hoses
      GTY101111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the throttle body with the 4 bolts.
      Fig 3: Identifying Throttle Body Bolts
      GTY105179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the throttle motor connector.
  2. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

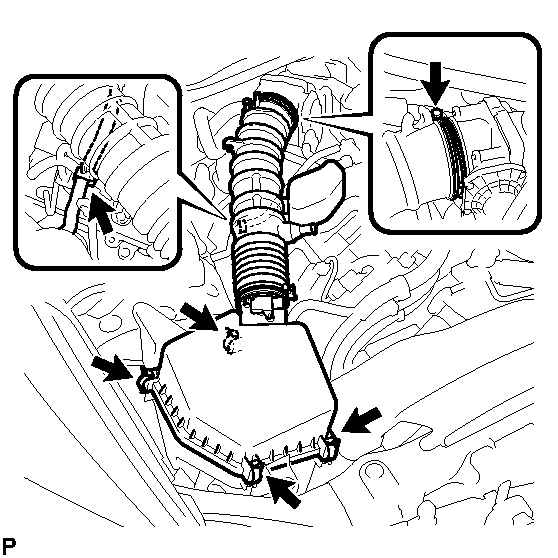

      Fig 4: Identifying Hose Clamp And Air Cleaner Cap With Air Cleaner Hose
      GTY105178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the air cleaner cap with air cleaner hose assembly with the 4 clamps and hose clamp.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

      for hose clamp

      HINT:

      Fit the protrusion on the air cleaner hose into the hole of the hose clamp on the throttle valve side.

    2. Connect the purge line hose to the air cleaner hose.
    3. Fig 5: Identifying MAF Meter Connector
      GTY101638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the MAF meter connector and clamp to the air cleaner cap.
  3. CONNECT NO. 2 VENTILATION HOSE
    1. Connect the ventilation hose to the cylinder head cover with the clamp.
      Fig 6: Identifying Ventilation Hose
      GTY104804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 6
  6. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 3
  7. INSPECT FUNCTION OF THROTTLE BODY  See step  1
  8. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 114
  9. INSTALL V-BANK COVER  . Refer to INSTALLATION - Step 132
  10. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 134
  11. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 135
  12. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
