Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY (DOOR MIRROR FOOT LIGHT)

    HINT:

    (See INSPECTION  ).

    NG: REPLACE OUTER REAR VIEW MIRROR ASSEMBLY

    OK: Go to next step.

  2. CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR - ECU AND BODY GROUND)
    1. Disconnect the E65 outer mirror control ECU connector.
    2. Disconnect the 13 or H4 outer rear view mirror connector.
    3. Measure the resistance according to the value(s) in the table.

      Standard resistance: LH Side

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      E65-17 (LP) - I3-2 Always Below 1 Ω
      I3-12- Body ground Always Below 1 Ω
      E65-17 (LP) - Body ground Always 10 kΩ or higher

      RH Side

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      E65-37 (LP) - H4-2 Always Below 1 Ω
      H4-12 - Body ground Always Below 1 Ω
      E65-37 (LP) - Body ground Always 10 kΩ or higher

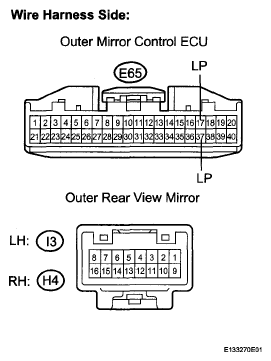

    Fig 1: Identifying E65 And I3 Connectors Terminals
    G05252355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
