On-Vehicle Inspection
WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT LICENSE PLATE LIGHT ASSEMBLY

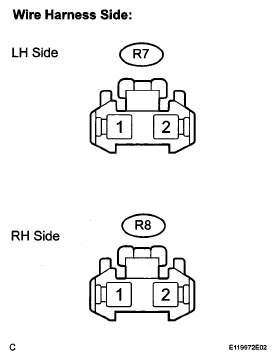

- Disconnect the connector from the license plate light assembly.
- Measure the voltage according to the value(s) in the table below.
Standard voltage: LH Side
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition R7-1 - R7-2 Light control switch OFF → TAIL Below 1 V → 10 to 14 V R7-1 - R7-2 Light control switch OFF → TAIL Below 1 V → 10 to 14 V RH Side
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition R7-1 - R7-2 Light control switch OFF → TAIL Below 1 V → 10 to 14 V R7-1 - R7-2 Light control switch OFF → TAIL Below 1 V → 10 to 14 V If the result is not as specified, there is a malfunction on the wire harness side.
