Rear Stabilizer Bar: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear No. 1 Suspension Arm Replacement Components With Torque Specifications (1 Of 3)
G05250212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

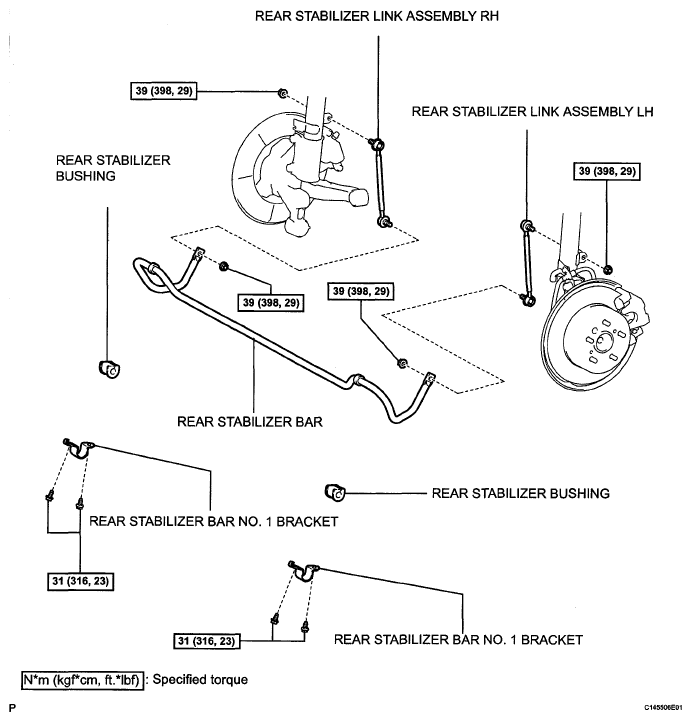

Fig 2: Rear Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
G05250241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
