Rear Shock Absorber: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

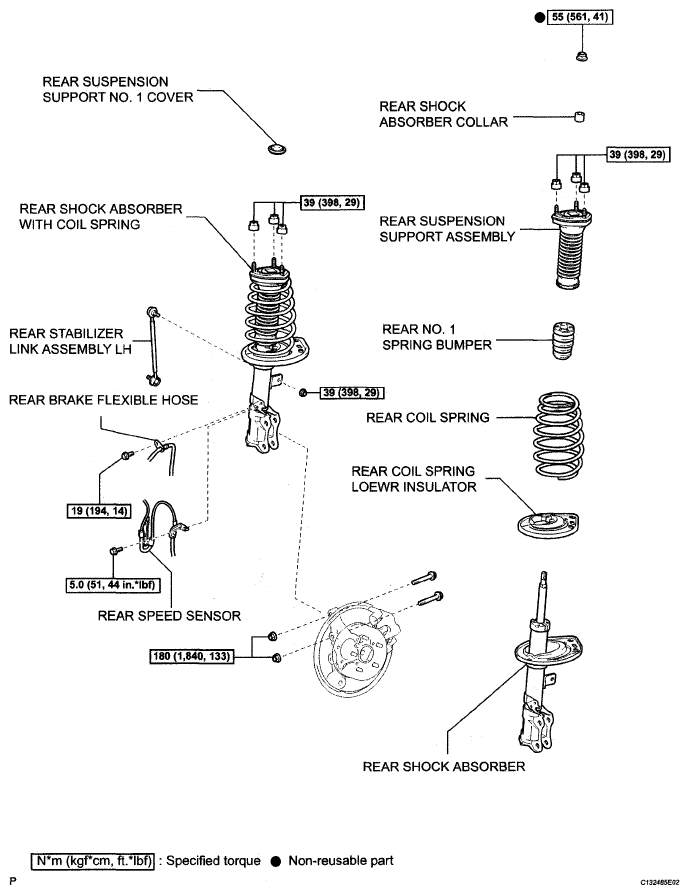

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Shock Absorber Replacement Components With Torque Specifications (3 Of 4)

Fig 4: Rear Shock Absorber Replacement Components With Torque Specifications (4 Of 4)
