Front Passenger Airbag Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

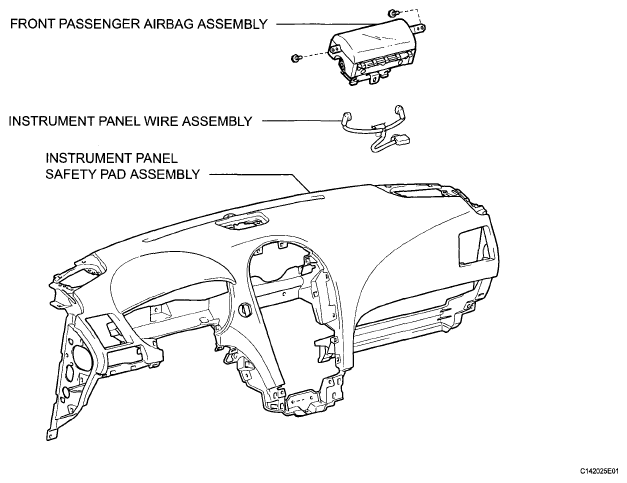

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

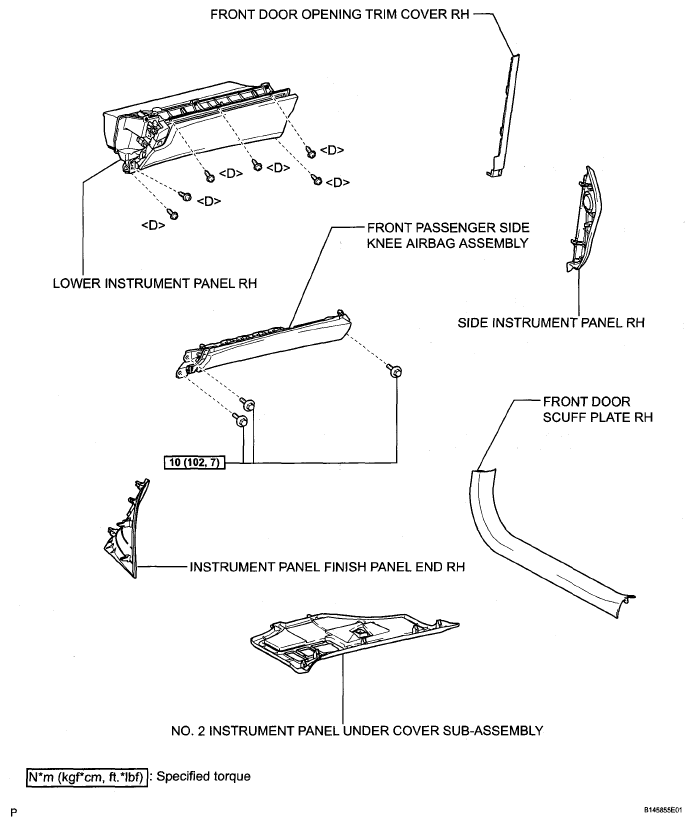

Fig 2: Identifying Front Passenger Airbag Assembly Replacement Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specification (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Front Passenger Airbag Assembly Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Front Passenger Airbag Assembly Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Front Passenger Airbag Assembly Replacement Components (6 Of 8)

Fig 7: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specification (7 Of 8)

Fig 8: Identifying Front Passenger Airbag Assembly Replacement Components (8 Of 8)
