Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the engine switch on (IG).
    3. Press the intelligent tester main switch on.
    4. Select the item below in the ACTIVE TEST and then check that the indicator operates.

      SMART (Certification ECU):

      SMART REFERENCE CHART

      Item Test Details Diagnostic Note
      SECURITY INDIC Security indicator ON/OFF -

      OK:

      The security indicator light flashes or goes off correctly when operating it through the intelligent tester.

    NG: Go to step 2

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  2. CHECK SECURITY INDICATOR LIGHT ASSEMBLY
    1. Remove the security indicator light assembly.
    2. Apply battery voltage to the terminals of the security indicator and check the lighting condition.

      OK

      MEASUREMENT AND SPECIFIED CONDITION REFERENCE CHART

      Measurement Condition Specified Operation
      Battery positive (+) - Terminal 2
      Battery negative (-) - Terminal 1
      Indicator light comes on.
    Fig 1: Identifying Security Indicator Light Assembly
    G05252078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE SECURITY INDICATOR LIGHT ASSEMBLY

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - SECURITY INDICATOR LIGHT)
    1. Disconnect the E13 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Symbol (Tester Connection) Specified Condition
      IND (E13-2) - (G1-2) Below 1 Ω
      IND (E13-2) - Body ground 10 kΩ or higher

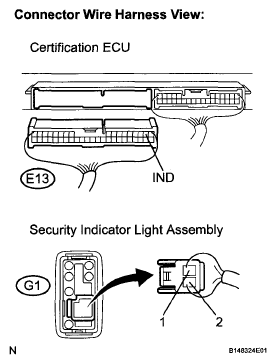

    Fig 2: Identifying E13 ECU Connector Terminals
    G05252079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  4. CHECK HARNESS AND CONNECTOR (SECURITY INDICATOR LIGHT ASSEMBLY - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

      Tester Connection Specified Condition
      G1-1 - Body ground Below 1 Ω
    Fig 3: Identifying Security Indicator Light Assembly And Body Ground
    G05252080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
