Fuel Injector: Removal: Removal

DISCHARGE FUEL SYSTEM PRESSURE
HINT:

Refer to PRECAUTION .
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
DRAIN ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 8
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 11
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 12
REMOVE ENGINE ROOM SIDE COVER RH . Refer to REMOVAL - Step 13
REMOVE FRONT SUSPENSION CENTER UPPER BRACE
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 14
REMOVE AIR CLEANER CAP SUB-ASSEMBLY . Refer to REMOVAL - Step 8
REMOVE INTAKE AIR SURGE TANK ASSEMBLY
1. Disconnect the 2 water by-pass hoses from the throttle with motor body assembly. (^* 1)

  Fig 1: Locating Vapor Feed Hose And Water By-Pass Hoses From Throttle With Motor Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the vapor feed hose. (^* 2)
3. Disconnect the throttle with motor body assembly connector and clamp. (^* 3)
4. Disconnect the No. 1 ventilation hose. (^* 4)

  Fig 2: Locating No. 1 Ventilation Hose And Valve Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the union to check valve hose. (^* 5)
6. Remove the bolt and vacuum hose clamp.

  Fig 3: Removing Vacuum Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Disconnect the connector.

  Fig 4: Locating Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using a 5 mm socket hexagon wrench, remove the 4 bolts. (^* 1)

  Fig 5: Locating Intake Air Surge Tank Nuts And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Remove the 2 nuts, 2 bolts and intake air surge tank. (^* 2)
10. Remove the gasket from the intake air surge tank.
DISCONNECT FUEL TUBE SUB-ASSEMBLY
1. Remove the No. 2 fuel pipe clamp.

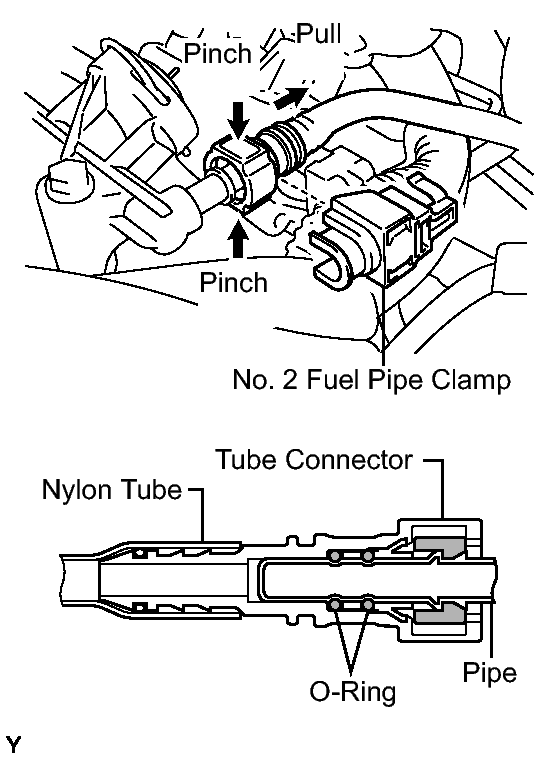

  Fig 6: Pinching Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pinch the tube connector and then pull out the fuel pipe.
  NOTE:
  - Check that there is no dirt or other foreign objects around the connector disconnecting it. Clean the connector as necessary.
  - It is necessary to prevent mud or dirt from entering the quick connector. If mud or dirt gets in the connector, the O-rings may not seal properly.
  - Only disconnect the quick connector by hand.
  - Do not bend, kink or twist the nylon tubes. Protect the connector by covering it with a plastic bag.
  - If the pipe and the connector are stuck, carefully try wiggling or pushing and pulling on the connector to release it. Pull the connector off the pipe carefully.
REMOVE FUEL INJECTOR ASSEMBLY
1. Disconnect the 6 fuel injector connectors.

  Fig 7: Locating Fuel Injector Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5 bolts and fuel delivery pipe together with the 6 fuel injectors.

  Fig 8: Locating Fuel Delivery Pipe And Fuel Injectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to drop the fuel injectors when removing the fuel delivery pipe.
3. Remove the 6 insulators from the intake manifold.

  Fig 9: Identifying Intake Manifold Insulators
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pull out the fuel injectors from the fuel delivery pipe.

  Fig 10: Pulling Out Fuel Injector From Fuel Delivery Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 6 O-rings from the injectors.

  Fig 11: Identifying Injectors O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
