Steering Column Assembly: Inspection: Inspection

INSPECT STEERING COLUMN ASSEMBLY (Tilt Motor)
1. Connect the positive battery terminal to terminal TIM+ (E80-1) and the negative battery terminal to terminal TIM- (E80-2) of the tilt motor connector. Then confirm that the steering wheel tilts up.

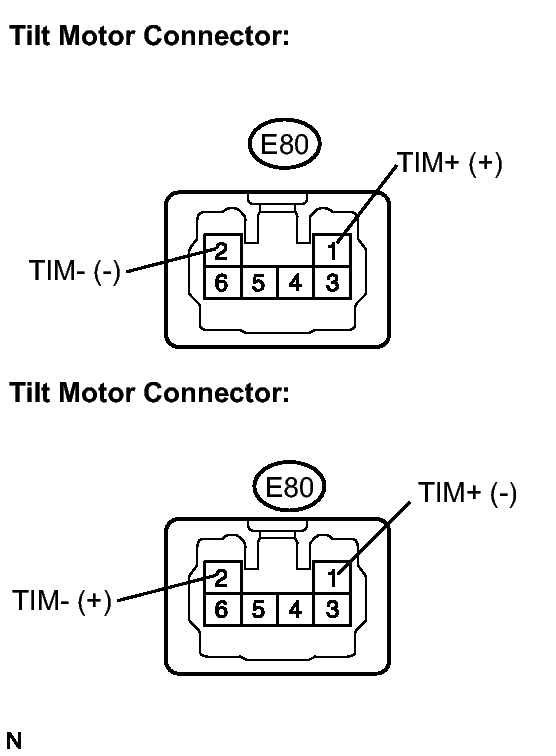

  Fig 1: Identifying Tilt Motor Connector Terminal E80
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK

  The steering wheel tilts up.
2. Connect the negative battery terminal to terminal TIM+ (E80-1) and the positive battery terminal to terminal TIM- (E80-2) of the tilt motor connector. Then confirm that the steering wheel tilts down.
  OK

  The steering wheel tilts down.
INSPECT STEERING COLUMN ASSEMBLY (Telescopic Motor)
1. Disconnect connector A from the multiplex tilt and telescopic ECU.

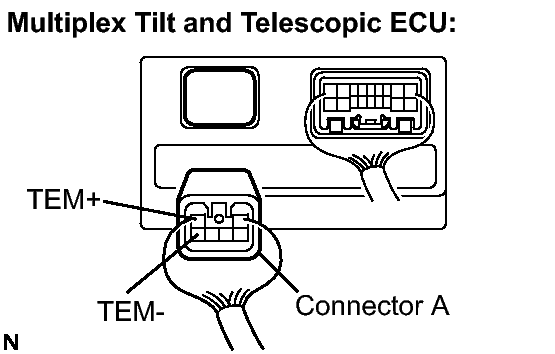

  Fig 2: Identifying Multiplex Tilt And Telescopic ECU Connector Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the positive battery terminal to terminal TEM+ (A-2) and the negative battery terminal to terminal TEM- (A-6) of the telescopic motor connector. Then confirm that the steering column contracts.
  OK

  The steering column contracts.
3. Connect the negative battery terminal to terminal TEM+ (A-2) and the positive battery terminal to terminal TEM- (A-6) of the telescopic motor connector. Then confirm that the steering column extends.
  OK

  The steering column extends.
