System Diagram

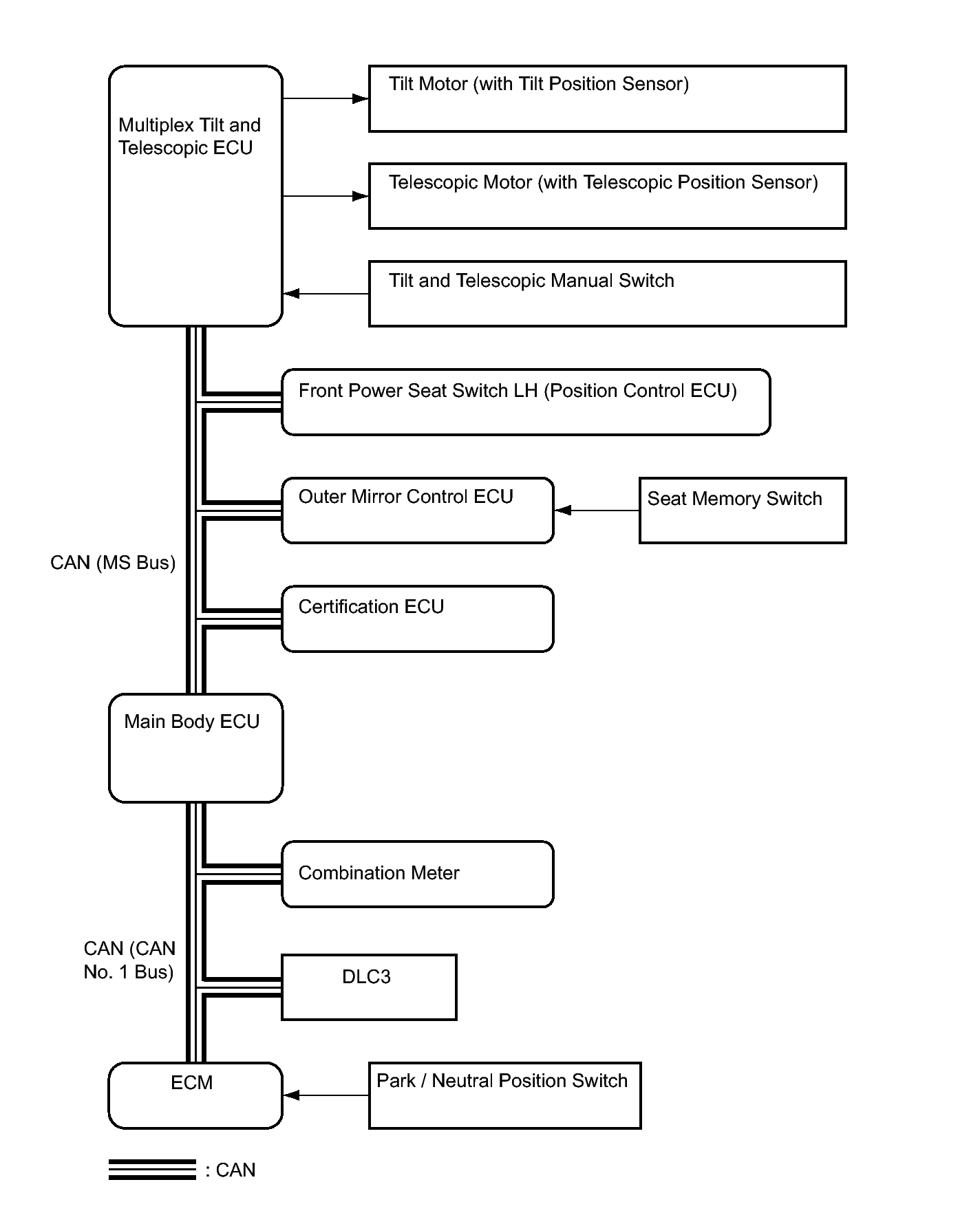

Fig 1: Identifying Power Tilt And Power Telescopic Steering Column System Diagram
GTY259828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender Receiver Signal Line
Main Body ECU Multiplex Tilt and Telescopic ECU
  • Ignition switch signal
  • Key switch signal
  • Key signal for push start system use
 CAN
Multiplex Tilt and Telescopic ECU Front Power Seat Switch LH (Position Control ECU)
  • Tilt and Telescopic execution signal
  • Tilt and Telescopic completion signal
 CAN
Front Power Seat Switch LH (Position Control ECU) Multiplex Tilt and Telescopic ECU
  • Memory command of Memory 1 for driver's seat
  • Memory command of Memory 2 for driver's seat
  • Play command of Memory 1 for driver's seat
  • Play command of Memory 2 for driver's seat
  • Start signal to play Tilt and Telescopic steering
  • Stop signal to play Tilt and Telescopic steering
 CAN
Combination meter ECU Multiplex Tilt and Telescopic ECU
  • Vehicle speed signal (meter to other)
 CAN
