ECU Power Source Circuit: Wiring Diagram

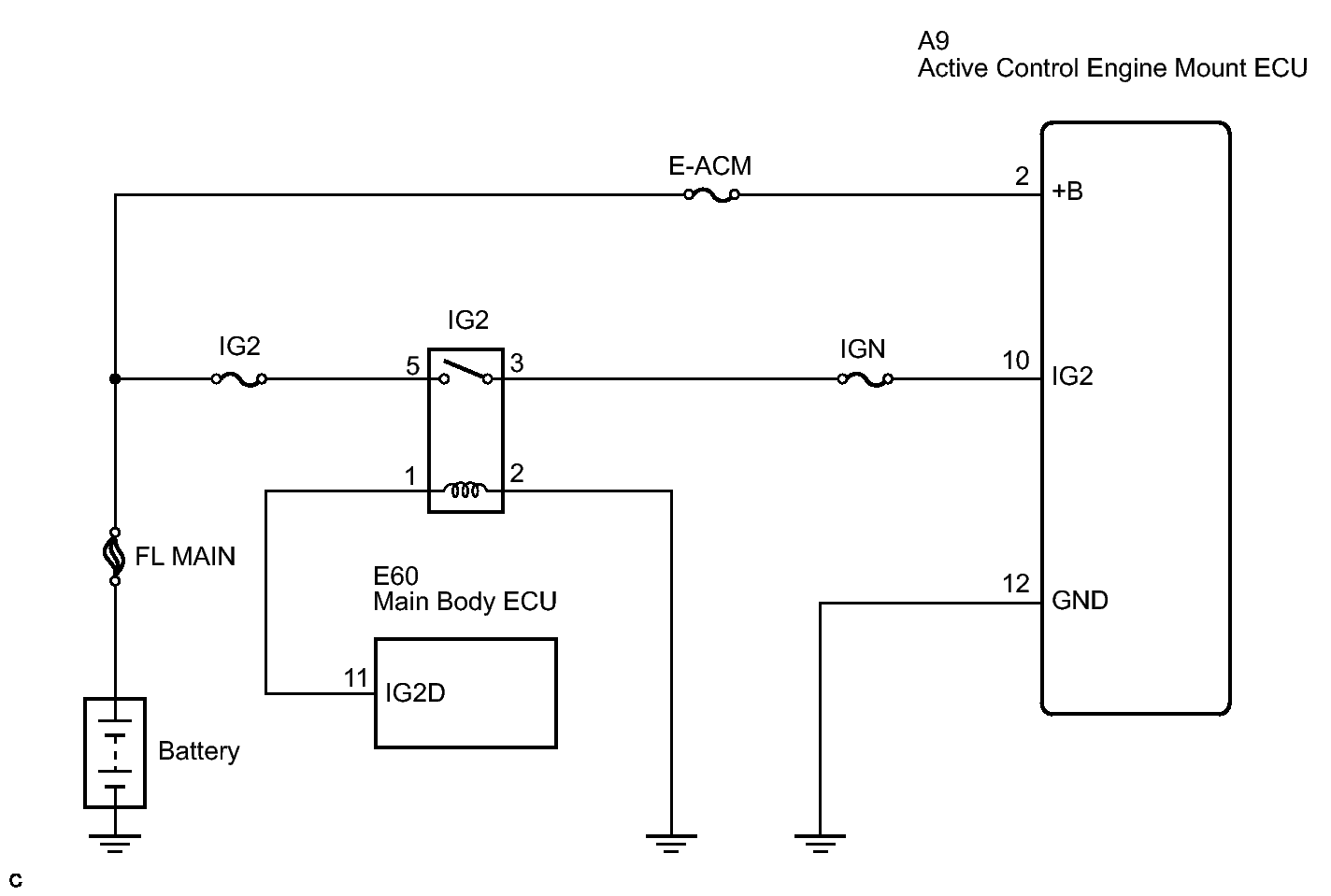

Fig 1: Battery High Voltage -- Wiring Diagram

GTY147304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
