Luggage Oscillator Circuit: Wiring Diagram

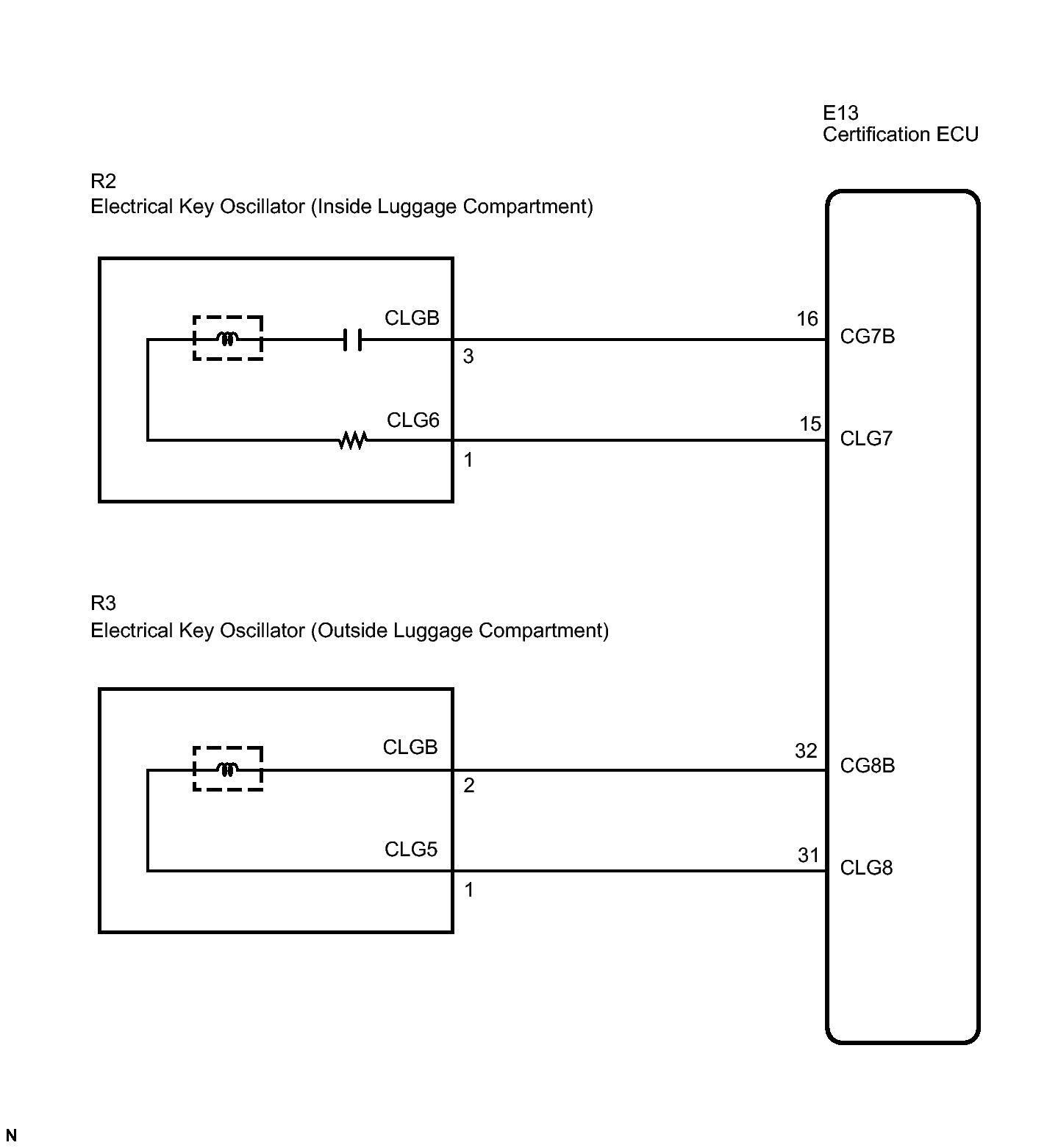

Fig 1: Luggage Oscillator Circuit - Wiring Diagram

GTY117811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
