Valve Body: Components: Illustration

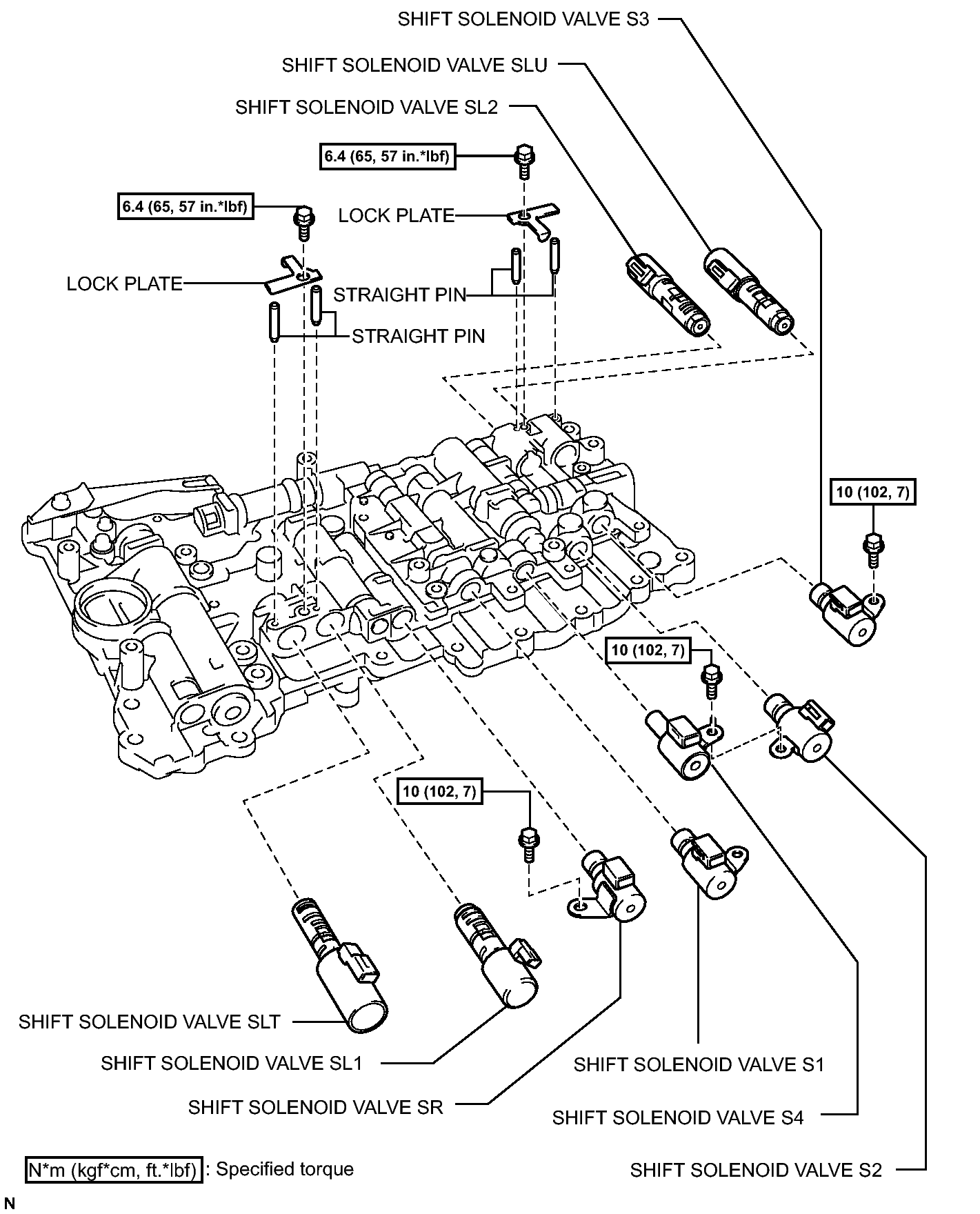

Fig 1: Identifying Valve Body Replacement Components With Torque Specifications

GTY113601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
