Light Auto Turn Off System: Notes

WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

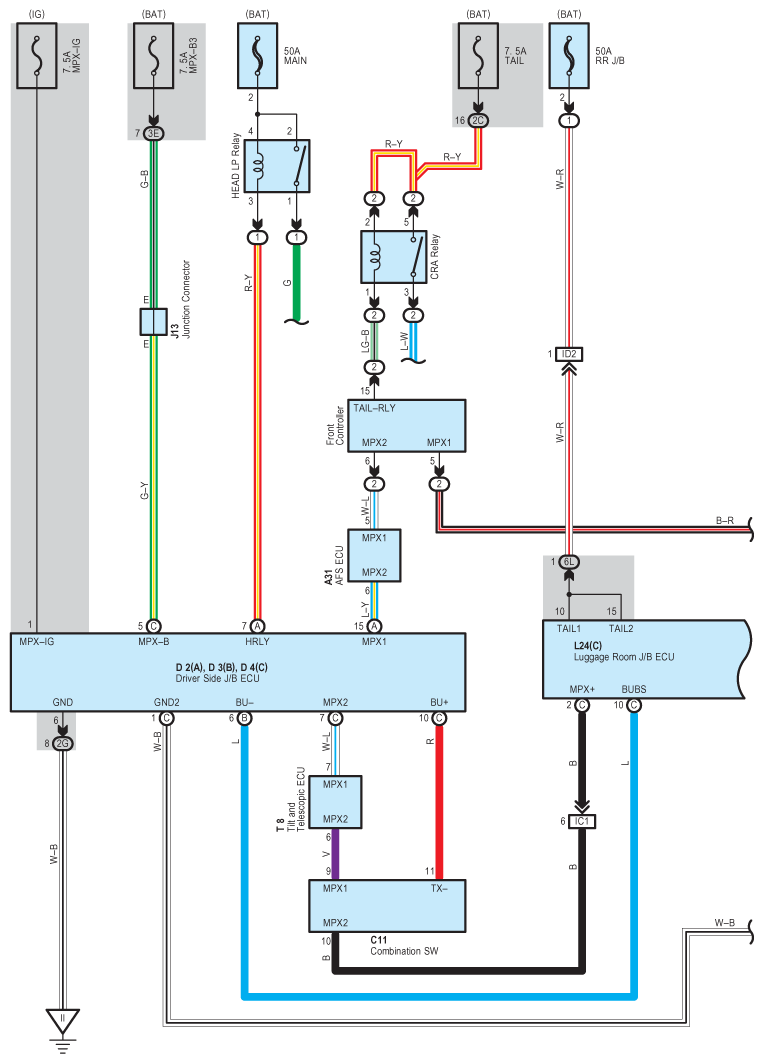

Fig 1: Light Auto Turn Off System - Circuit Diagram (1 Of 2)
G07611996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

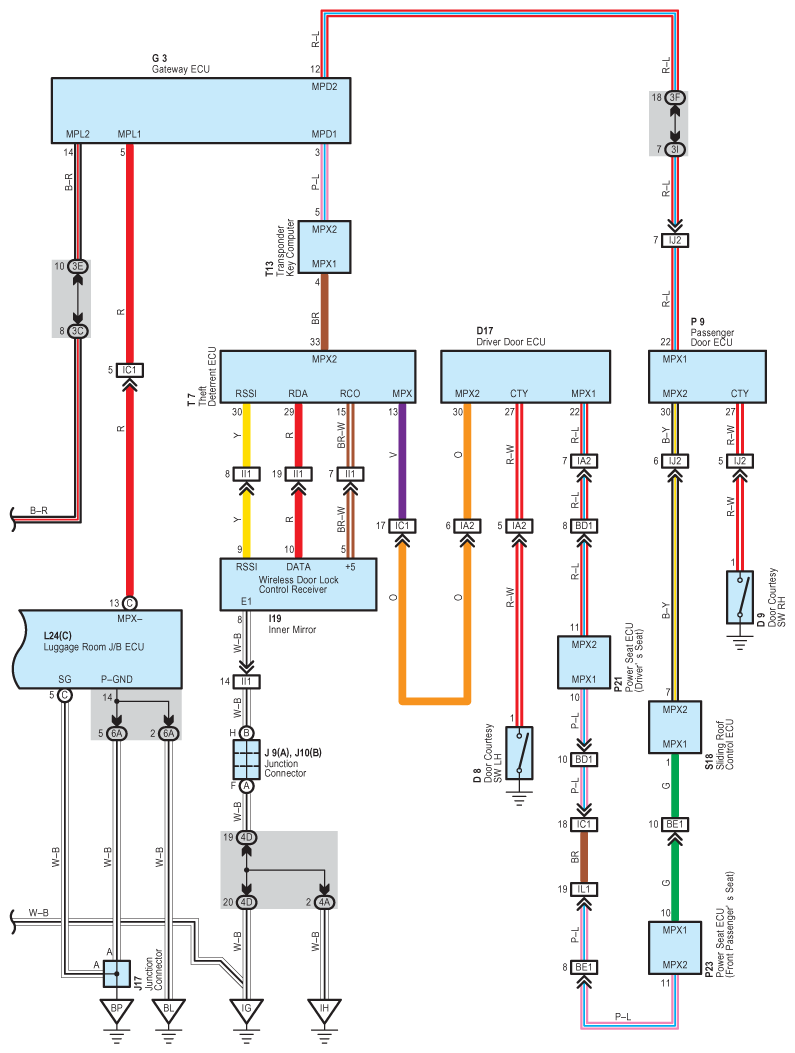

Fig 2: Light Auto Turn Off System - Circuit Diagram (2 Of 2)
G07611997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
