Ignition Coil: Components: Illustration

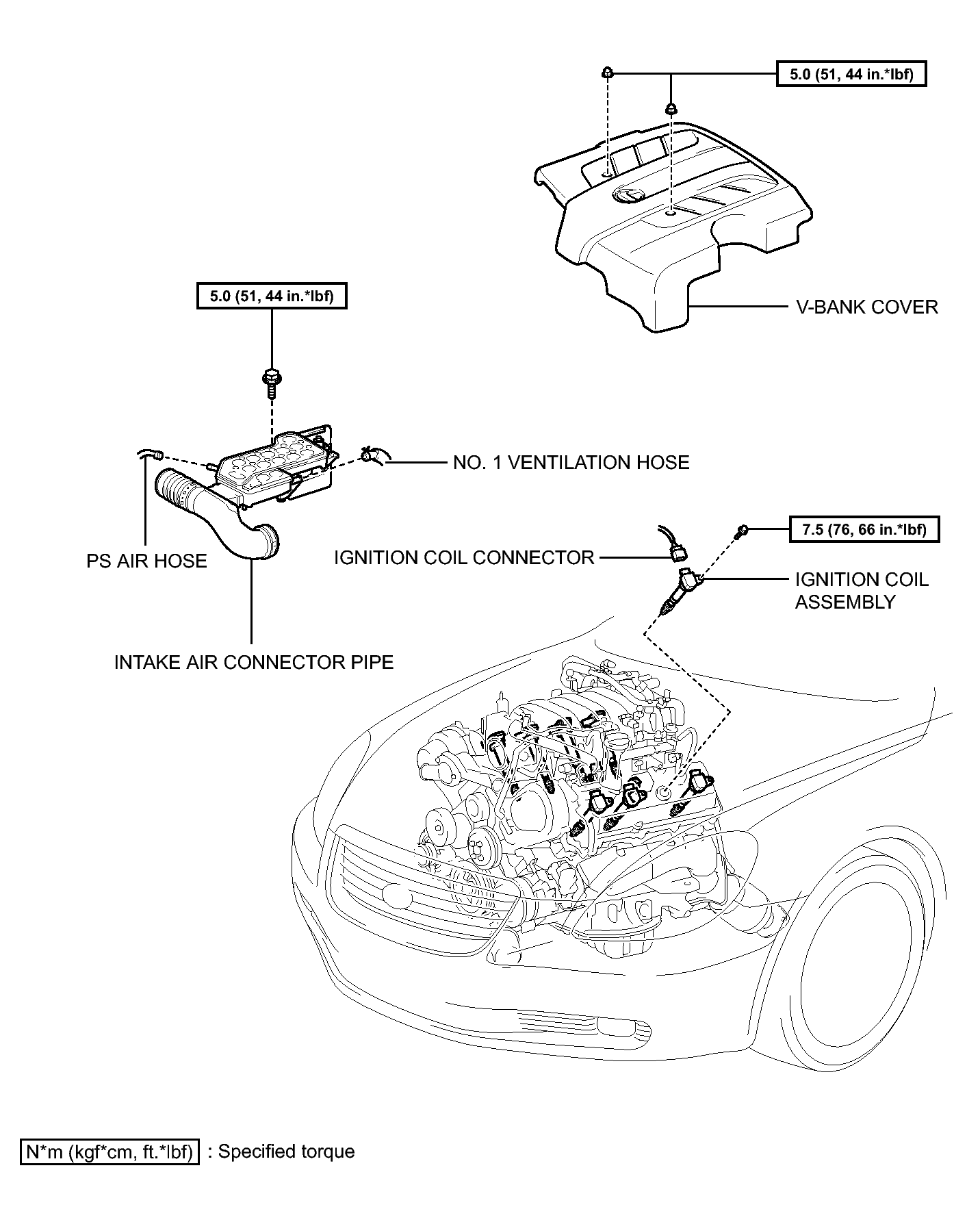

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications

GTY145913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
