Engine Unit: Components: Illustration

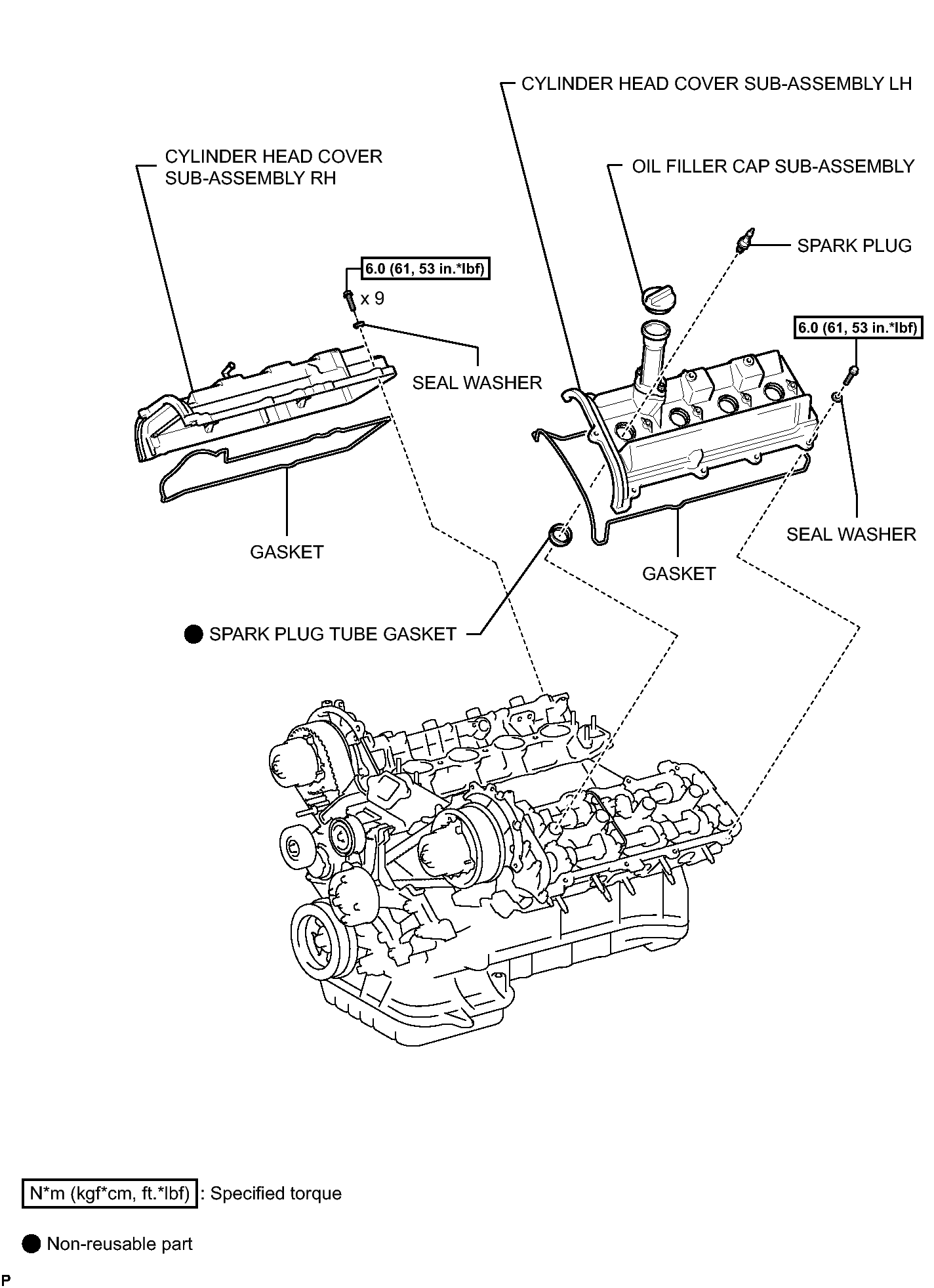

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 11)
GTY142024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

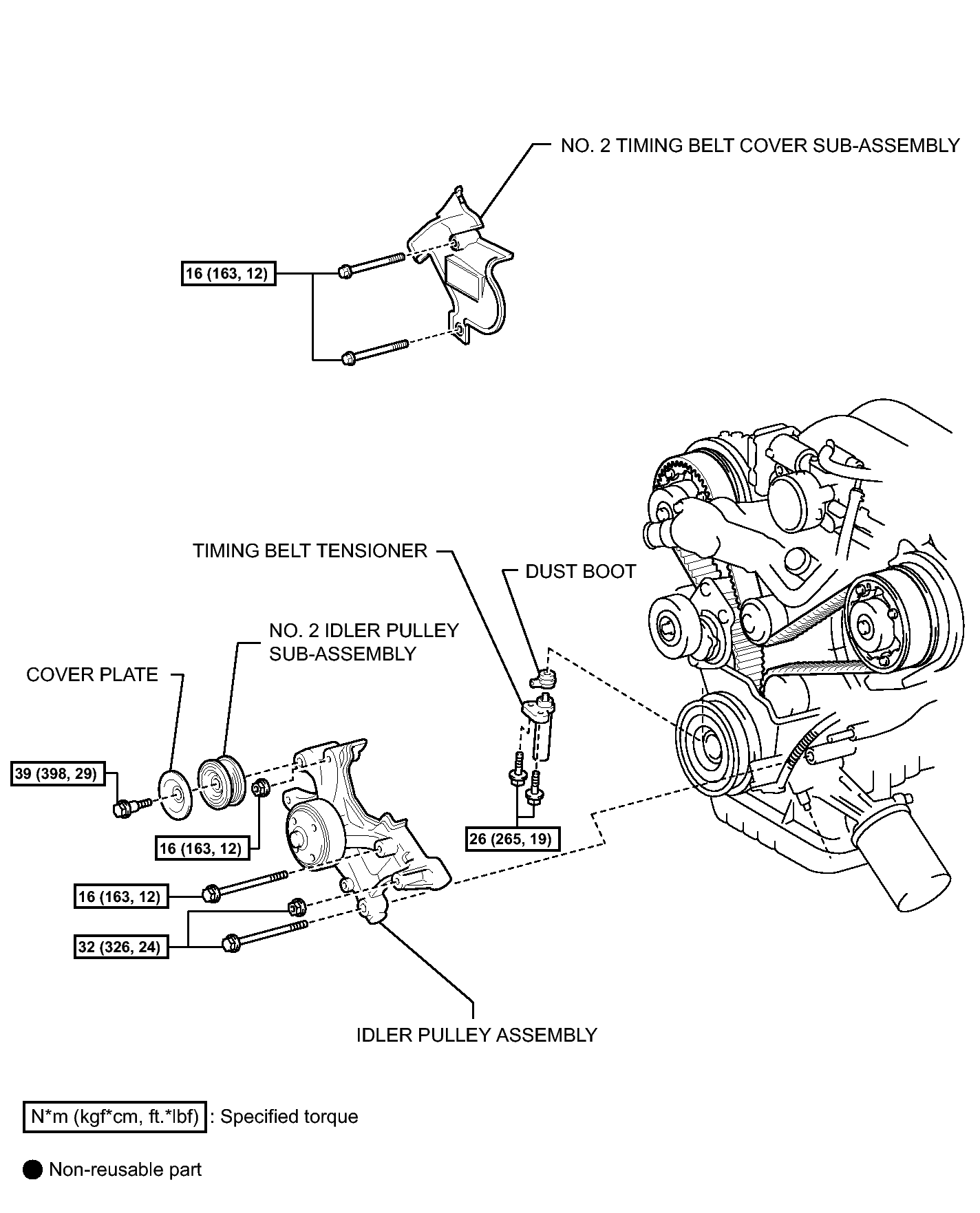

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 11)
GTY147124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

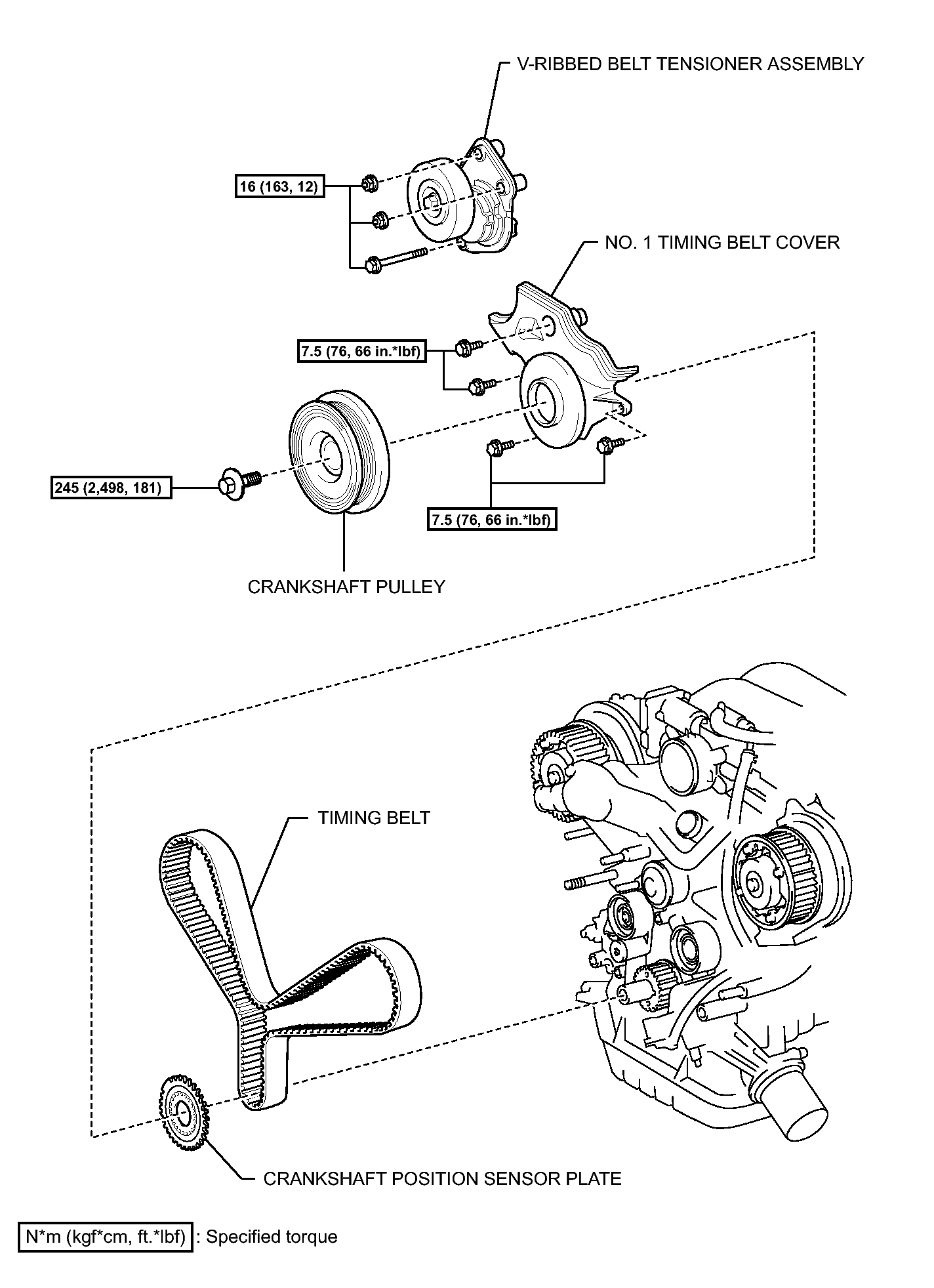

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 11)
GTY147125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

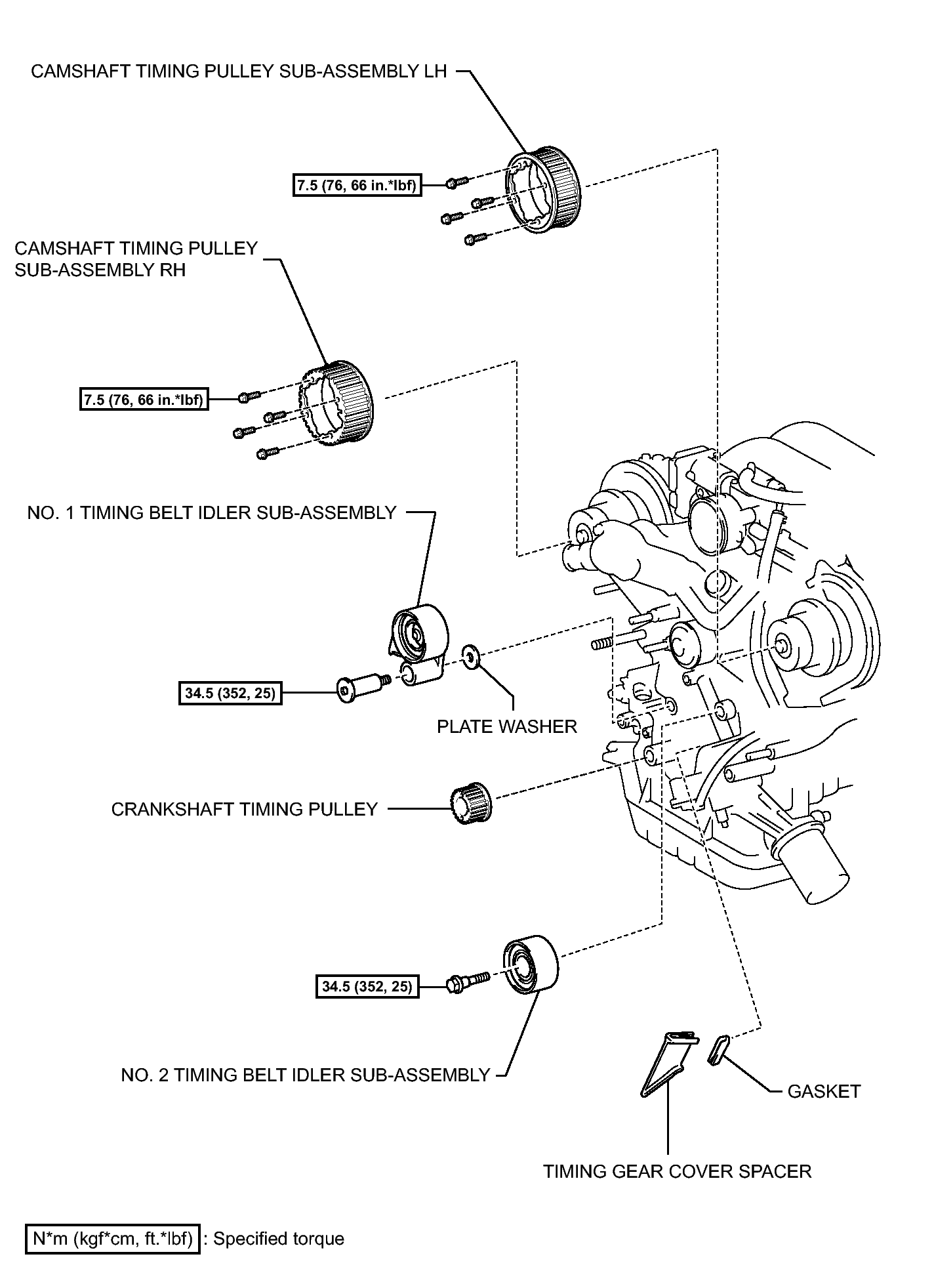

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 11)
GTY147126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

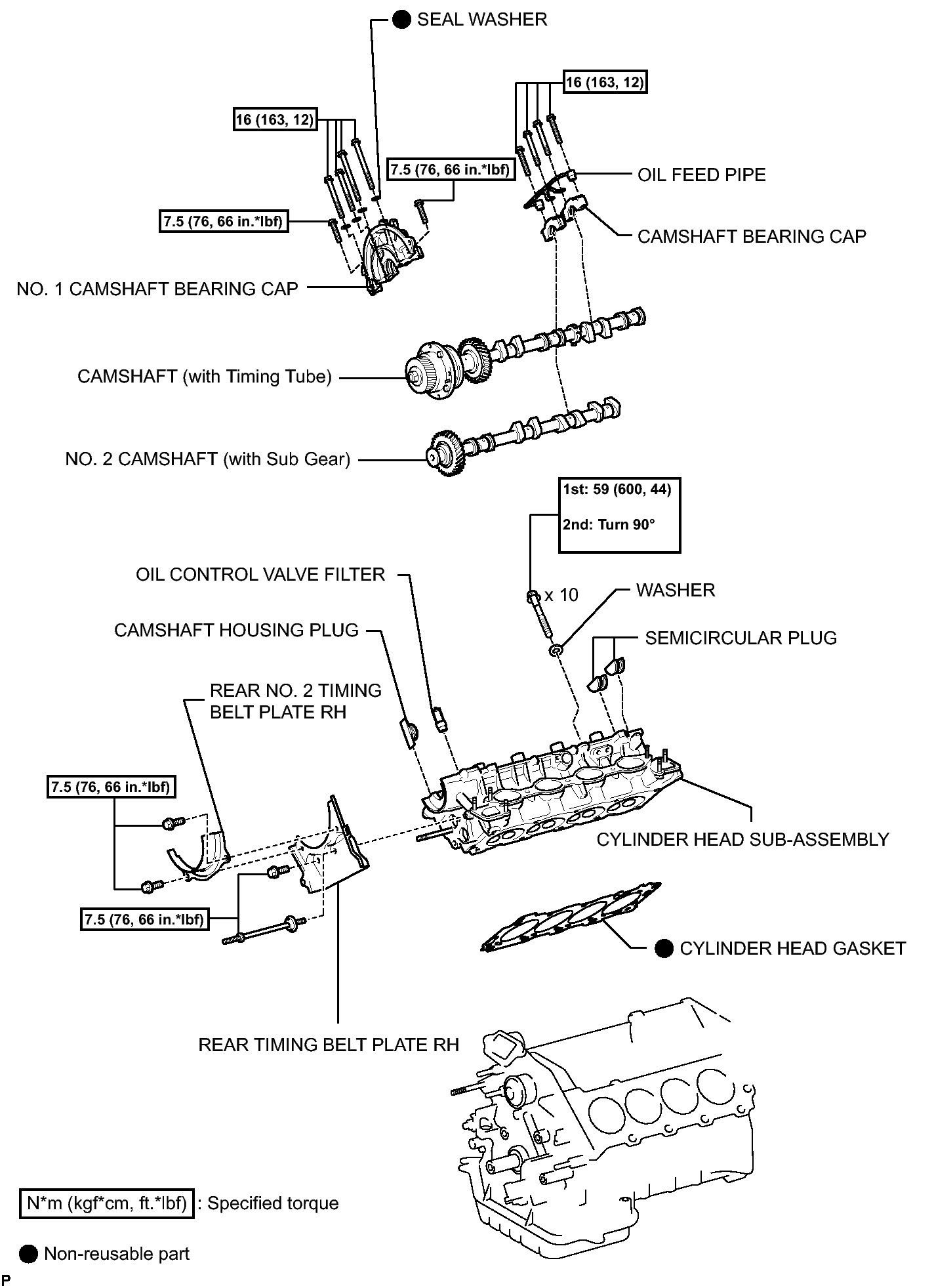

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 11)
GTY147127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

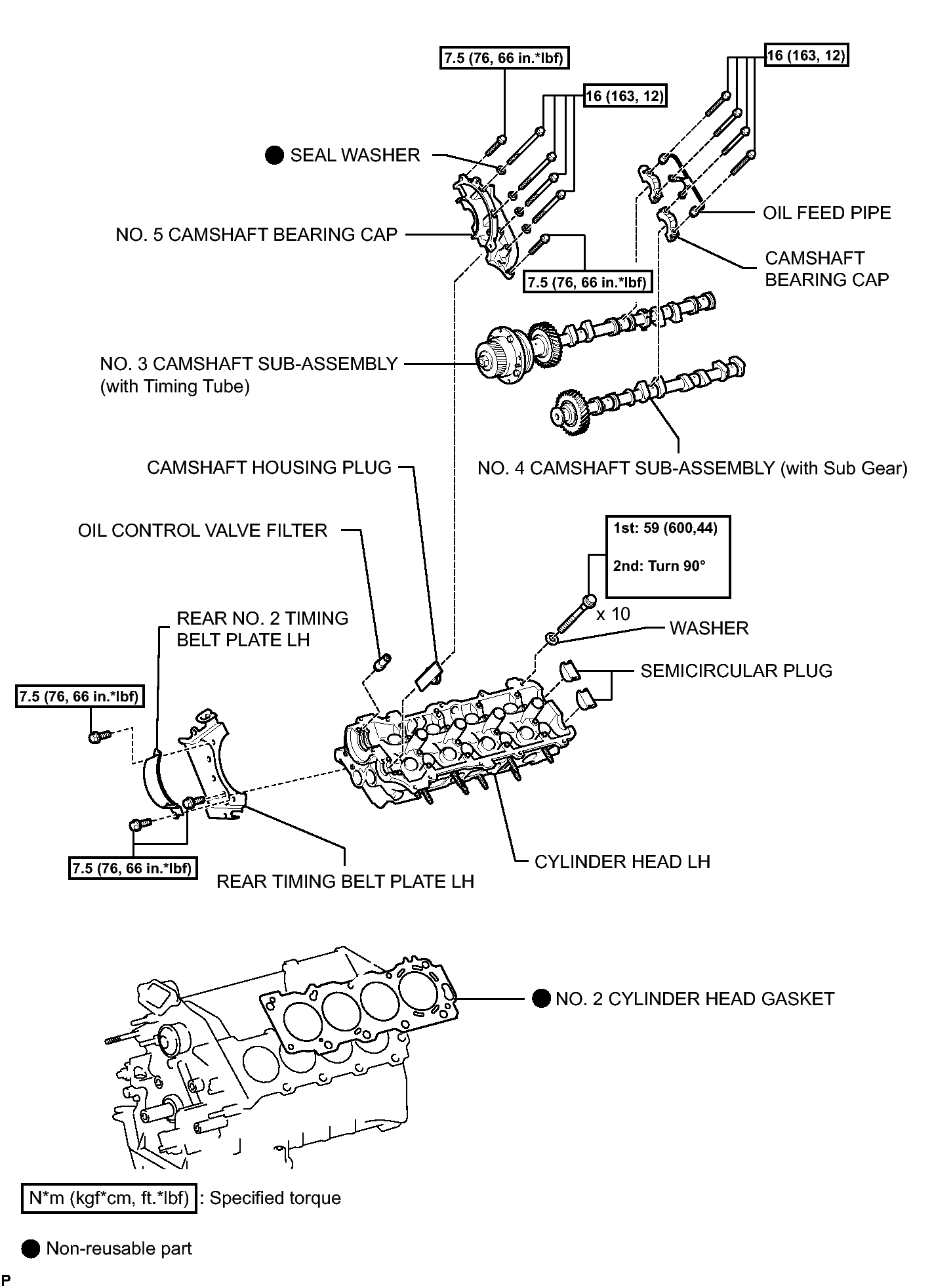

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 11)
GTY147128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

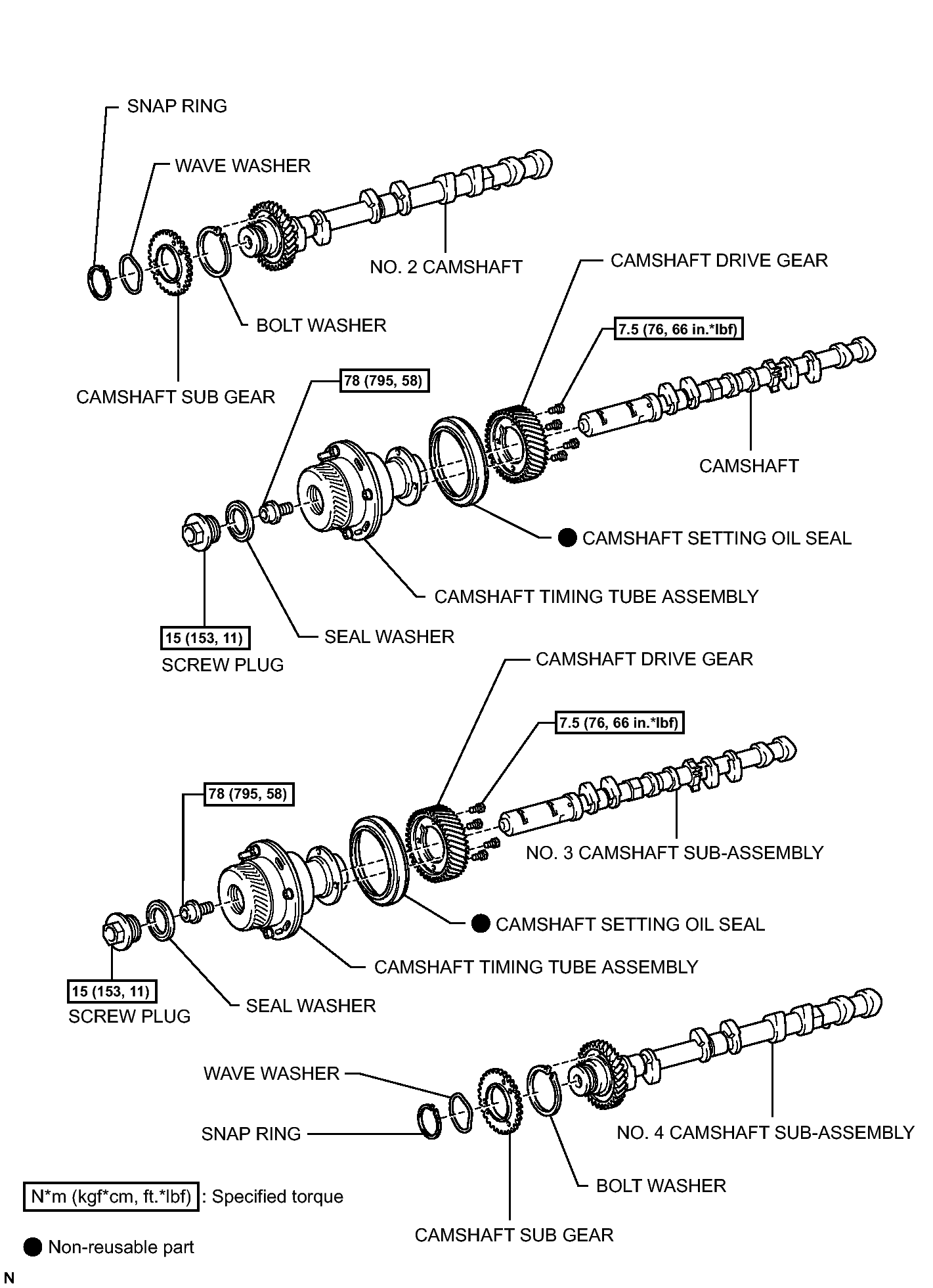

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 11)
GTY145344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

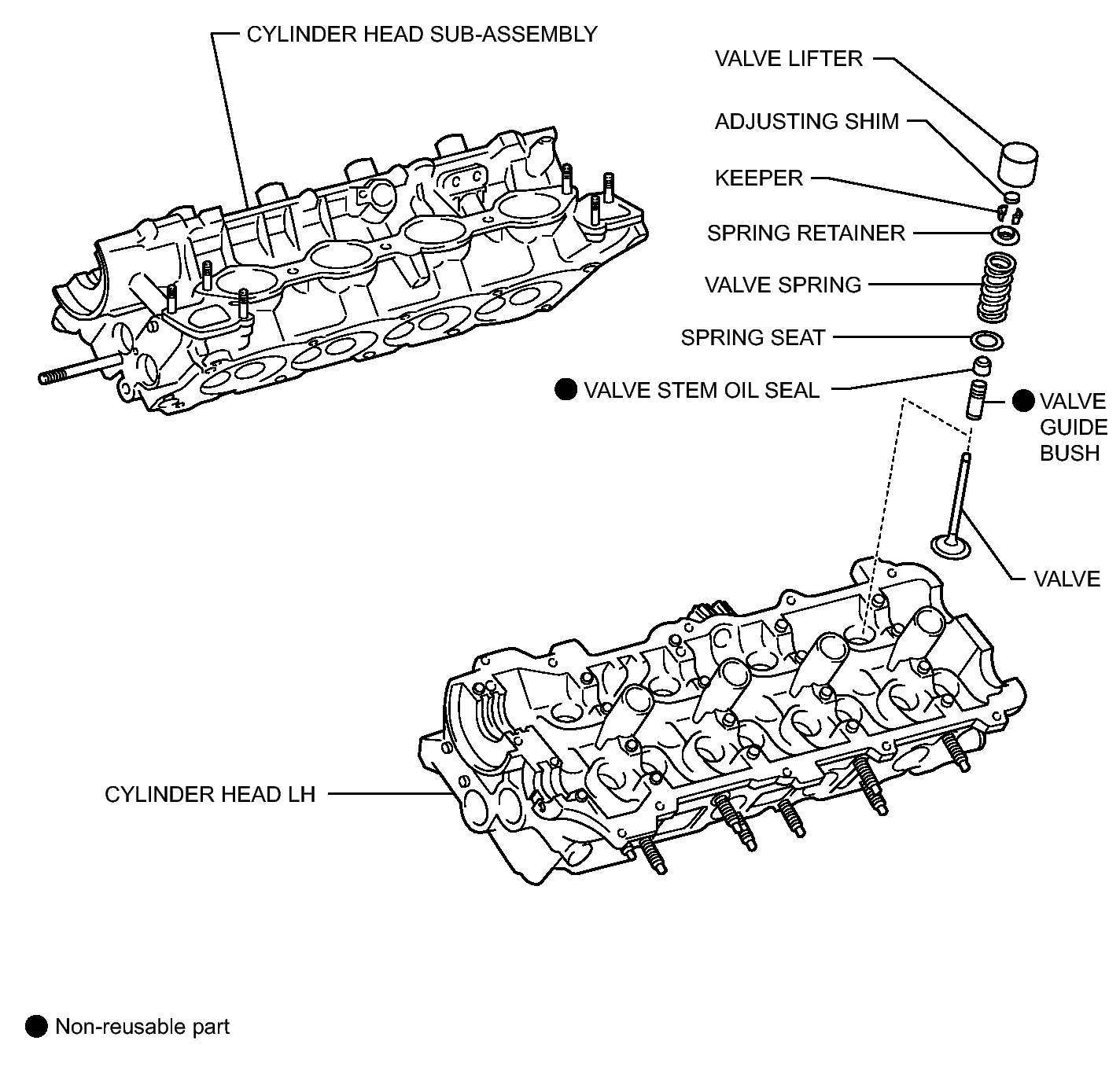

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (8 Of 11)
GTY147021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

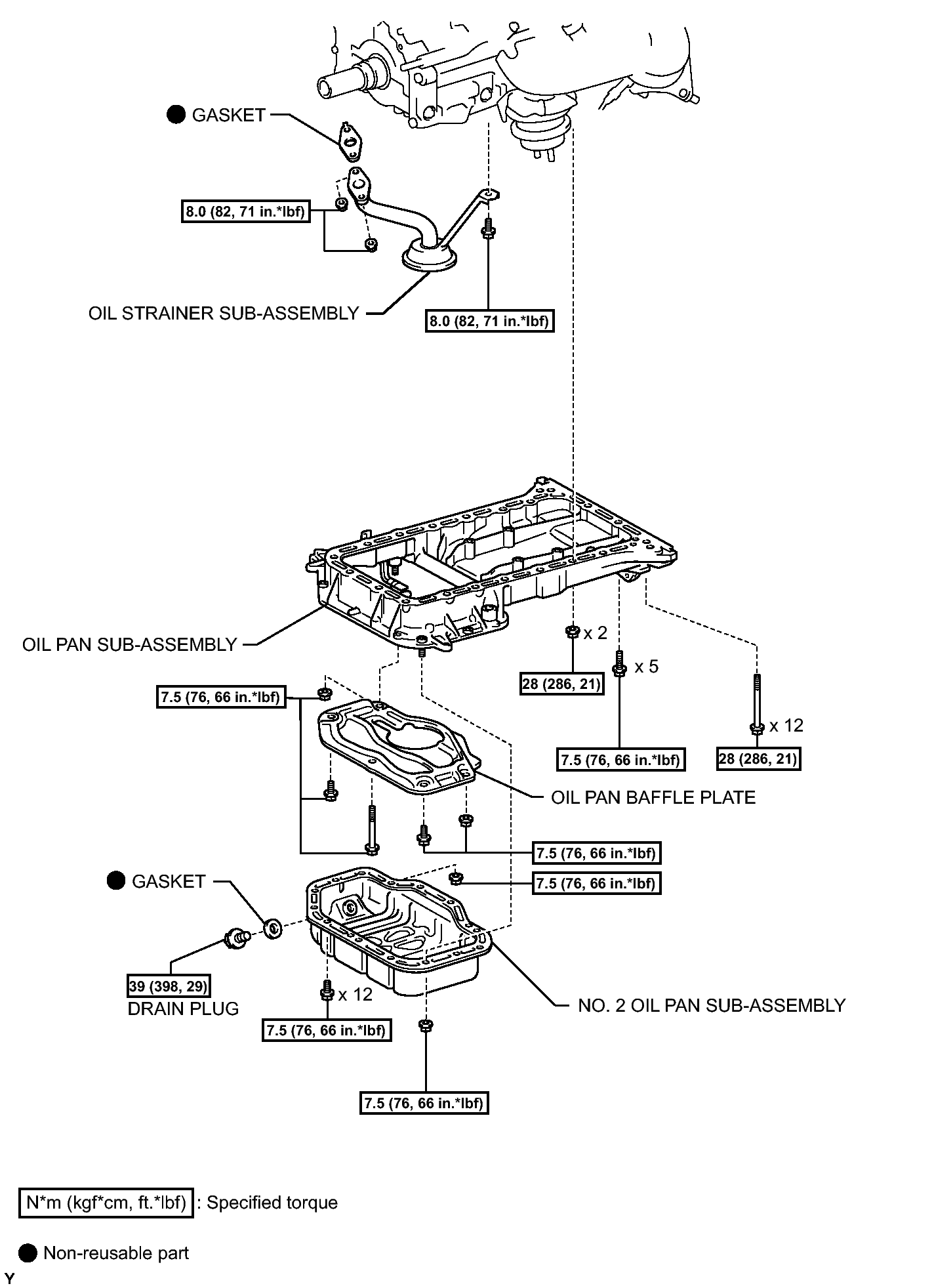

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (9 Of 11)
GTY134387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

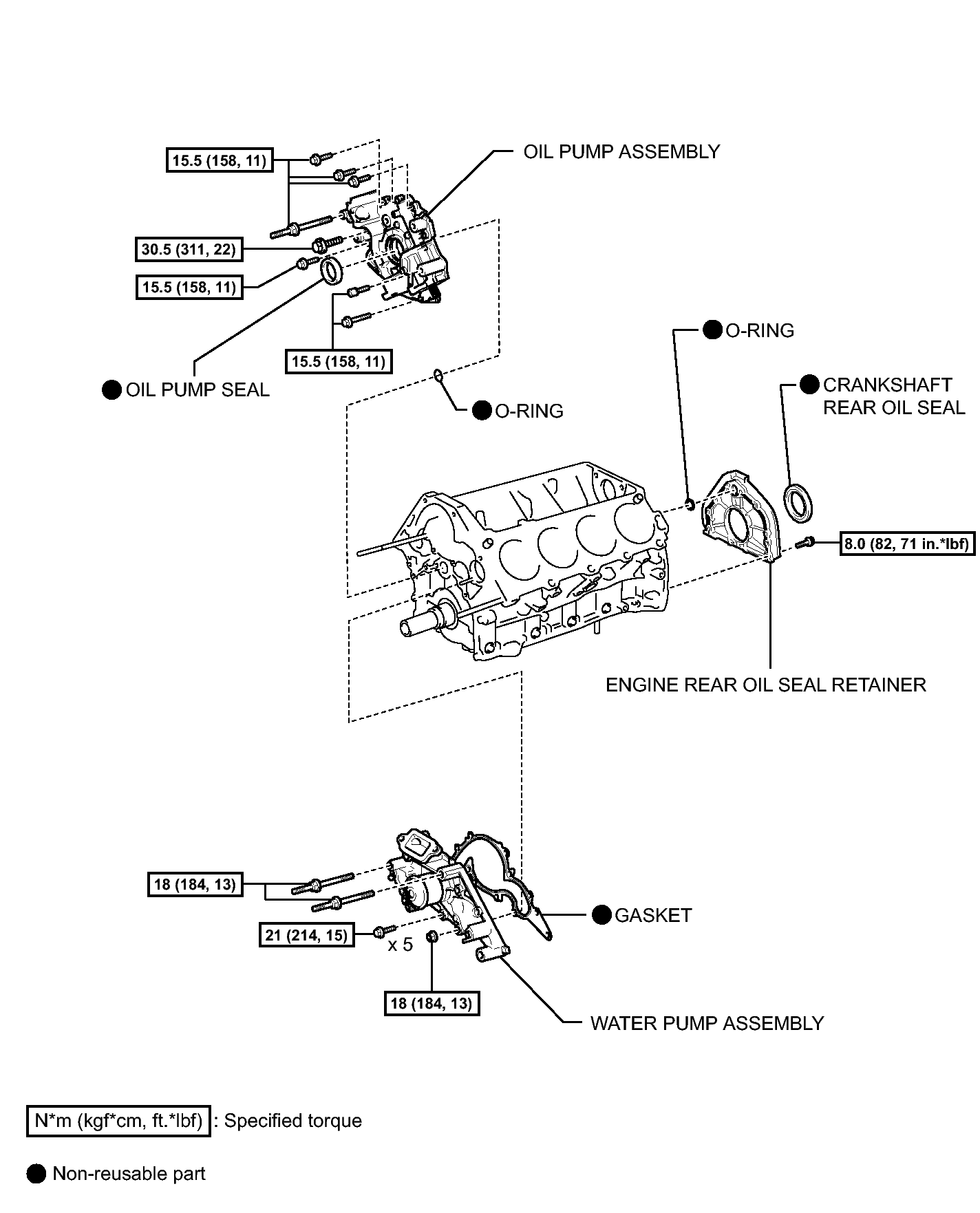

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (10 Of 11)
GTY147130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

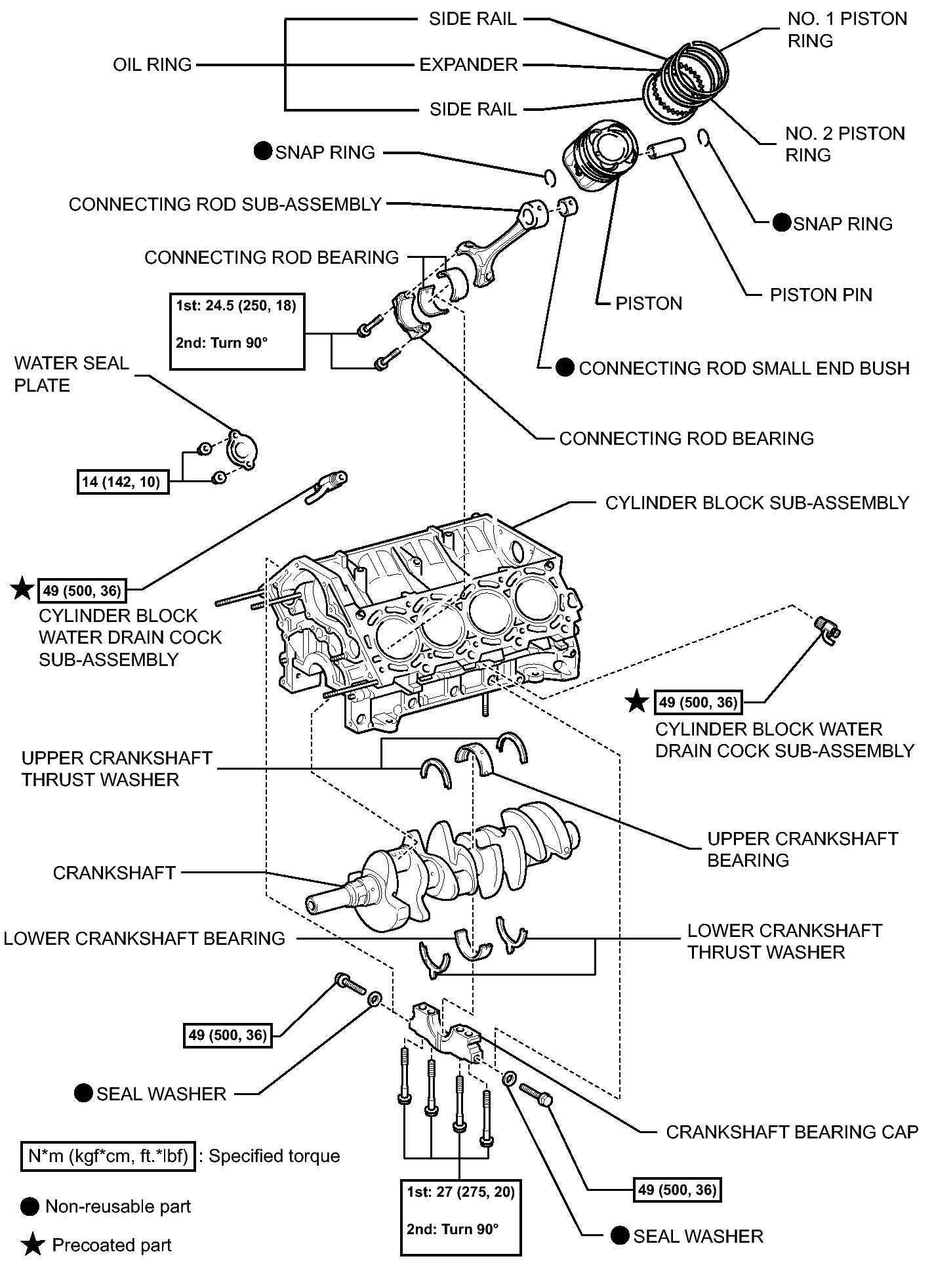

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (11 Of 11)
GTY147175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
