System Diagram

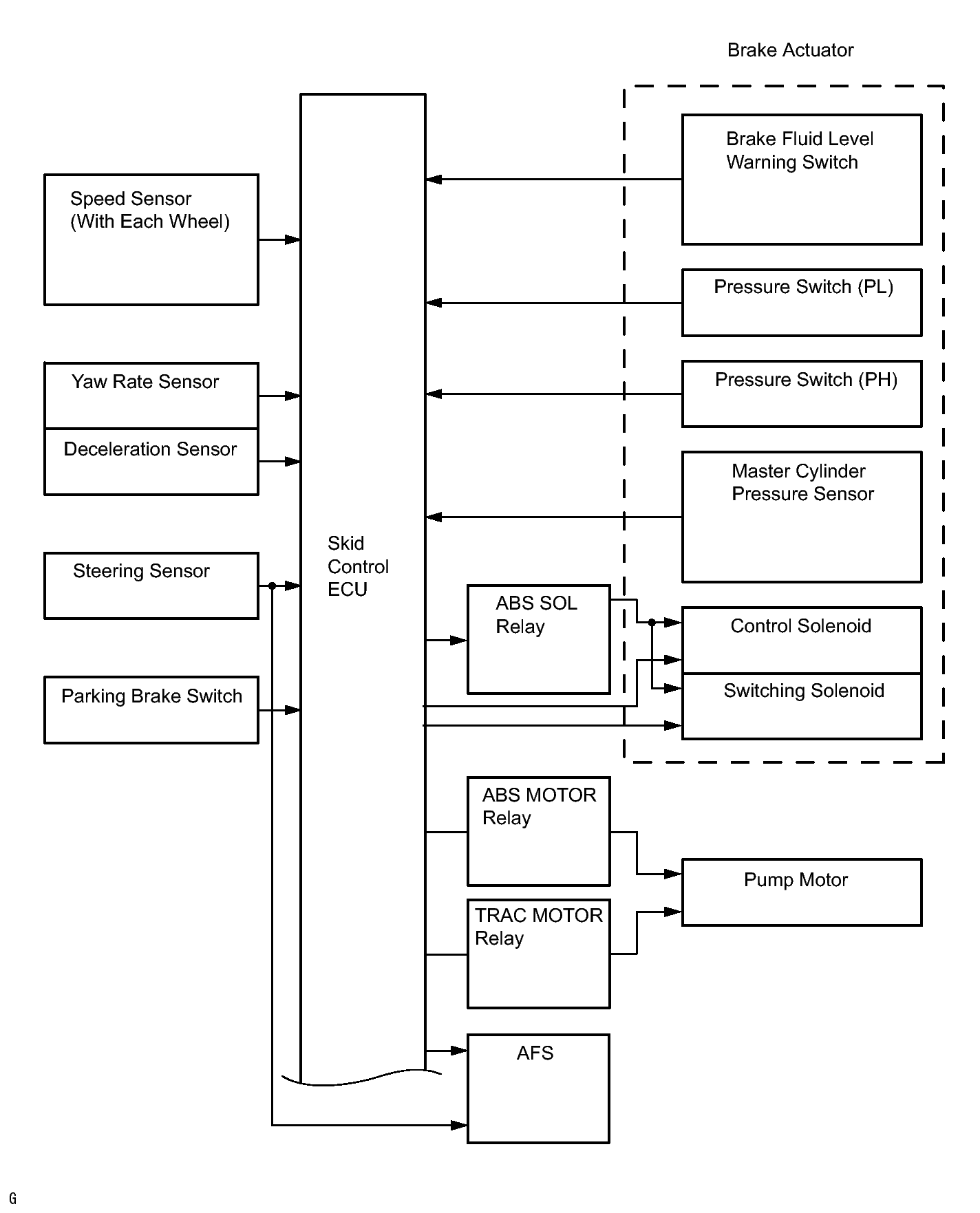

Fig 1: Vehicle Stability Control System - System Diagram (1 Of 2)
GTY128436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

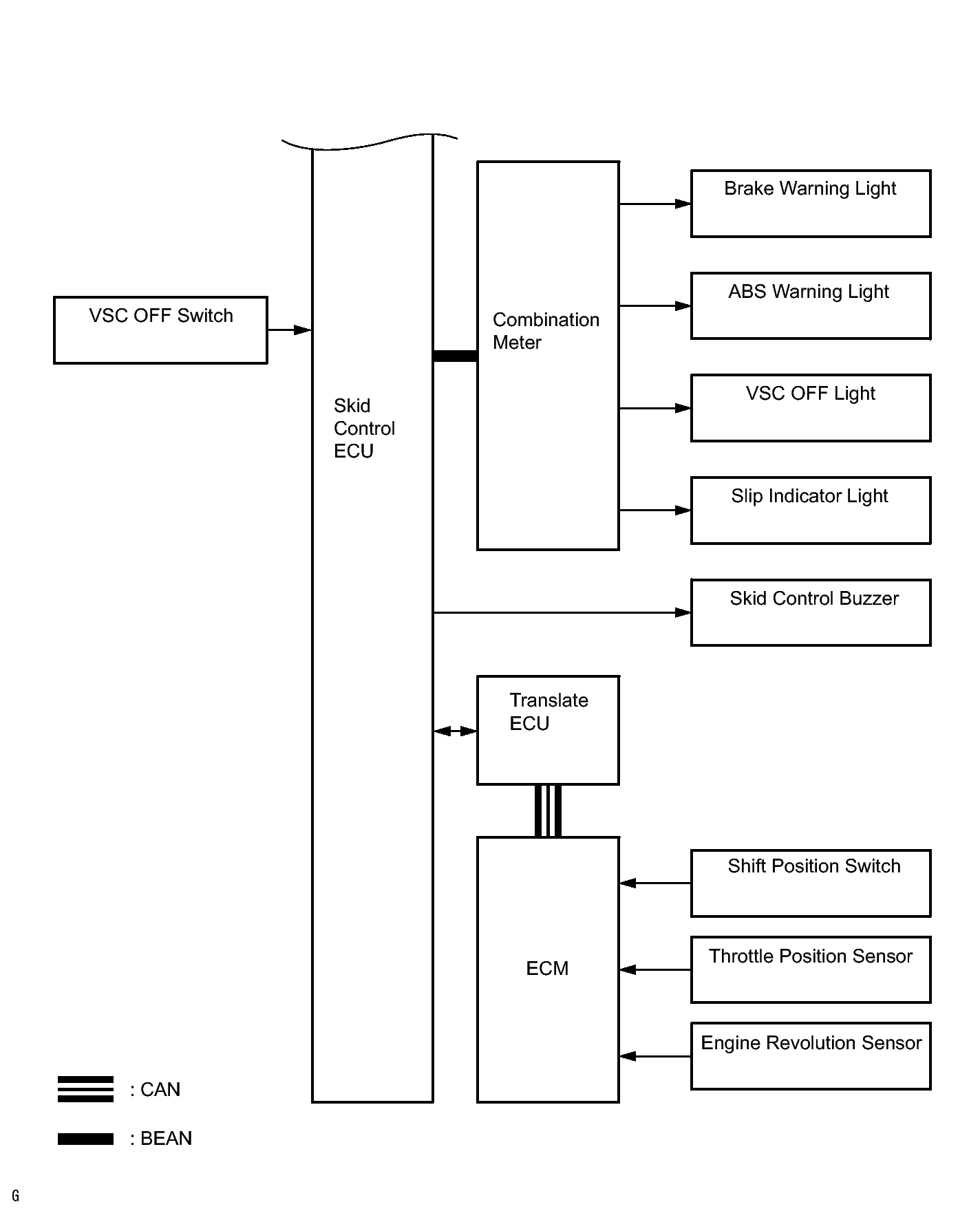

Fig 2: Vehicle Stability Control System - System Diagram (2 Of 2)
GTY110575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
