Mirror Retract Switch Circuit: Wiring Diagram

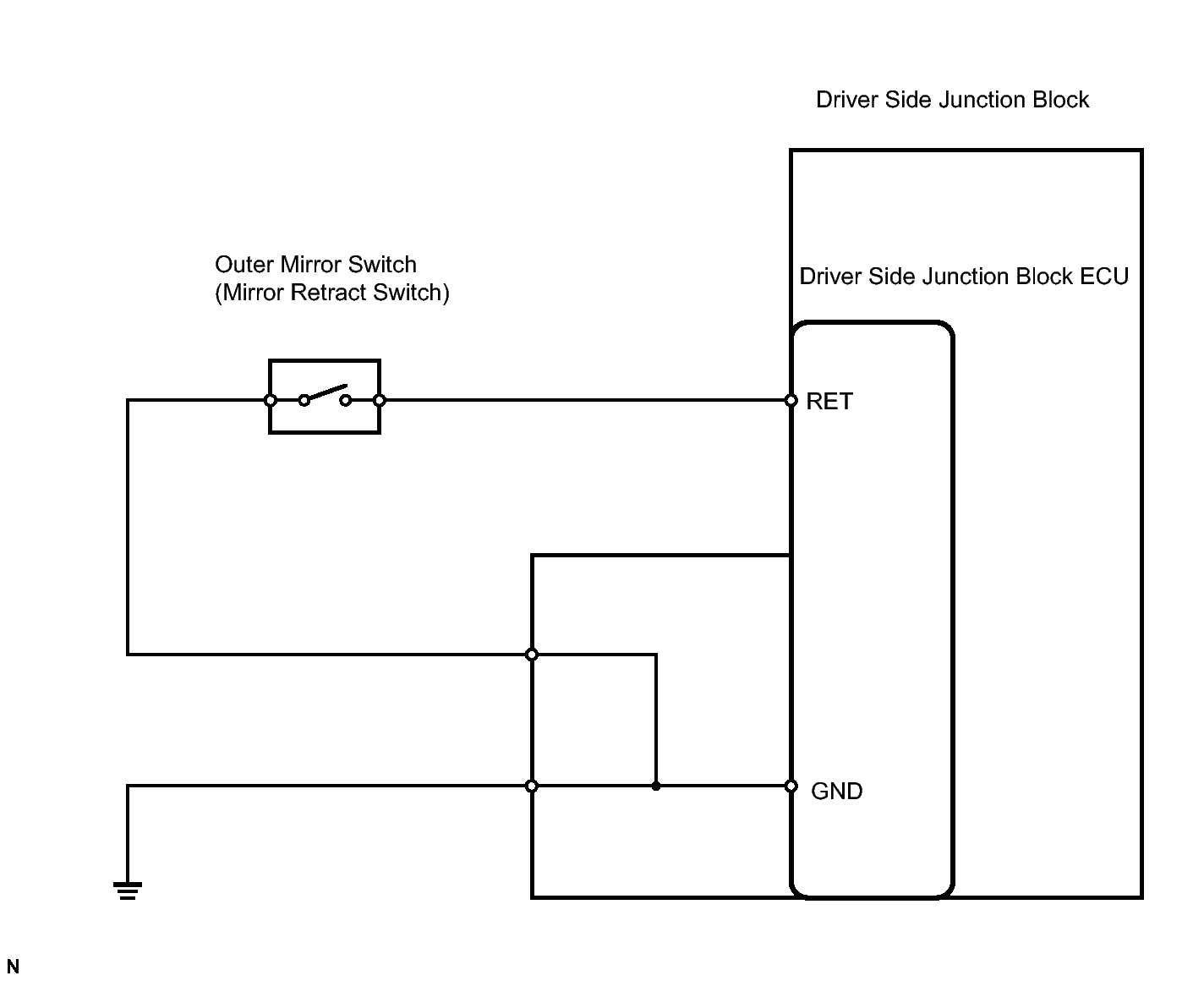

Fig 1: Mirror Retract Switch Circuit - Wiring Diagram

GTY128463

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
