Rear Window Defogger System does not Operate: Wiring Diagram

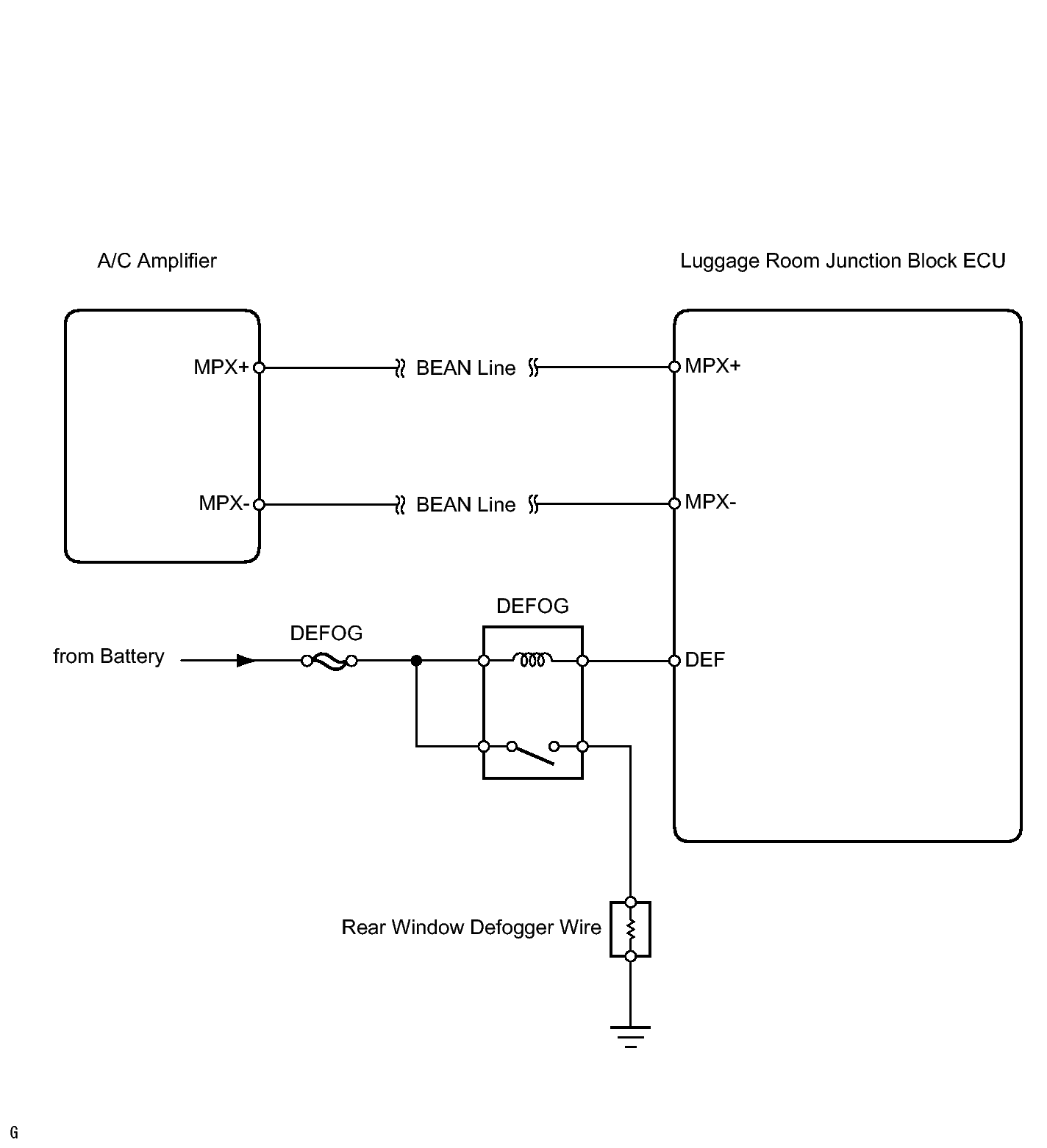

Fig 1: Rear Window Defogger - Wiring Diagram

GTY140852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
