Pattern Select Switch Snow Mode Circuit: Wiring Diagram

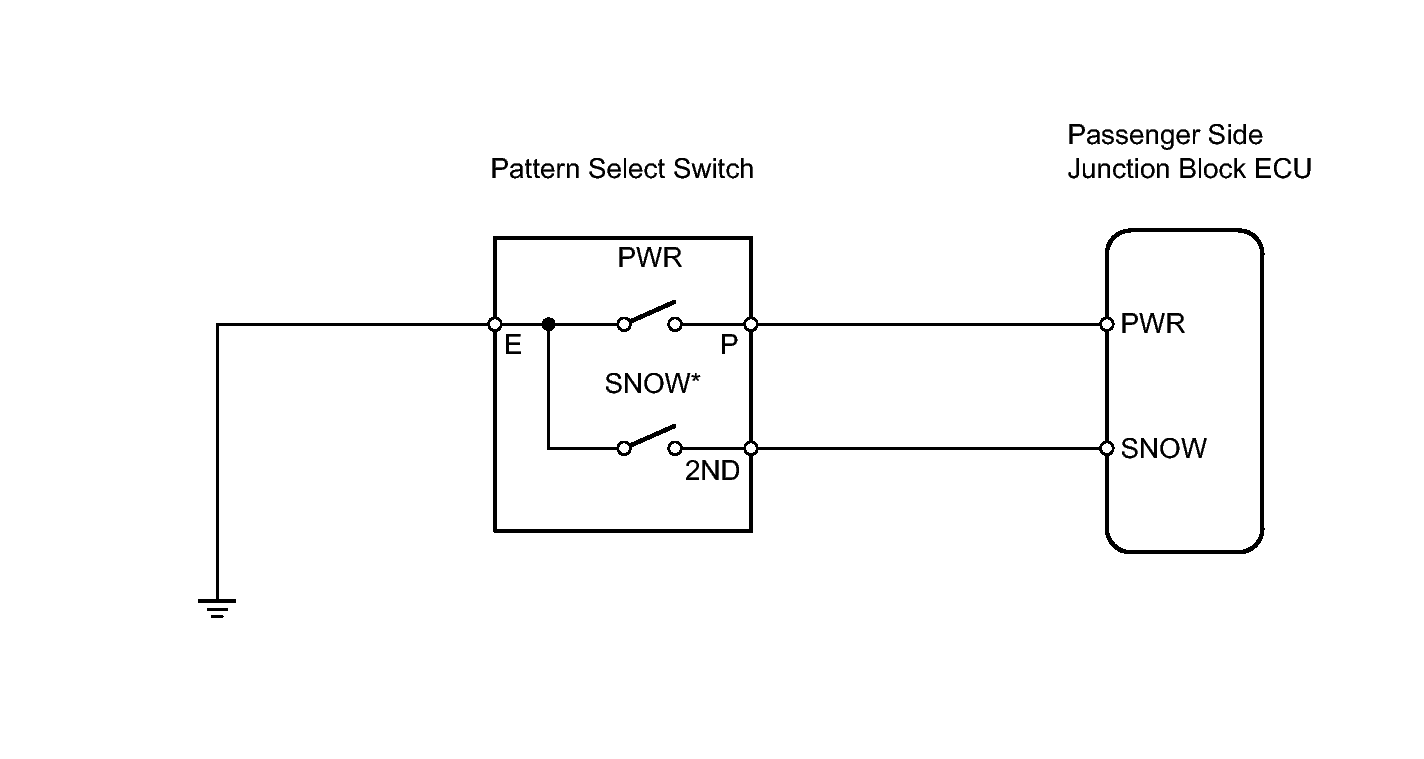

Fig 1: Pattern Select Switch And Passenger Side Junction Block ECU - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: Pattern Select Switch (ECT SNOW Switch)

When the ECT SNOW switch is pushed, the switch contact is made and the ECT SNOW mode is selected.

To cancel the ECT SNOW mode, push the ECT SNOW switch again.

The ECT SNOW mode is automatically canceled when the ignition switch is turned OFF.
