Pattern Select Switch Power Mode Circuit: Wiring Diagram

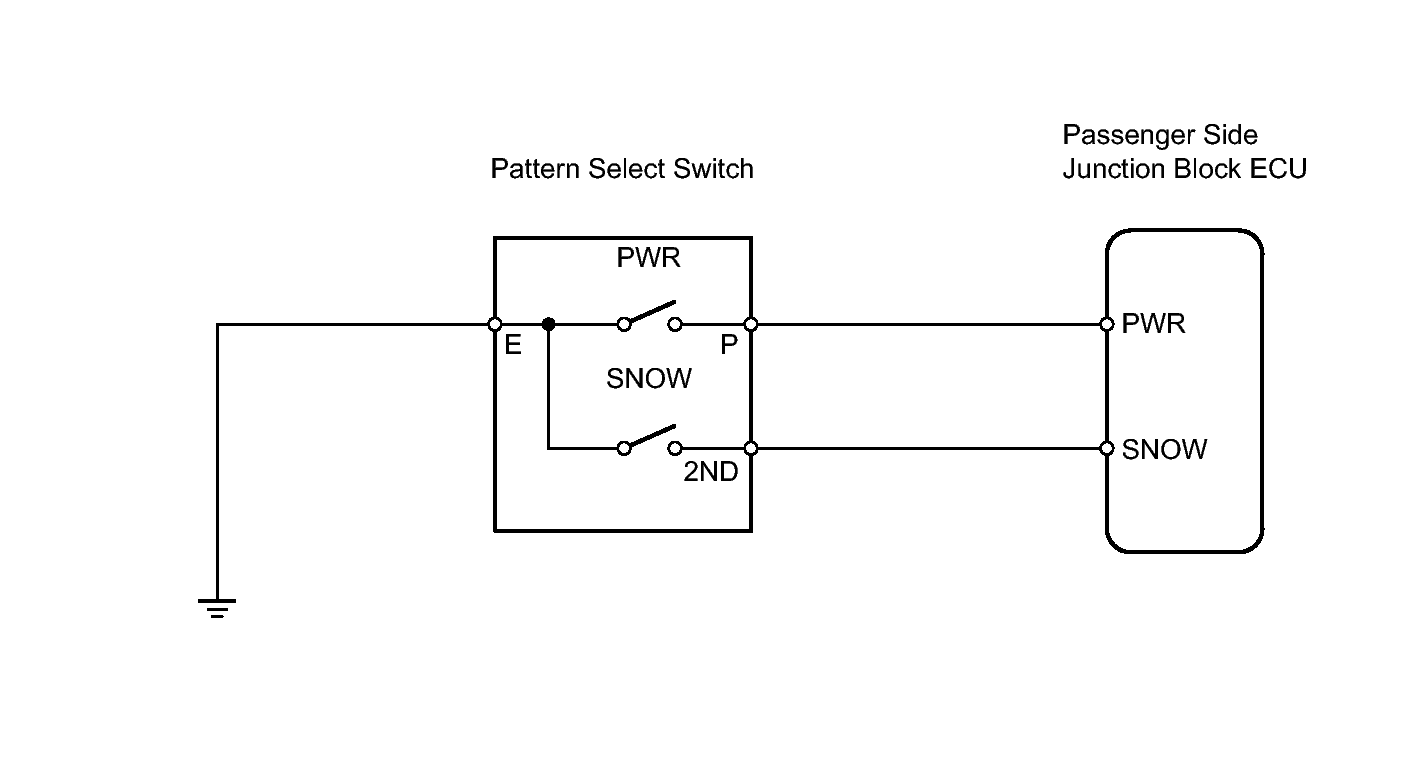

Fig 1: Pattern Select Switch And Passenger Side Junction Block ECU - Wiring Diagram

GTY132924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
