DTC B1771: Passenger Side Buckle Switch Circuit Malfunction: Wiring Diagram

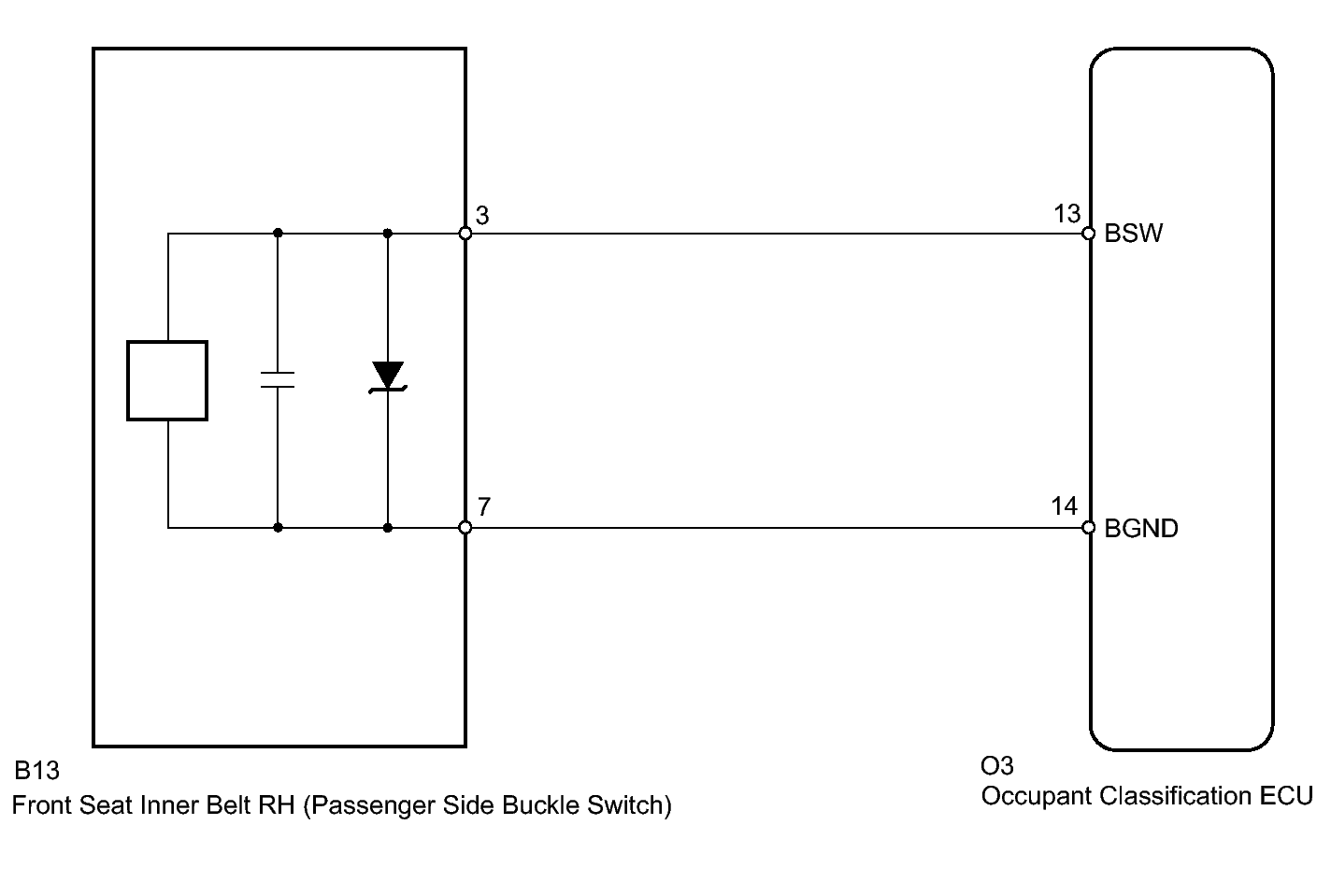

Fig 1: Passenger Side Buckle Switch Wiring Diagram

GTY121870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
