DTC B1233: Jam Protection Limit Switch Circuit on Passenger Door; DTC B1234: Jam Protection Pulse Switch Circuit on Passenger Door: Wiring Diagram

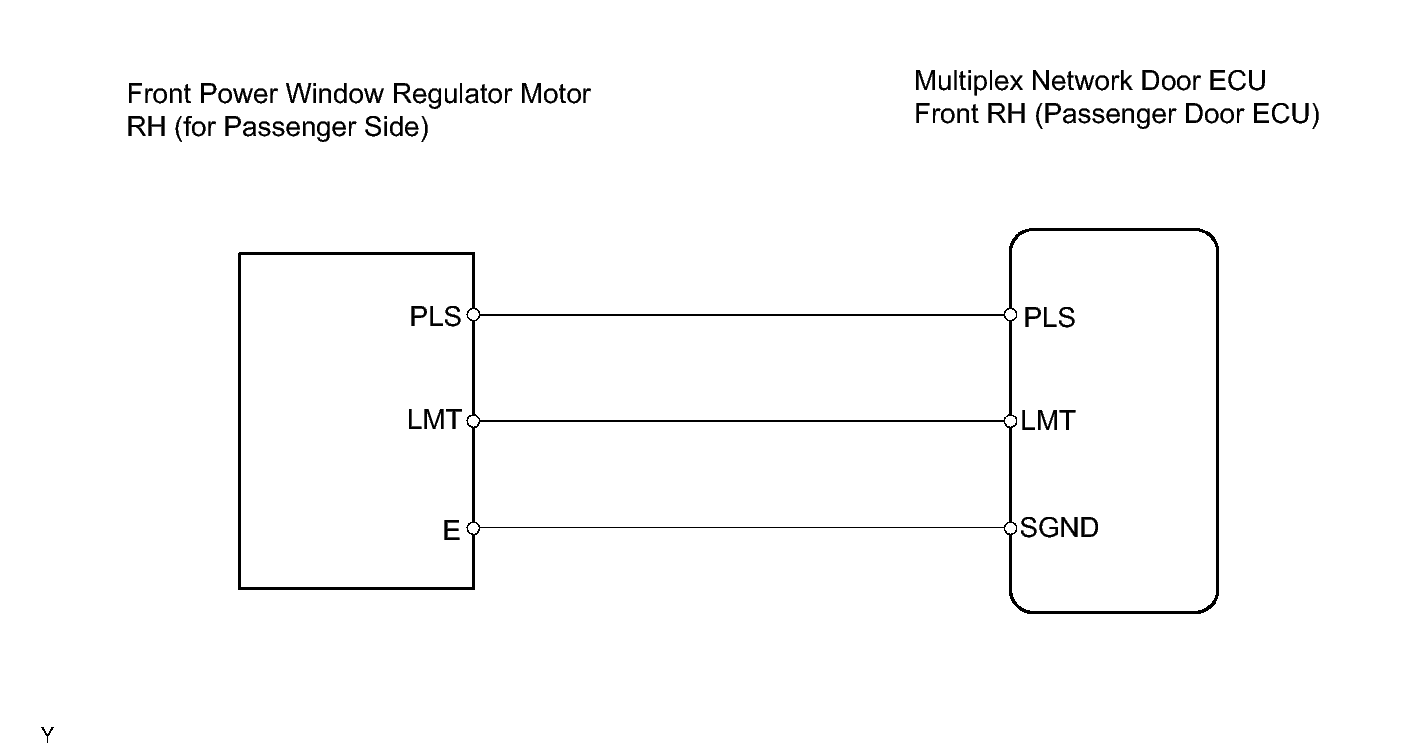

Fig 1: Jam Protection Limit Switch Circuit On Passenger Door - Wiring Diagram
GTY120336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
