Mute Signal Circuit between Stereo Component Amplifier Assembly and Navigation ECU: Wiring Diagram

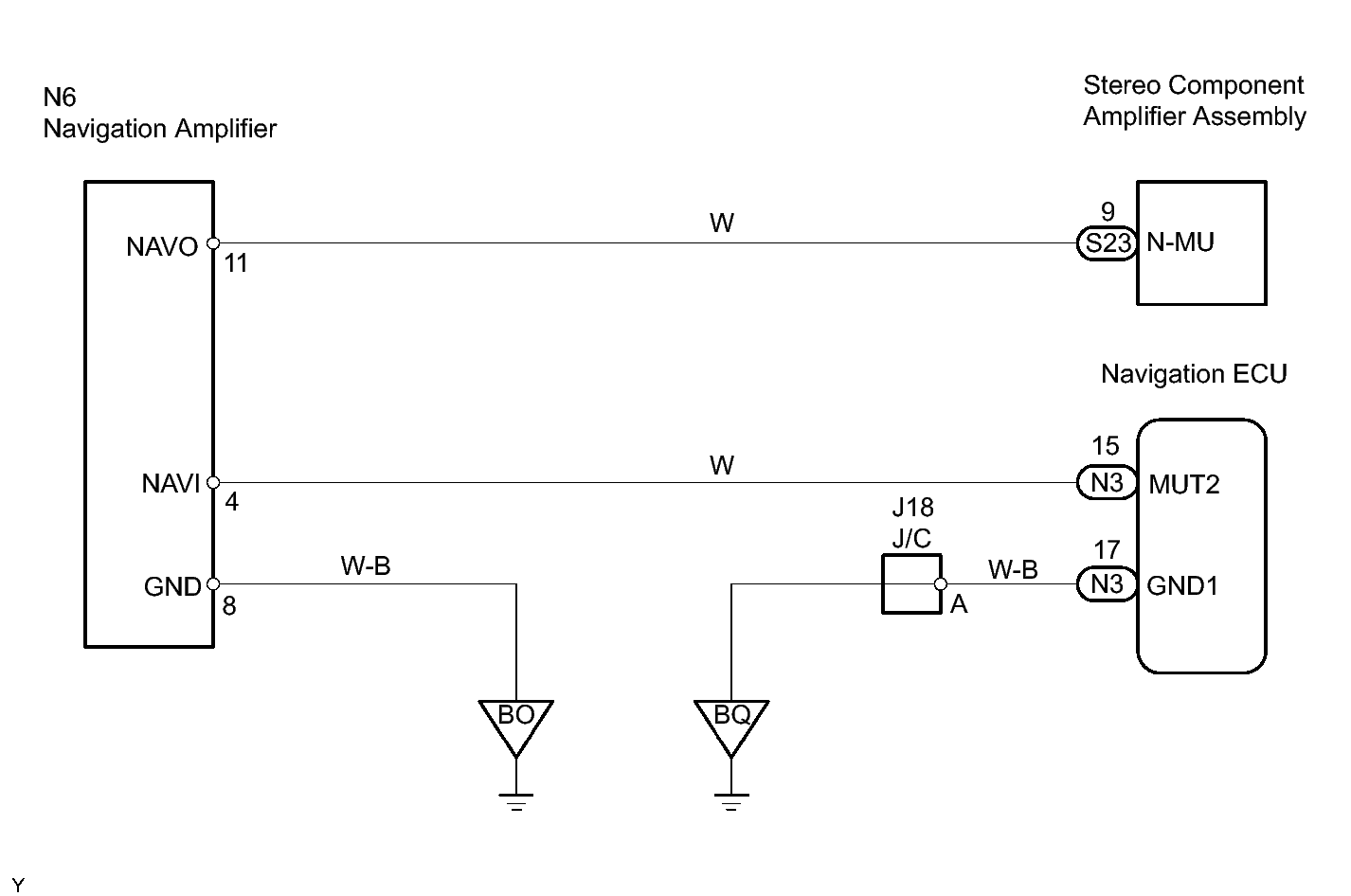

Fig 1: Navigation Amplifier, Stereo Component Amplifier, & Navigation ECU - Wiring Diagram
GTY121683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
