Map Disc cannot be Inserted: Procedure

1. Check that the map disc is not deformed or cracked.

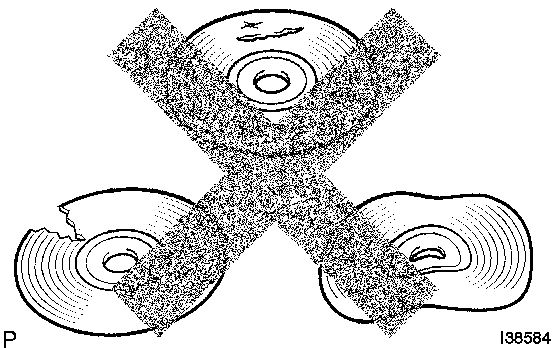

   Fig 1: Checking Map Disc for Cracking Or Deformation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   No deformations or cracks on map disc.

NG → REPLACE MAP DISC

OK: Go to next step

1. Check that the "PUSH" indicator near the disc slot turns on.

   OK

   Indicator turns on.

NG → PRESS EJECT SWITCH TO EJECT DISC

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
