Display does not Dim when Light Control Switch is Turned ON: Procedure

1. Enter the display adjustment screen by pressing the "DISPLAY" switch.

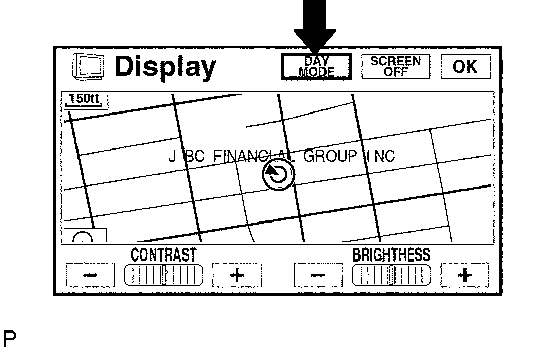

   Fig 1: Identifying Day Mode On Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the light control switch to TAIL.
3. Check if "DAY MODE" on the display adjustment is ON.

   OK

   "DAY MODE" is ON.

OK → TURN FORCED "DAY MODE" SETTING OFF

NG: Go to next step

1. Enter the Display Check mode's Vehicle Signal Check Mode. Refer to DISPLAY CHECK MODE .
   Fig 2: Vehicle Signal Check Mode Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Cover the automatic light control sensor on the instrument panel with a cloth.
3. Set the instrument panel light control to less than maximum (to activate the dimmer function that works when the light control switch is in the TAIL position).
4. Check that the display changes between DIM and BRIGHT according to the light control switch operation.

   OK

   Light Control Switch Condition	Display Condition
   TAIL or HEAD	DIM
   OFF	BRIGHT

   HINT:

   The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK → REPLACE MULTI-DISPLAY
