SC 430
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation (Diagnostics & Symptom Tests)
>>
Navigation System
>>
Display Signal Circuit between Navigation ECU and Multi-display
>>
Wiring Diagram
Display Signal Circuit between Navigation ECU and Multi-display: Wiring Diagram

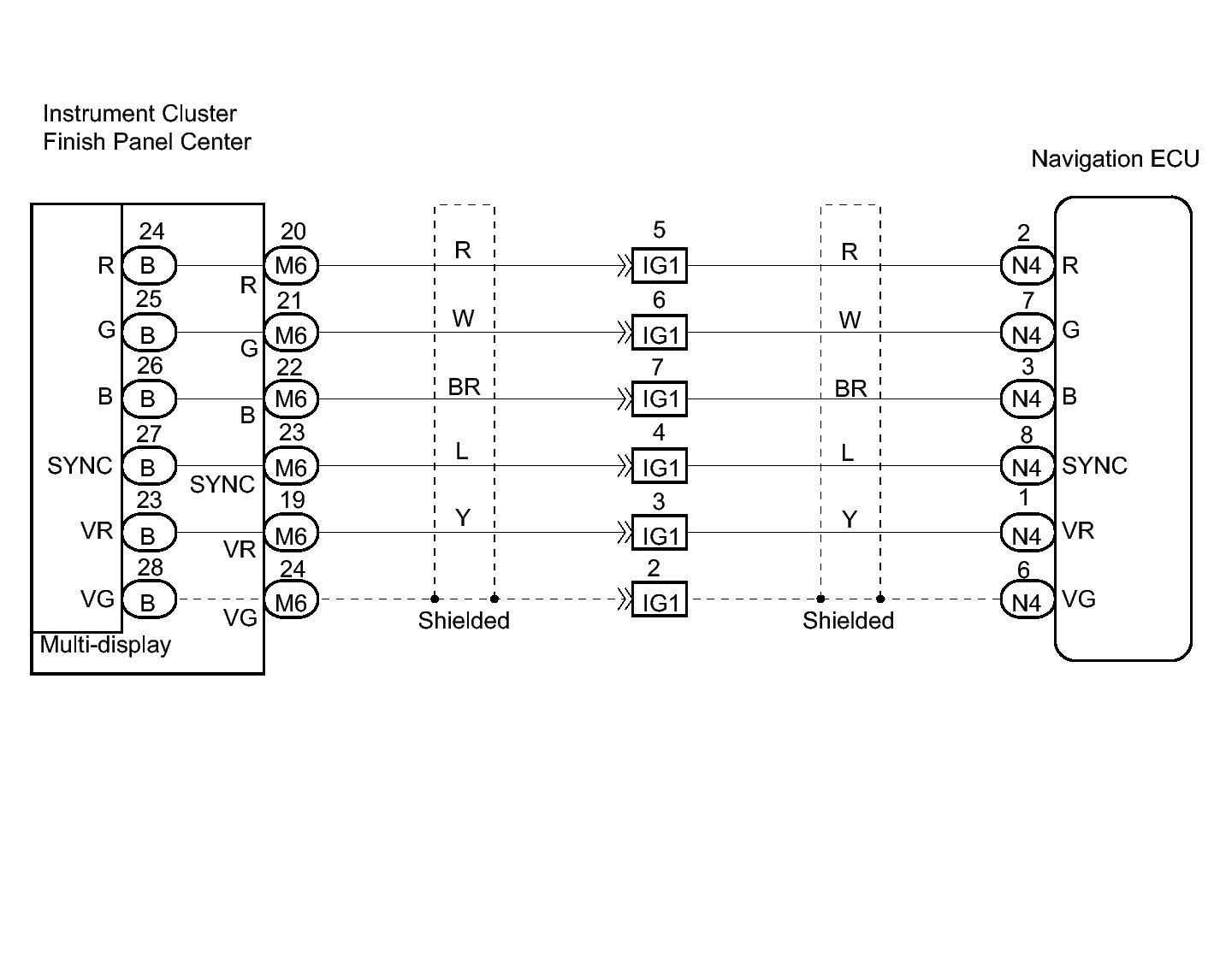

Fig 1: Instrument Cluster & Navigation ECU - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
