MULTI-DISPLAY (w/ Navigation System): Installation: Installation

  1. INSTALL MULTI-DISPLAY (CENTER DISPLAY)

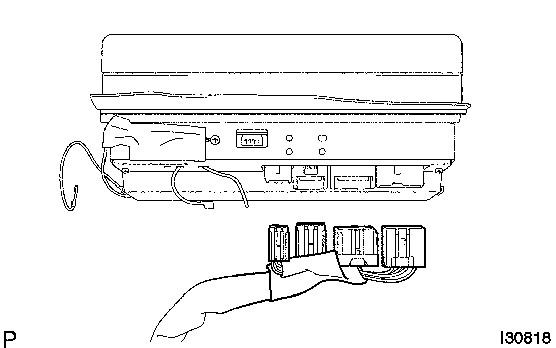

    Fig 1: Identifying Wiring Harness Clamp And Screws
    GTY155924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the multi-display.
    2. Connect the 4 connectors and install the clamp.
    3. Install the harness clamp with the 2 screws.
    4. Install the 2 screws.

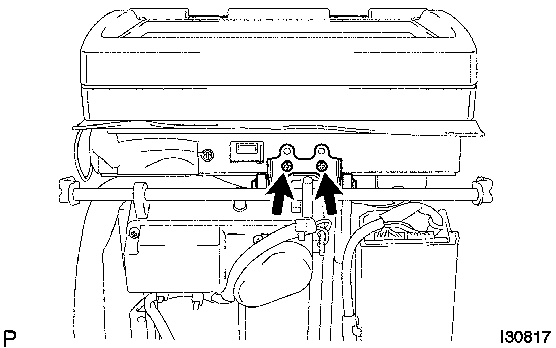

      Fig 2: Identifying Screws
      GTY138607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the No. 2 retainer with the 5 screws.

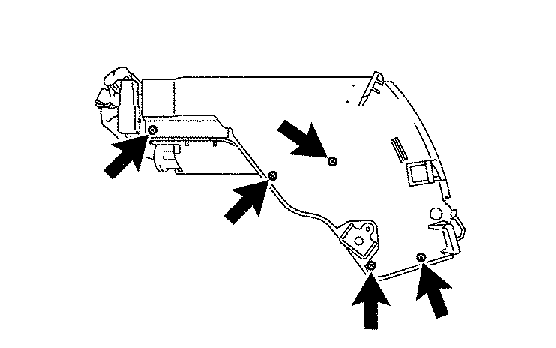

      Fig 3: Locating Instrument Panel Finish Panel No. 2 And Screws
      GTY120212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the No. 1 retainer with the 6 screws.

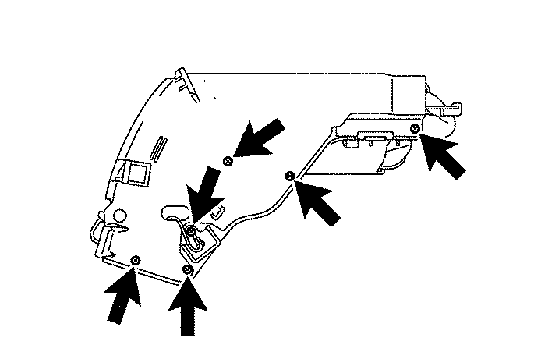

      Fig 4: Locating Instrument Panel Finish Panel No. 1 Retainer And Screws
      GTY120211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the instrument panel finish upper panel with the 4 screws to the both sides.

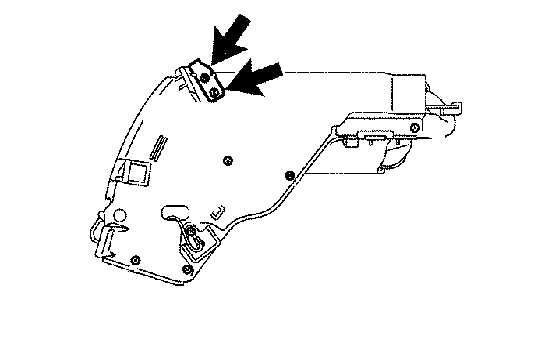

      Fig 5: Identifying Instrument Panel Finish Upper Panel Screws
      GTY120210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

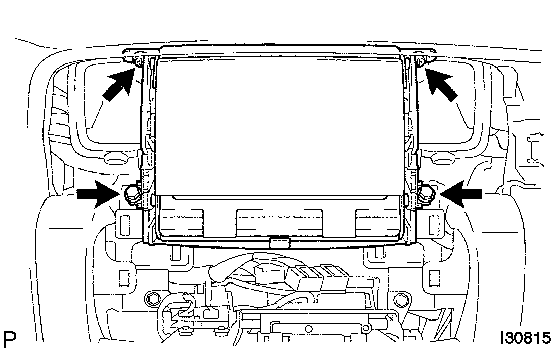

    Fig 6: Identifying Instrument Cluster Finish Panel Bolts And Screws
    GTY155923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connector and detach the clip.
    2. Install the panel with the 2 bolts and 2 screws.
  3. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  4. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY  . Refer to INSTALLATION - Step 14
  5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY  . Refer to INSTALLATION - Step 17
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization . Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  8. CHECK SRS WARNING LIGHT  . Refer to INSTALLATION - Step 6


  1. INSTALL MULTI-DISPLAY (CENTER DISPLAY)
    Fig 1: Identifying Wiring Harness Clamp And Screws
    GTY155924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the multi-display.
    2. Connect the 4 connectors and install the clamp.
    3. Install the harness clamp with the 2 screws.
    4. Install the 2 screws.
      Fig 2: Identifying Screws
      GTY138607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the No. 2 retainer with the 5 screws.
      Fig 3: Locating Instrument Panel Finish Panel No. 2 And Screws
      GTY120212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the No. 1 retainer with the 6 screws.
      Fig 4: Locating Instrument Panel Finish Panel No. 1 Retainer And Screws
      GTY120211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the instrument panel finish upper panel with the 4 screws to the both sides.
      Fig 5: Identifying Instrument Panel Finish Upper Panel Screws
      GTY120210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    Fig 6: Identifying Instrument Cluster Finish Panel Bolts And Screws
    GTY155923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the connector and detach the clip.
    2. Install the panel with the 2 bolts and 2 screws.
  3. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  4. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY  . Refer to INSTALLATION - Step 14
  5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY  . Refer to INSTALLATION - Step 17
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization . Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  8. CHECK SRS WARNING LIGHT  . Refer to INSTALLATION - Step 6
