Audio And Visual System
>>
Stereo Component Amplifier Power Source Circuit
>>
Wiring Diagram
Stereo Component Amplifier Power Source Circuit: Wiring Diagram

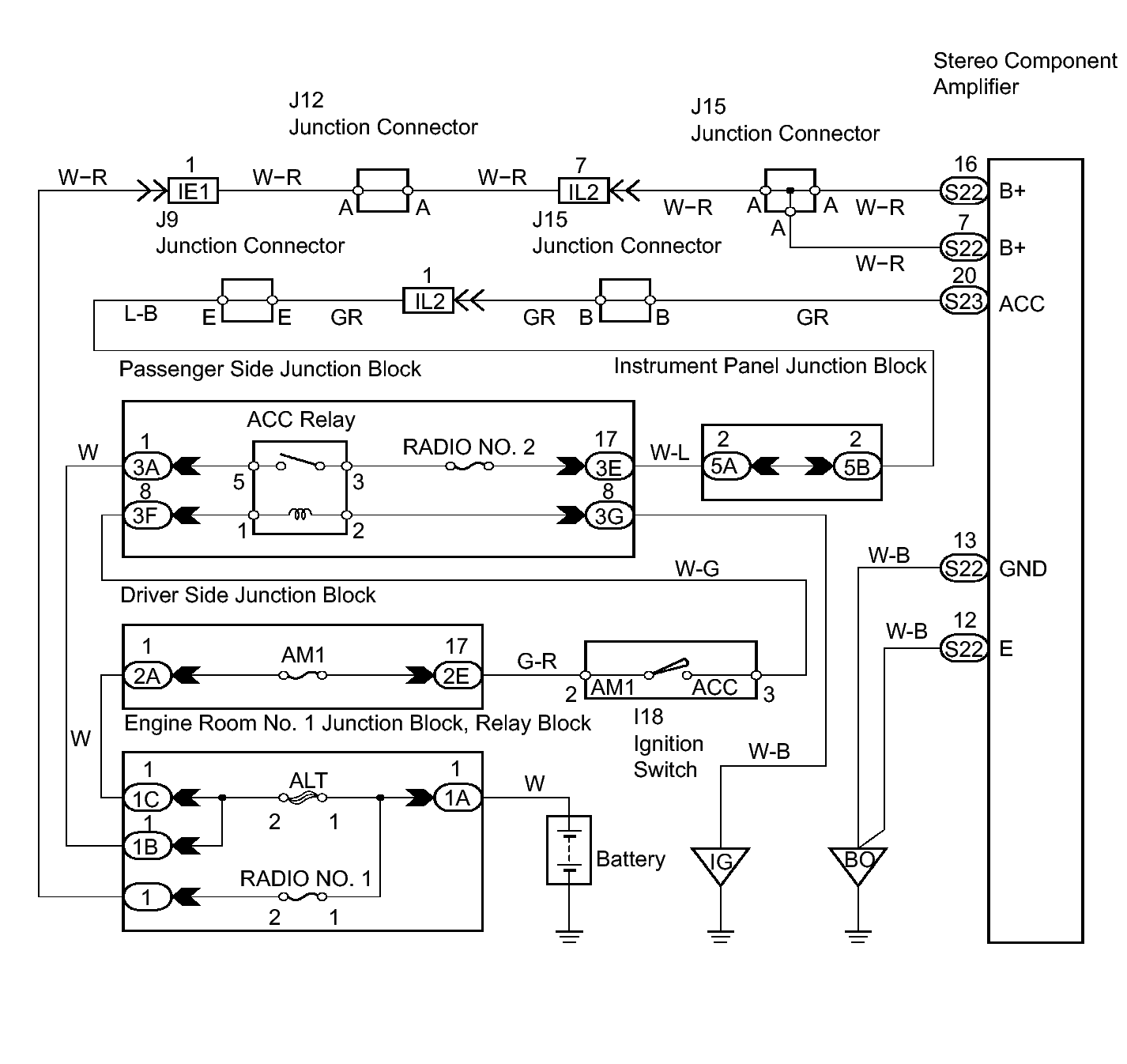

Fig 1: Stereo Component Amplifier Power Source Circuit - Wiring Diagram
